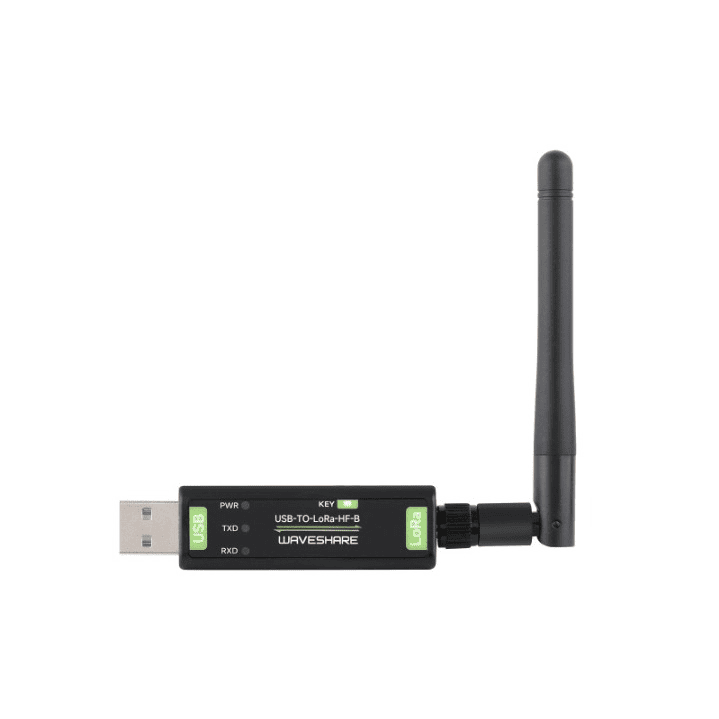

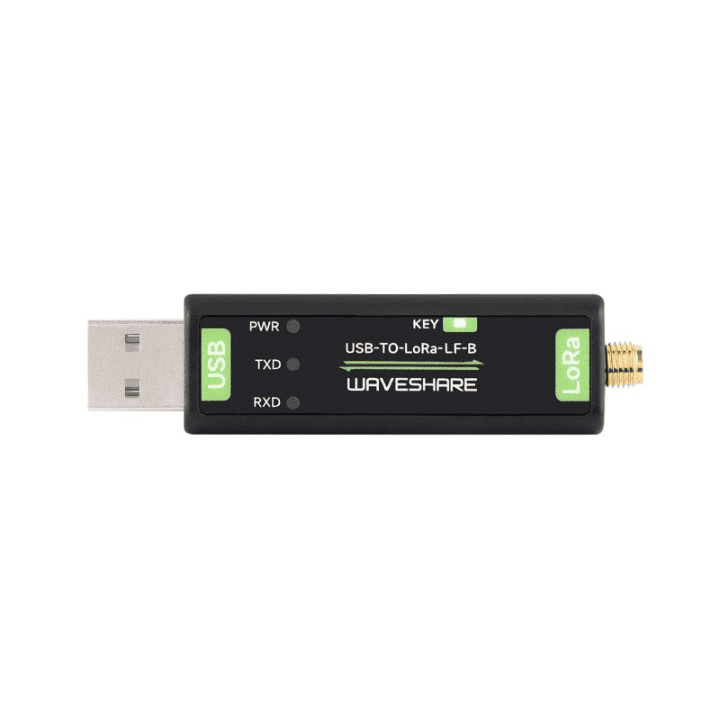

SX1262 Solution, Driver-Free, Multi-System Compatible
Supports Multiple Operating Modes, Portable And Easy To Use
Suitable for data acquisition in industry and agriculture
* for reference only, the Magnet Mount Antennas above are NOT included.
please purchase separately if you need to use the module in the outdoors.
| APPEARANCE | |
|---|---|
| Interfaces | USB Type A SMA-KE female connector: 6dBi omni-directional antenna × 1 |
| Enclosure | ABS case |
| Dimension | 56.40 × 18.40 × 12.52mm |
| WIRELESS PARAMETERS | |
| Frequency Band | Sub-GHz (410~510MHz, 850~930MHz) |
| Signal Modulation | LoRa |
| Encryption Type | AES128 |
| Emit Power | +22dBm Max |
| Reception Sensitivity | -148dBm |
| SERIAL PARAMETERS | |
| Baud Rate | 1200 ~ 115200bps |
| Parity Bit | None, Odd, Even |
| Data Bit | 8 ~ 9 bits |
| Flow Control | N/A |
| ENVIRONMENTAL REQUIREMENT | |
| Operating Temperature | TCXO version: 0 ~ 85℃ |
| XTAL version: 0 ~ 50℃ | |
| Humidity Range | 5% ~ 95% relative humidity |
Supports USB To LoRa
Compared to traditional communication, LoRa Chirp Spread Spectrum (CSS) and Frequency Hopping Spread Spectrum (FHSS) technologies greatly improve the performance of long-range communication and anti-interference, widely used in military and industrial communication fields.
The Radio Station Can Realize Multi-Level Relay Networking, Suitable For Ultra Long-Range Distance Or Complex Environment Networking Communication, Allows Multi Networking On The Same Region
Users Can Query The Current Status Of The Module Or Set Parameters By Sending AT Commands
The Secret Key Is Writable But Unreadable, The Devices With The Encrypted Transmission Enabled And The Same Key Can Communicate With Each Other Normally For Greater Security
The module will actively monitor the environmental noise of the channel before sending. If the noise exceeds the threshold, the sending will be delayed. This function can improve the communication success rate of the module in harsh environments, suitable for networking transmission and anti-collision processing
Supports serial port output of data packet signal strength, can be used to evaluate signal quality, improve communication network, and measure distance. Supports serial port output of environmental noise signal strength, can be used to manually realize LBT function.
For Stable Performance Of Communication Module
Original chip
Ensure The Long Time Working Of The Module Without Frequency Shift At The Extreme Temperature Environment Of Industry
(This function is only available in the TCXO crystal oscillator version)
Sunny Weather With An Open Field, 22dBm Emit Power, Airspeed 0.3kbps,
6dBi Magnetic CB Antenna, 3m Antenna Height, 5km Distance
