RP2040-LoRa-HF-Kit

Šifra: w26542

1.590,00 RSD

Cena sa PDV

Lista želja ?

Unesi količinu Odmah dostupno više od 5

Dodaj u korpu

Kategorija: lora
Težina po komadu: 0.033 Kg

same time. Combines with LoRa gateway for connecting Cloud Server such as TTN and ChirpStack for quick verification. HF frequency band,

RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom

Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz

264KB of SRAM, and 2MB of onboard Flash memory

Onboard FPC 8PIN connector, adapting USB Type-C port via adapter board

Castellated module allows soldering direct to carrier boards

USB 1.1 with device and host support

Low-power sleep and dormant modes

Drag-and-drop programming using mass storage over USB, up to 20 × multi-function GPIO pins

Supports FSK, GFSK, LoRa modulation, featuring better anti-blocking and ultra-long distance communication

With -148dBm high reception sensitivity and programmable emit power up to 22dBm

Supports preamble detection, with CRC, up to 256 bytes data packet engine

Comes with online resources and manual (example in C)

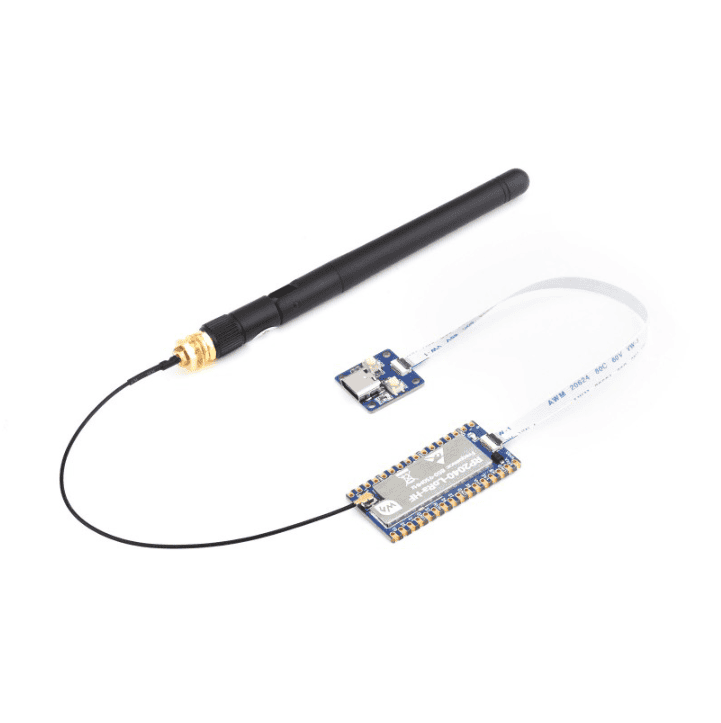

RP2040-LoRa-HF-Kit
RP2040-LoRa-HF + USB port adapter board + FPC cable

Specifications

VERSION		RP2040-LORA-HF
RF CHIP	SX1262
FREQUENCY RANGE		HF: 850 ~ 930MHz
EMIT POWER	22dBm
EMITTING CURRENT		118mA@22dBm
RECEIVING CURRENT	5.3mA@125KHz
SIGNAL MODULATION	LoRa/(G)FSK
OPERATING TEMPERATURE	-40 ~ 85℃
DIMENSIONS	21.00 × 41.00mm

Supports C

Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

Compact Size, Separate Adapter Board Design

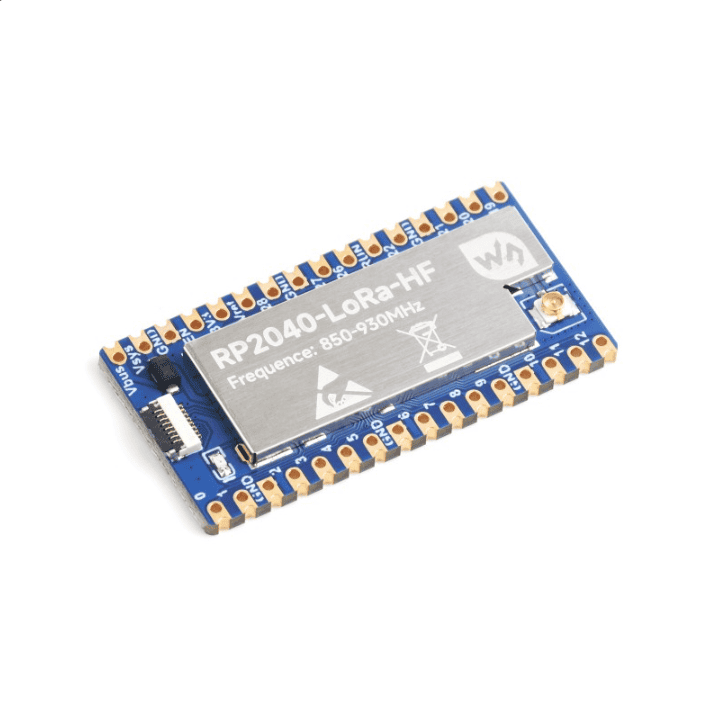

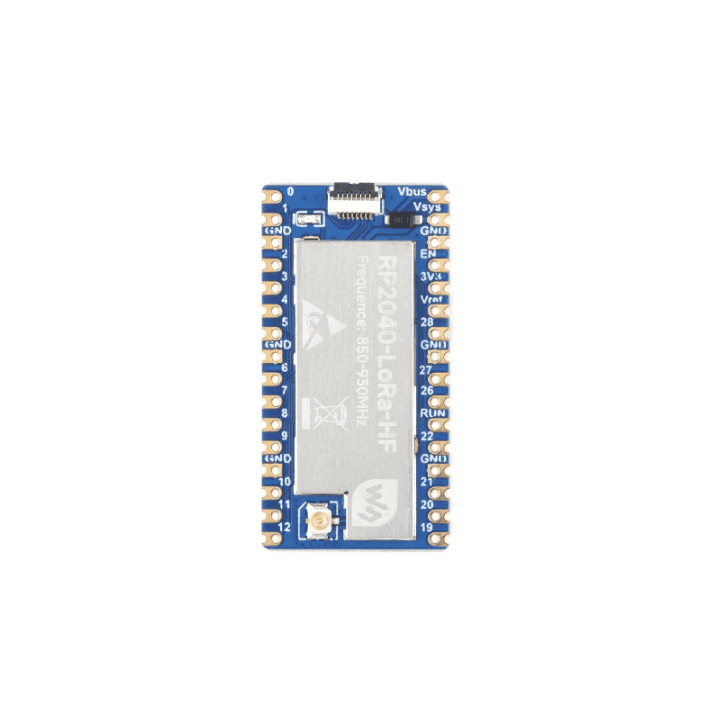

Castellated Holes With Immersion Gold Design, Highly Integrated Packaging, Easy To Embed Into Various Product Applications. Adapting USB Type-C Port Via Adapter Board
