SKU: 21443
Part Number: CH343 USB UART Board (type C)
Brand: Waveshare
Korisne informacije:
CH343_USB_UART_Board U ponudi model sa tip c konektorom USB To UART Communication Module
Stable Transmission | Multi-Device Applicable | Multi-System Compatible
Features At A Glance
- Adopts new version CH343G chip. Compared with CH340G, it supports higher data rate (up to 6Mbps) and more serial port IO levels (5V / 3.3V / 2.5V / 1.8V)
- Supports Mac, Linux, Android, Windows 7/8/8.1/10/11
- Onboard resettable Fuse and Transient Voltage Suppressor, anti-overcurrent and anti-overvoltage, anti-surge, anti-static, improve shock resistance, stable and safe communication performance
- Onboard IO protection circuits, anti-surge, anti-static, stable and safe communication performance
- Onboard 3.3V and 5V TTL level switch pins for selecting TTL communication level
- Support 3.3V/5V output (the module is powered by USB, and the onboard jumper should be shorted to 3.3V or 5V accordingly)
- Adopts double-sided black immersion gold process, which is durable and has a good look
Specifications
HOST INTERFACE |
USB |
DEVICE INTERFACE |
UART |
COMMUNICATION RANGE |
50bps ~ 6Mbps |
USB DEVICE INTERFACE |
connector: mini-USB, micro-USB, USB Type-A, USB Type-C;
protection: resettable Fuse, ESD protection |
UART INTERFACE |
connector: 6pin right-angle pinheader;
protection: IO protection diode |
Multiple Protection Circuit, Safe And Stable
Onboard Resettable Fuse And Transient Voltage Suppressor, Prevent Overcurrent And Overvoltage, Improve Shock Resistance; Onboard IO Protection Circuit, Anti Surge, Anti-Static, Stable And Safe Communication Performance
Multiple Systems Support
Compatible With Popular Systems Like Win7/8/8.1/10/11, Mac, Linux, Android...
Interface Introduction
INDICATOR DESCRIPTION |
PWR |
Power indicator, turn on when the voltage is detected from USB interface |
RXD |
Receiving indicator, turn on when data is sent back from the device interface |
TXD |
Sending indicator, turn on when data is sent from USB |

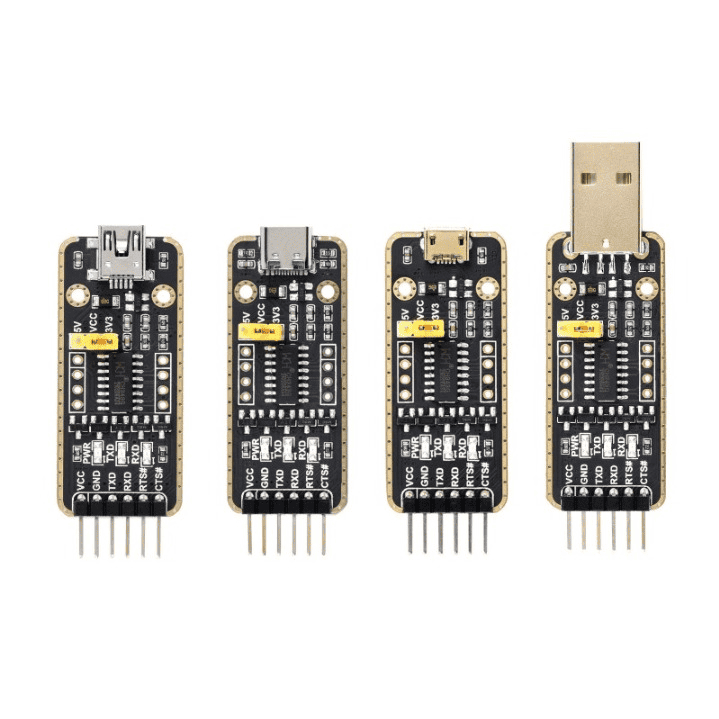

Pinouts Definition
VCC |
5V or 3.3V output for external device (configured by jumper) |
GND |
Ground |
TXD |
Connects to MCU.RXD |
RXD |
Connects to MCU.TXD |
RTS# |
Connects to MCU.CTS |
CTS# |
Connects to MCU.RTS |

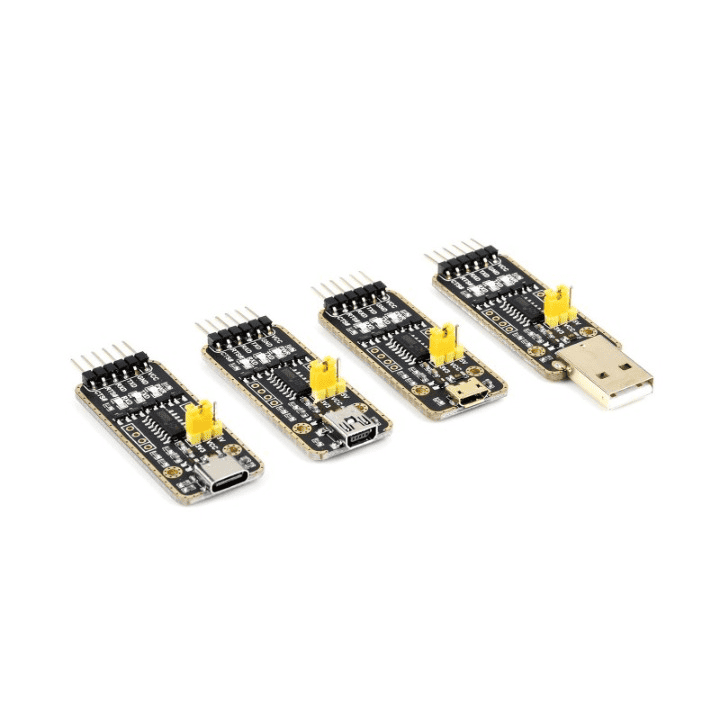

Different USB Connectors Are Available
Please Select The Proper One Before Placing Order
Outline Dimensions
- PACKAGE CONTENT
Weight: 0.01 kg
- Type C - CH343 USB UART Board x1
- 6-pin squid wire x1
