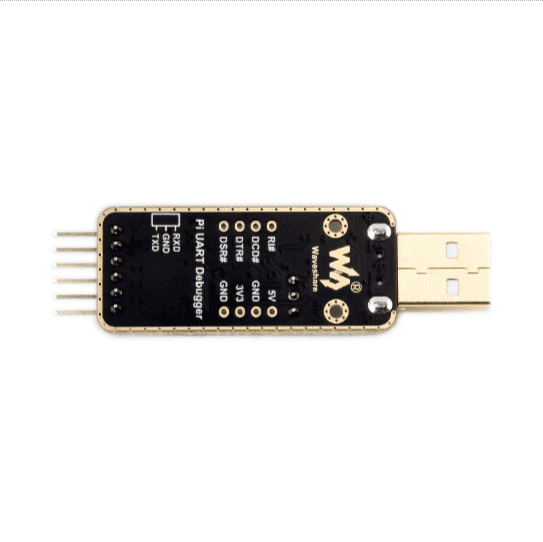

Designed For Raspberry Pi 5
Stable Transmission | Multi-Device Applicable | Multi-System Compatible
Suitable For Raspberry Pi 5, Supports Multiple Connection Methods

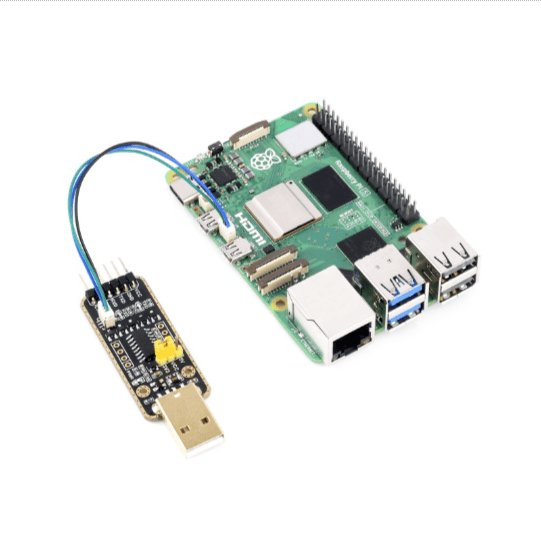

Connect To PI5 UART Debug Connector Via SH1.0 3PIN Cable
Connect Onboard 6PIN Header To PI5 GPIO UART Interface Via 6PIN Cable
Connect Onboard 6PIN Header To PI5 UART Debug Connector Via SH1.0 To 3PIN Cable
| HOST INTERFACE | USB |
|---|---|
| DEVICE INTERFACE | UART |
| COMMUNICATION RANGE | 50bps ~ 6Mbps |
| USB DEVICE INTERFACE | connector: USB Type-A; protection: self-recovery fuse, ESD protection |
| UART INTERFACE | connector: 6pin right-angle pinheader; 3pin connector protection: IO protection diode |
Onboard Self-Recovery Fuse And Transient Voltage Suppressor, Prevents Overcurrent And Overvoltage, Improves Shock Proof Performance; Onboard IO Protection Circuit, Anti Surge, Anti-Static, Stable And Safe Communication Performance
Compatible With Popular Systems Like Win7/8/8.1/10/11, Mac, Linux, Android...

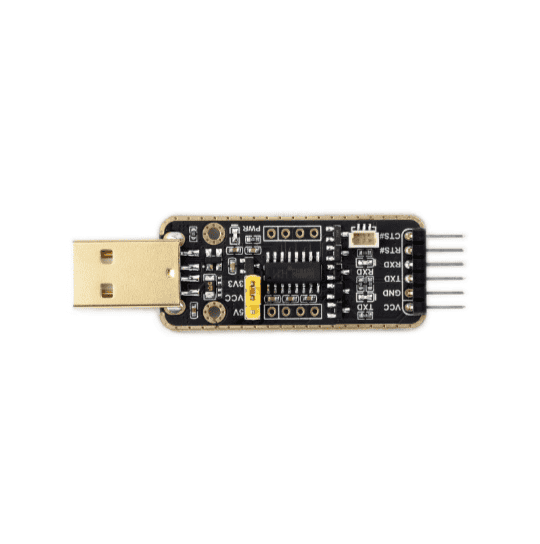

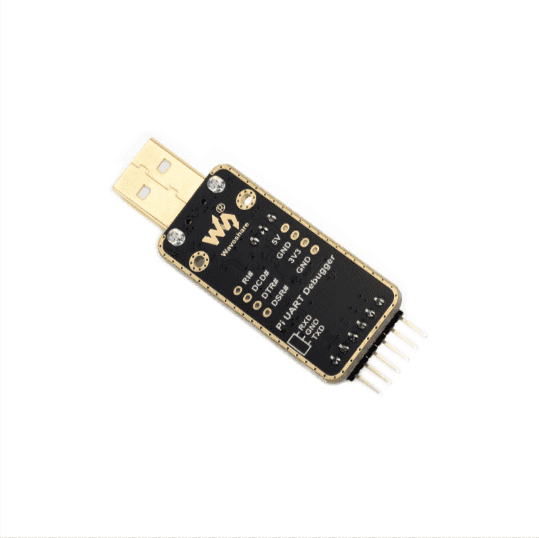

| INDICATOR DESCRIPTION | |
|---|---|
| PWR | Power indicator, turns on when voltage is detected from USB interface |
| RXD | Receiving indicator, turns on when data is sent back from the device interface |
| TXD | Sending indicator, turns on when data is sent from USB |
| VCC | 5V or 3.3V output for external device (configured by jumper) |
|---|---|
| GND | Ground |
| TXD | Connects to MCU.RXD |
| RXD | Connects to MCU.TXD |
| RTS# | Connects to MCU.CTS |
| CTS# | Connects to MCU.RTS |
