U ponudi imamo i odgovarajuću punjivu bateriju.
Za ovaj modul je potrebna baterija
14500 AA. SKU: 16120
Part Number: Solar Power Manager (EN)
Brand: Waveshare
Korisne informacije:
www.waveshare.com/wiki/Solar_Power_Manager Solar Power Management Module, For 6V~24V Solar Panel
Solar Power Management Module
Compatible with 6V~24V solar panels, supports 850mAh Li battery Recharged From Solar Panel, Or USB Power Adapter
5V/1A Or 3.3V/1A Regulated Output
Features At A Glance
This solar power management module is designed for 6V~24V solar panel. It can charge the 3.7V rechargeable Li battery through solar panel or USB connection, and provides 5V/1A or 3.3V/1A regulated output.
The module features MPPT (Maximum Power Point Tracking) function and multi protection circuits, therefore, it is able to keep working with high-efficiency, stability, and safety. It is suited for solar powered, low-power IoT, and other environmental protection projects.
- Supports MPPT (Maximum Power Point Tracking) function, maximizing the efficiency of the solar panel
- Supports solar panel / USB connection battery charging
- For 6V~24V solar panel, DC-002 jack input or screw terminal input
- Onboard MPPT SET switch, select the level closed to input level to improve charging efficiency
- Onboard two power output interfaces: USB port for 5V output, pinheader for 3.3V or 5V output
- Onboard high capacity aluminum electrolytic capacitor and SMD ceramic capacitor, reducing the ripple, stable performance
- 14500 battery holder and PH2.0 battery connector, for connecting multi kinds of 3.7V rechargeable Li battery
- Several LED indicators, for monitoring the status of solar panel and battery
- Multi protection circuits: over charge / over discharge / reverse protection / over heat / over current, stable and safe to use
Specification Comparison
|
SOLAR POWER MANAGER |
SOLAR POWER MANAGER (B) |
SOLAR POWER MANAGER (C) |
SOLAR POWER MANAGER (D) |
SOLAR IN |
6V ~ 24V (6V by default) |
6V ~ 24V (18V by default) |
6V ~ 24V |
RECHARGING |
Solar panel, power adapter, USB |
BATTERY |
3.7V 14500 Li-ion battery (NOT included) |
3.7V 10000mAh Li-po battery |
3x 18650 Li-ion battery (NOT included) |
USB INPUT |
5V (Micro USB) |
5V (TYPE-C, with PD quick charge support) |
5V OUTPUT |
5V / 1A (USB OUT, pin header)
3.3V / 1A (pin header) |
5V / 3A (USB-OUT, TYPE-C) |
5V / 3A (TYPE-C, screw terminal) |
RECHARGING CUTOFF VOLTAGE |
4.2V ± 1％ |
OVER DISCHARGING PROTECTION VOLTAGE |
2.9V ± 1％ |
3.0V ± 1％ |
SOLAR PANEL RECHARGING EFFICIENCY |
~78% |
USB RECHARGING EFFICIENCY |
~82% |
~93% |
BATTERIES BOOST OUTPUT EFFICIENCY |
~86% |
~90% |
QUIESCENT CURRENT (MAX) |
<2mA |
CASE |
N/A |
Metal case |
N/A |
OPERATING TEMPERATURE |
-40℃ ~ 85℃ |
DIMENSIONS (MM) |
65.2 × 56.2 × 22.9 |
108.0 × 71.0 × 25.2 |
119.0 × 71.0 × 25.2 |
45.0 × 40.0 × 10.1 |
Supports 6V~24V Solar Panels
5-Level Voltage Switch, For Setting Solar Panel Input Voltage To Improve Efficiency

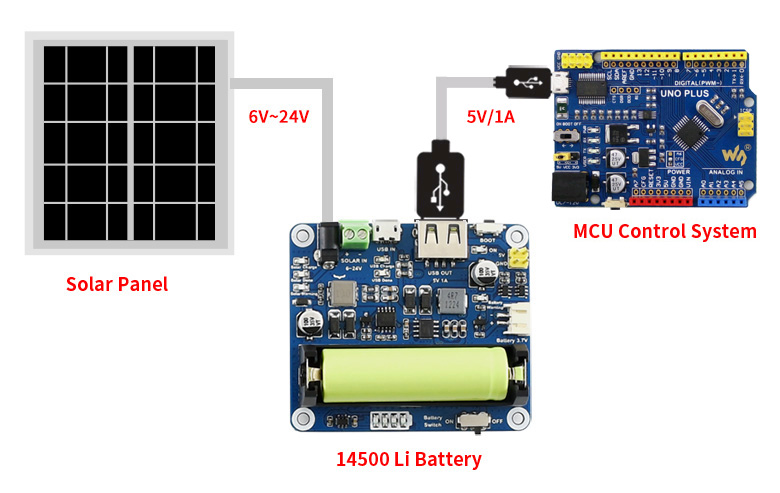

Application Example
for reference ONLY, the MCU board and solar panel are NOT included.

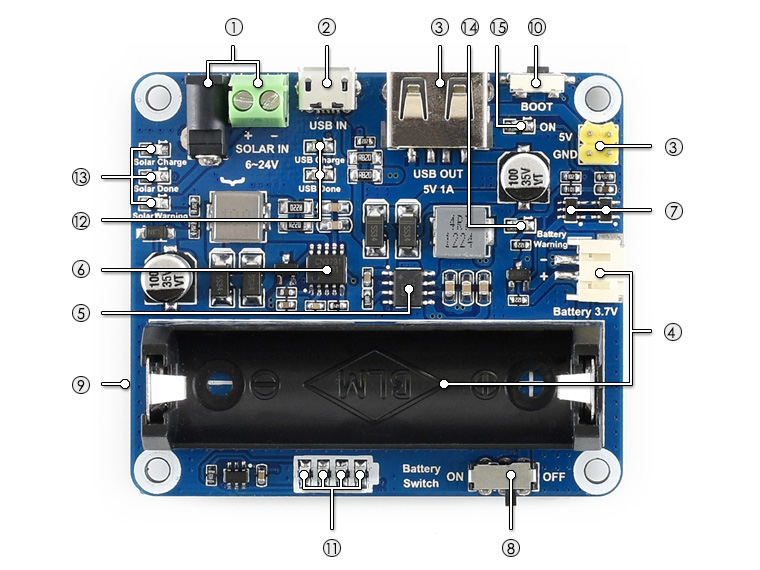

What's On Board
- Solar panel charging input:
charged by solar panel, DC-002 jack or screw terminal
- USB charging input:
charged by USB connection, connect a 5V power adapter through the Micro USB port
- Power output:
USB port: 5V/1A output
pinheader: 5V/1A or 3.3V/1A
- Battery interfaces:
for connecting 3.7V rechargeable Li battery, PH2.0 connector or 14500 battery holder
- CS8501:
USB power management chip, for USB charging and 5V/1A boost output
- CN3791:
solar power management chip, for solar panel charging and buck input
- Li battery protection chip:
Li battery over charge / over discharge protection
- Battery switch

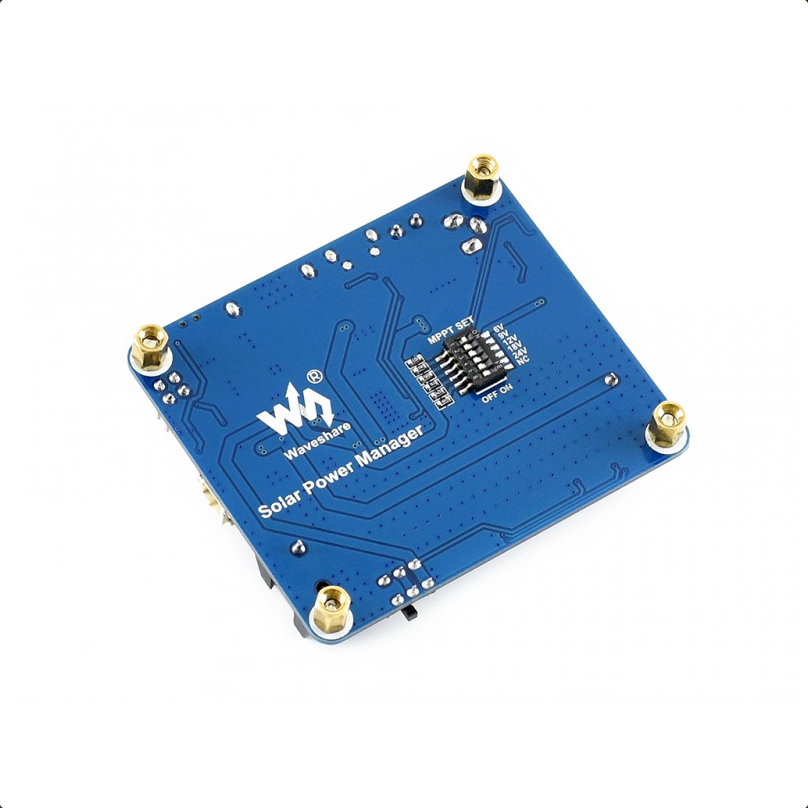

- MPPTSET switch (bottom side):
supported level: 6V/9V/12V/18V/24V
select the level closed to input level to improve charging efficiency
- BOOT key
- Battery capacity indicators
- USB charging indicators:
USB Charge: on when USB charging
USB Done: on when the battery is full charged by USB
- Solar panel charging indicators:
Solar Charge: on when solar panel charging
Solar Done: on when the battery is full charged by solar panel
Solar Warning: on when solar panel reverse connection
- Battery warning:
on when battery reverse connection
- Power output indicator:
5V/1A output

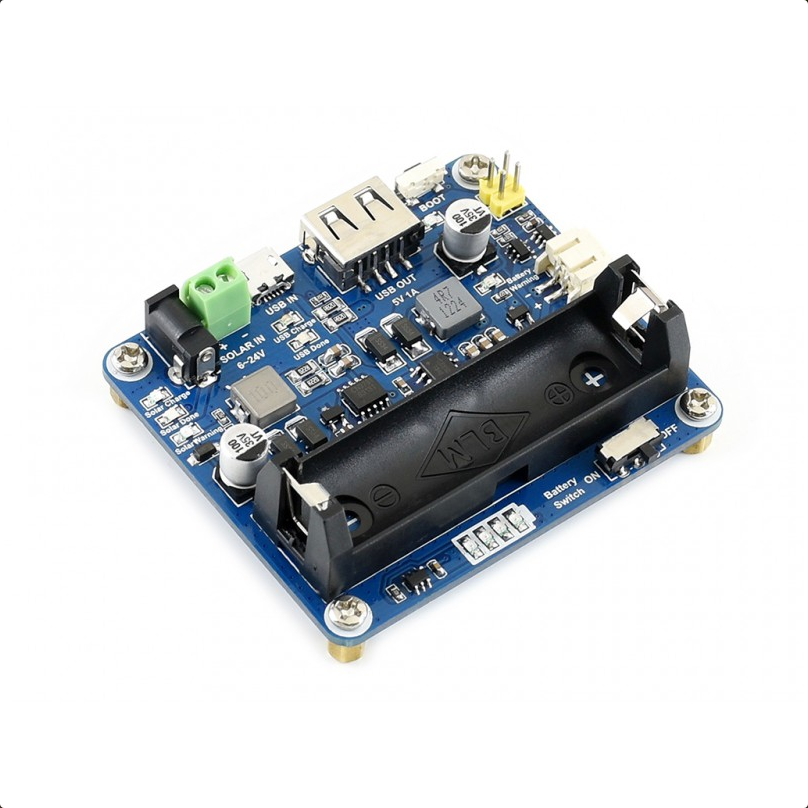

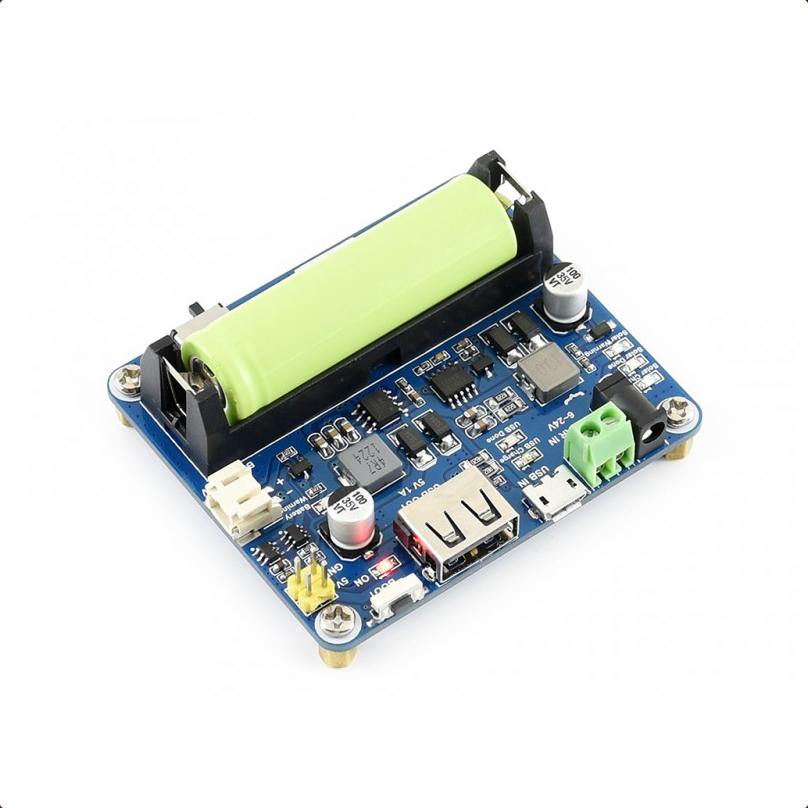

Product Show

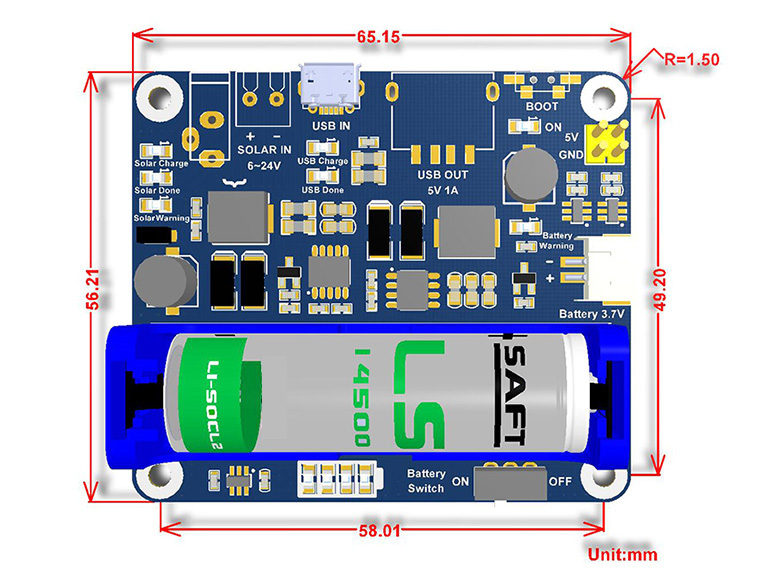

Outline Dimensions
Package Content Weight: 0.029 kg
Note: the 14500 battery is NOT included.
- Solar Power Manager x1
