SKU: 24166
Part Number: Solar Panel (5.5V 6W)

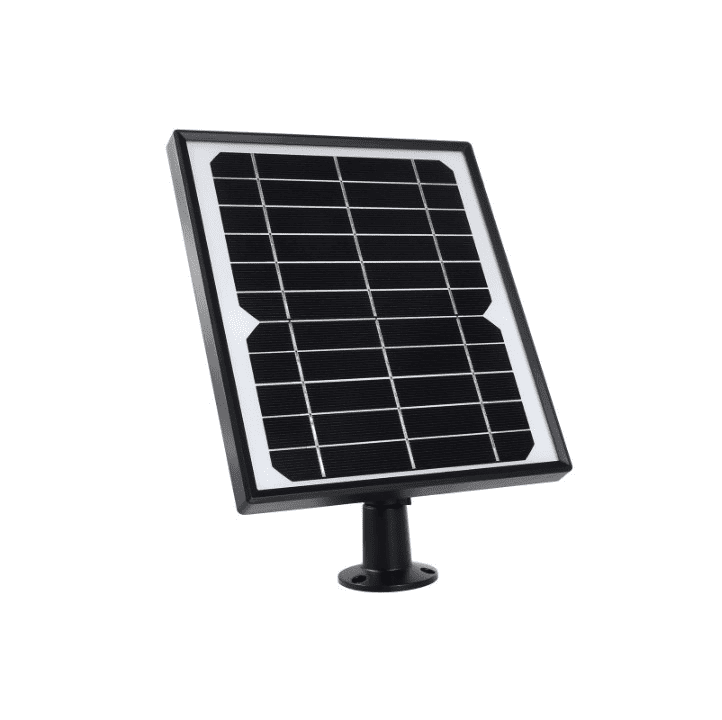

Monocrystalline Silicon Solar Panel
Specifications
SOLAR CELL TYPE |
Monocrystalline silicon |
SOLAR PANEL POWER |
6W |
OPERATING VOLTAGE |
5.5V ± 5% |
OPERATING CURRENT |
1000mA ± 5% (Max) |
OPEN CIRCUIT VOLTAGE |
7.2V ± 5% |
SHORT CIRCUIT CURRENT |
1090mA ± 5% (Max) |
OUTPUT INTERFACES |
micro USB, USB Type-C (with adapter) |
CABLE LENGTH |
3m |
OUTLINE DIMENSIONS |
225.0 × 195.0 × 17.6mm |

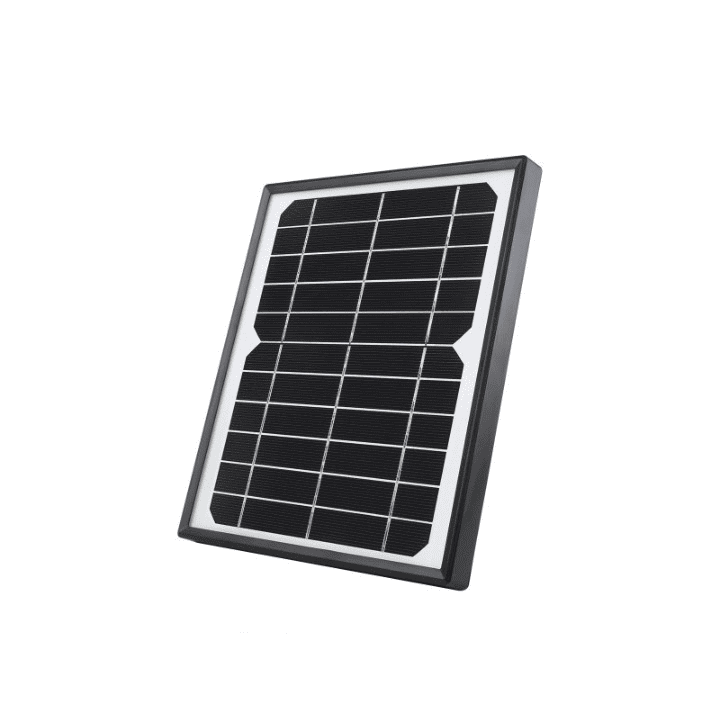

Note: specifications above are tested on standard condition: 1000W/m2 radiation intensity, 25℃, AM1.5 air quality. Toughen Glass Panel
Connecting To Power Management Module
Connecting To Power Management Module Or Other Control Boards Which Support 5.5V Solar Panels For Charging Or Power Supply, Compatible With Solar Power Manager.

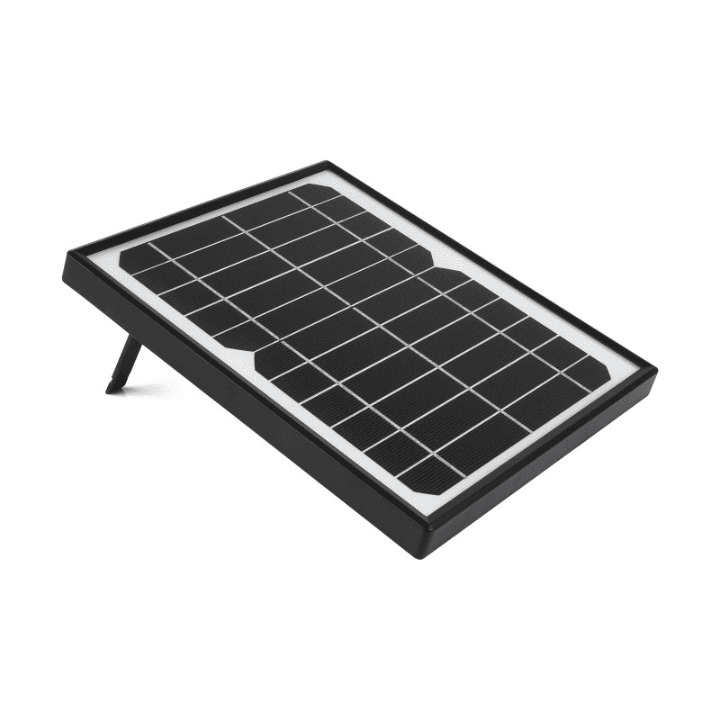

for reference only, the Solar Power Manager module and the MCU board are not included. Comes With Foldable Stand

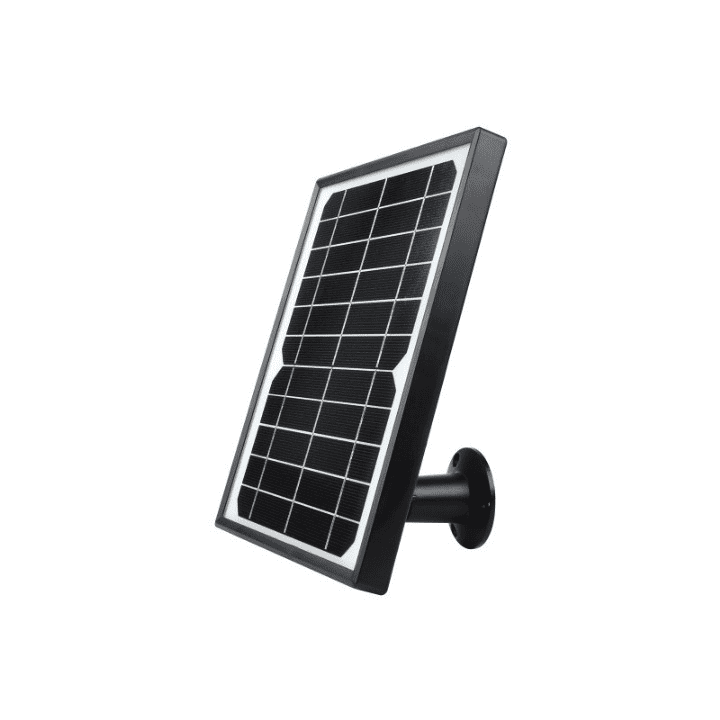

Easy To Install
Application Examples
Can Be Directly Connected To Low-Power Outdoor Smart Electronic Devices Which Support 5.5V Solar Panel Via USB Port, Such As Monitoring Devices, Doorbells, Fans, Emergency Lights, Etc.

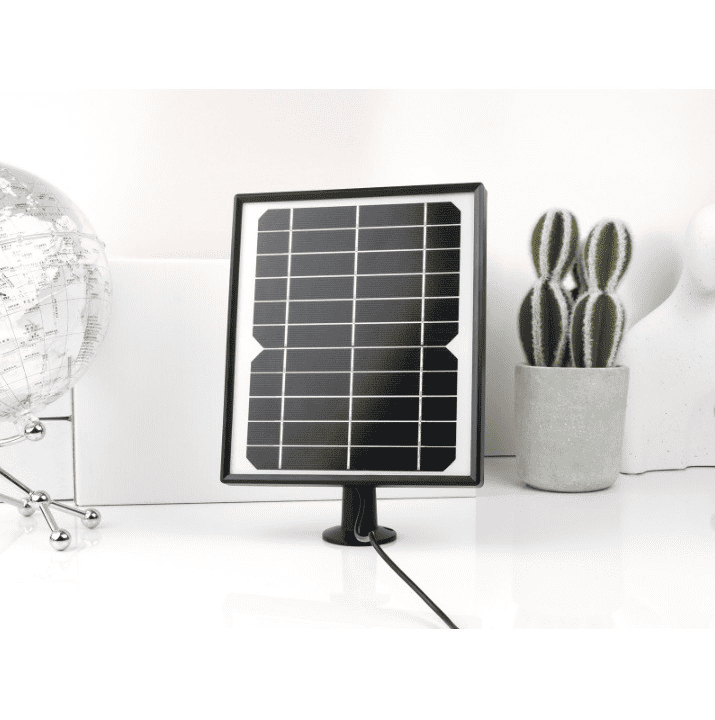

Product Show
Outline Dimensions
These dimensions are manually measured, and there may be some deviations
- PACKAGE CONTENT
Weight: 0.455 kg Solar Panel (5.5V 6W) x1
