SKU: 16158
Part Number: Solar Panel (6V 5W)
Brand: Waveshare
Konektor je DC 3.5mm.
Solar Panel (6V 5W), 156 monocrystalline cell
Specifications
- Solar cell type: 156 monocrystalline cell
- Surface: toughened glass
- Frame material: anodic oxidation aluminum alloy
- Back board material: 0.25mm PET
- Power: 5.0W ± 5%
- Operating voltage: 6.0V ± 5%
- Operating current: 833mA ± 5% (max)
- Open circuit voltage: 7.2V ± 5%
- Short circuit current: 916mA ± 5%
- For use with: Solar Power Manager
Note: specifications above are tested on standard condition: 1000W/m2 radiation intensity, 25℃, AM1.5 air quality.

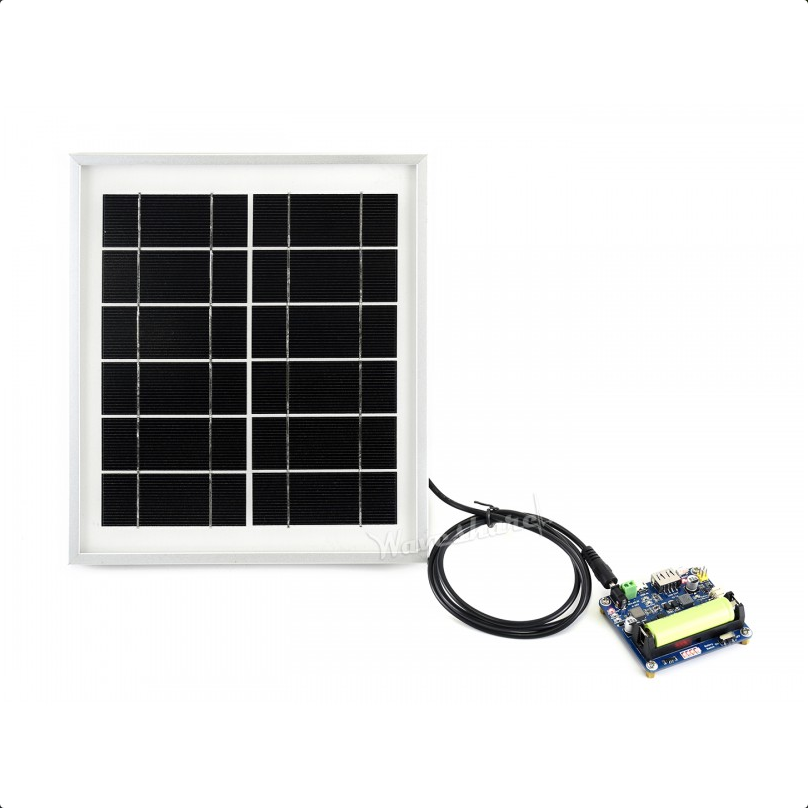

Application Example

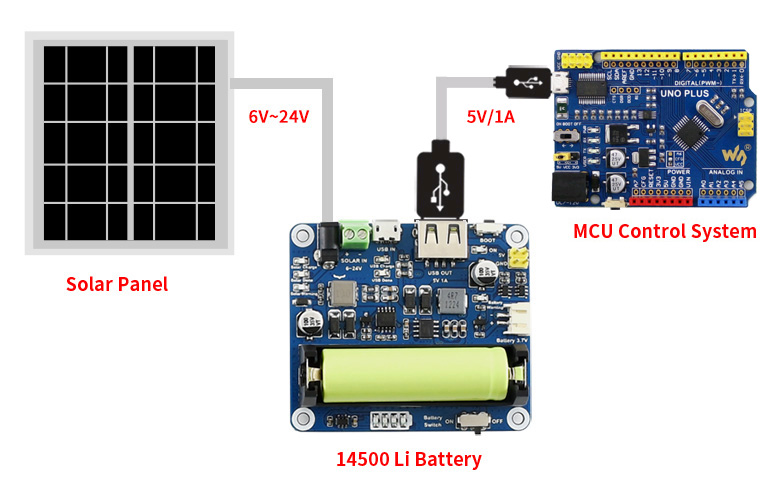

A simple solar power supply system:

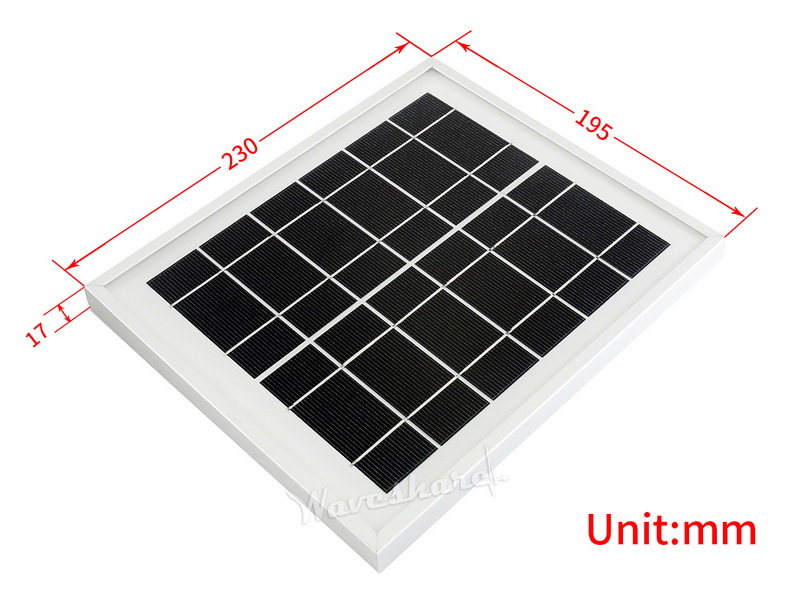

Dimension
Package Content Weight: 0.533 kg
Note: the Solar Power Manager is NOT included.
- Solar Panel (6V 5W) x1
