| KEY SPECIFICATIONS | |||
|---|---|---|---|
| Solar cell type | polysilicon | Power | 10 Wp (Max) |
| Output power tolerance | ±3% | Conversion efficiency | >20% |
| Operating voltage | 17.6 V | Operating current | 0.57 A |
| Open circuit voltage | 21.6 V | Short circuit current | 0.61 A |
| Cell quantity | 36 (4×9) | Standard system voltage | 1000 V (Max) |
| OTHERS | |||
| Operating temperature | -40℃ ～ +85℃ | ||
| Pressure on panel | 30m/s(200kg/sq.m) (Max) | ||
| Cable length | 90 cm | ||
| Frame material | anodic oxidation aluminum alloy | ||
| Dimensions | 340 × 232 × 17 mm | ||
| Weight | 0.935 kg | ||

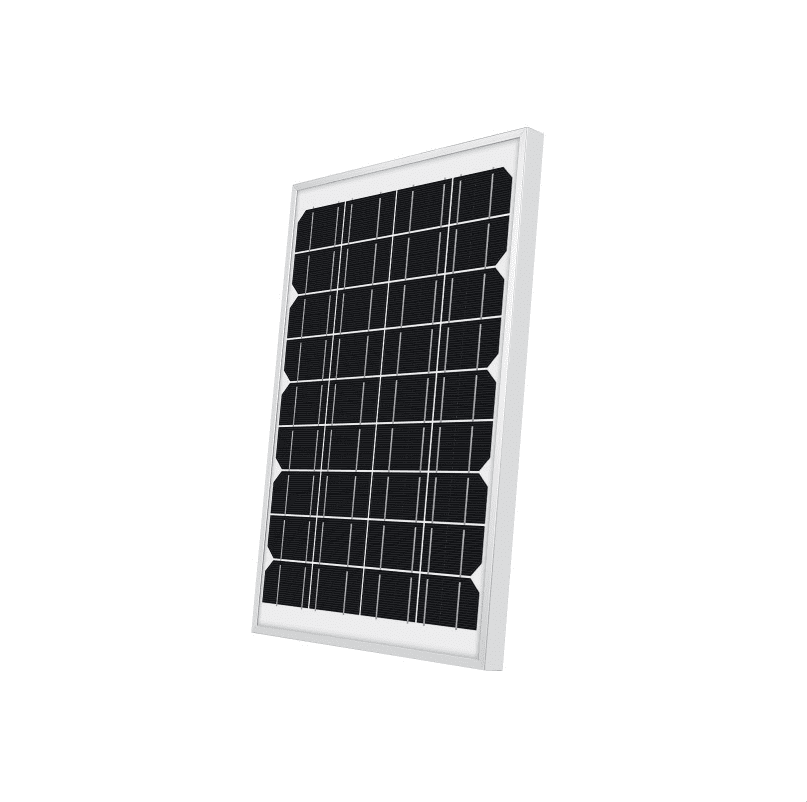

Polysilicon Solar Panel, Widened Chips, Larger Receiving Area, Capturing Trivial Source
Anodic Oxidation Aluminum Alloy Material, Multi Layers Structure, Waterproof And Durable
* measured manually, for reference ONLY
