ReSpeaker Lite

Šifra: se107990273

3.190,00 RSD

Cena sa PDV

Trenutno nedostupno za online naručivanje

Obavesti me kada proizvod bude dostupan!

Težina po komadu: 0.02 Kg

Konektori, žice, protobord

Powered by XMOS XU316 AI Sound and Audio chipset, this dev board excels in audio processing with its integrated dual microphone array, ideal for speech recognition and voice control. Featuring advanced onboard NLU algorithms, the XU316 chip provides interference cancellation, echo cancellation, and noise suppression. It supports I2S and USB connections and is compatible with Seeed Studio XIAO ESP32S3 (Sense), Adafruit QT Py, Raspberry Pi, and PC.

Feature

Note:
ReSpeaker Lite does not come with a MCU for data access and transmission (eg. a XIAO ESP32S3), and it is only for audio processing with XMOS's XU316. _x000b_If you want to buy a complete Voice Assistant Kit, please visit here. The kit offers options for different ReSpeaker Lite models, Speaker, and acrylic enclosures.

Dual Microphone Array for Far-Field Voice Capture: The 2 high performance digital microphones capture and extract far-field speech and voice (up to 3 meters) even in noisy environments as it cancels point noise using two microphone input.

Onboard AI NLU Algorithms: Powered by XMOS XU-316 AI sound and audio chip, the kit includes Natural Language Understanding algorithms for Interference Cancellation (IC) , Acoustic Echo Cancellation, Noise Suppression, Voice-to-Noise Ratio (VNR), and Automatic Gain Control (AGC), enabling high quality voice capture.

Embracing Open Source: This board is compatible with popular hardware platforms (XIAO ESP32S3 (Sense), Adafruit QT Py) via I2S, and compatible with Raspberry Pi, PC via USB (Audio Class 2.0 (UAC2)).

Onboard RGB LED: The board features a programmable WS2812 RGB LED, supporting custom effects and offering a visual interface for your applications.

External Power Supply Support: this board supports external 5V power supply, which can be flexibly applied in different scenarios.

DFU for Custom Development: the board supports custom firmware update via DFU-Util.

Specification

Core Chip	XMOS XU316
Digital Microphones	High-performance digital microphones * 2
Sensitivity	-26 dBFS
Acoustic Overload Point	120 dBL
SNR	64 dBA
Power Supply	USB 5V, external 5V

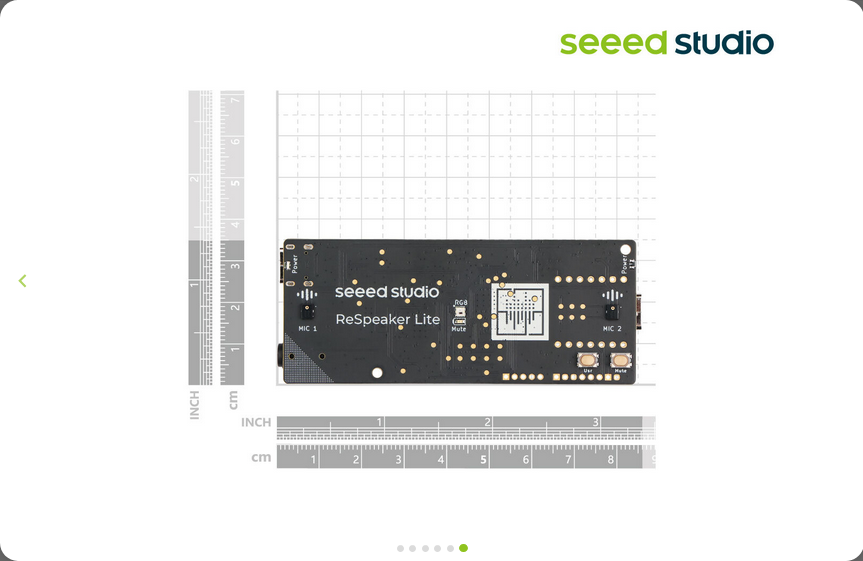

Dimensions	35*86 mm
Audio Output	Speaker Connector / 3.5mm Headphone jack
Maximum Sampling Rate	16Khz
Speaker	Supports 5W amplifier speakers.

Hardware Overview

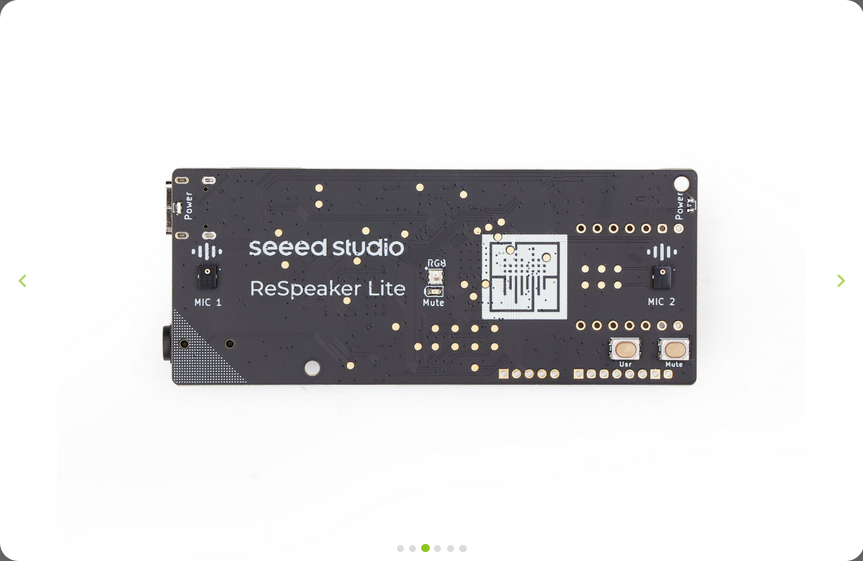

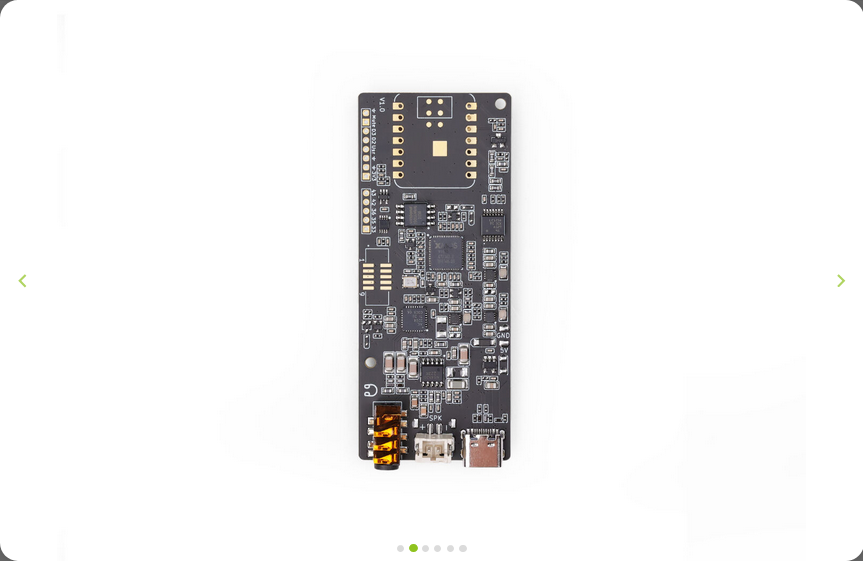

1	Dual Microphone Array	Provides high-quality audio input.
2	Power Indicator Light	Illuminates when powered on.
3	RGB Light	Programmable WS2812, provides visual interface
4	Mute Indicator Light	Lights up red when the mute button is pressed.
5	USR Button	User-defined button.
6	Mute Button	Mutes audio input when pressed.
7	XIAO ESP32S3 (optional)	For further development and integration.
8	XU316 Core Processor	Responsible for audio processing and transmission.
9	External Power Supply Solder Pad	Supports external 5V power supply.
10	USB Type-C Port	Used for power and data transmission.
11	Speaker Connector	For audio output. Supports 5W amplifier speakers.
12	3.5mm Headphone jack	Output audio, We can plug active speakers or Headphones into this port.
13	External power pad 1	Unused IO pins on the XIAO ESP32.
14	External power pad 2	Unused IO pins on the XU316.
15	JTAG	For debugging and programming the XU316.

Application

Far-Field Voice Control

Offline Voice Processing

Local Command Processing

Custom Wake-Up Words

Low Power Voice Offload

Industrial Voice Control

Voice Recognition and Control for Home Assistant, Google Assistant, Amazon Alexa and more

Documents

Product-Brief of XMOS XU316
ReSpeaker Lite - CE certifications
ReSpeaker Lite - FCC certifications
Schematic diagram of ReSpeaker Lite

ECCN/HTS
