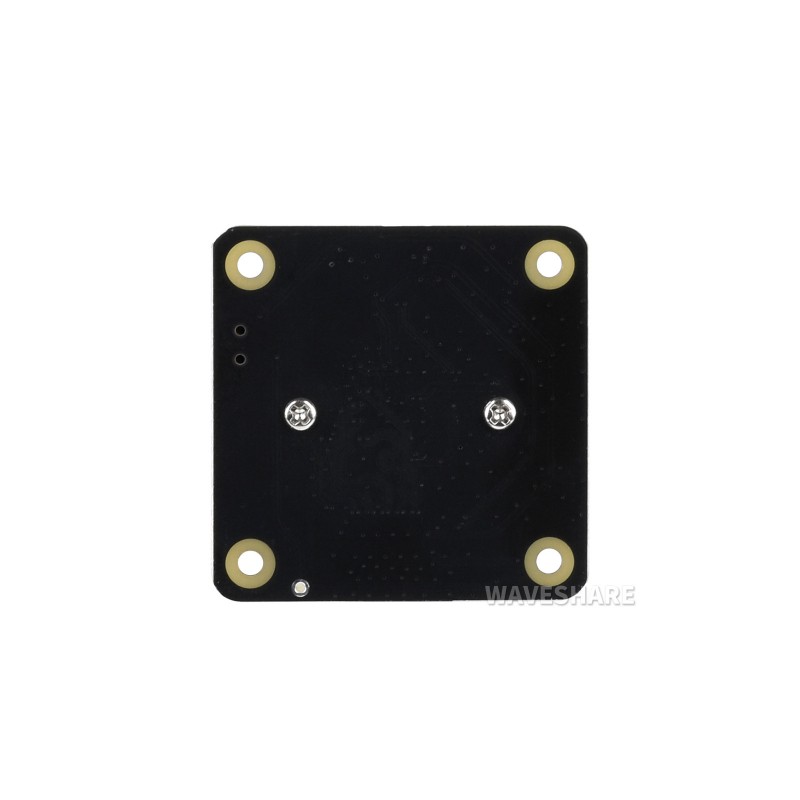

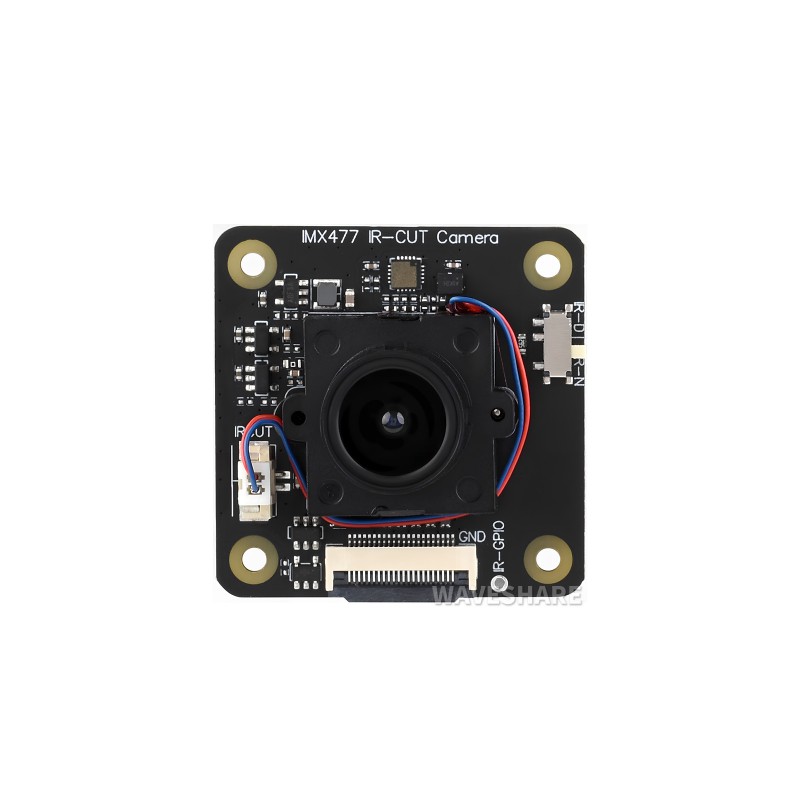

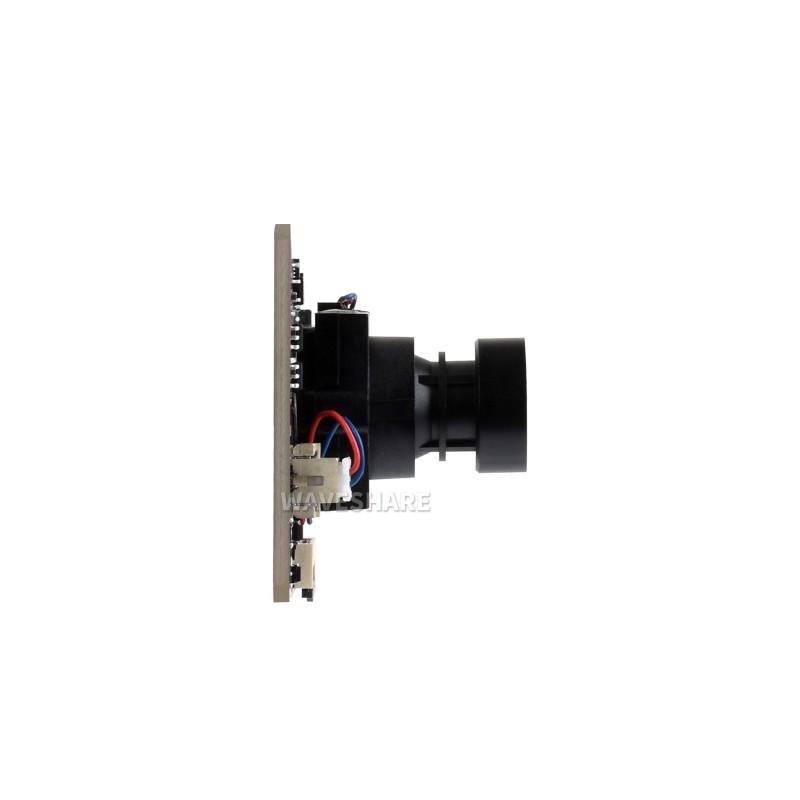

IMX477 sensor, 12.3MP, Applicable for Raspberry Pi / Jetson Nano Series Boards
| Sensor | Model | IMX477 |
|---|---|---|
| Resolution | 12.3MP, 4056 × 3040 | |
| CMOS diagonal length | 7.9mm | |
| Pixel size | 1.55µm (H) × 1.55µm (V) | |
| Camera | Aperture (F) | 2.0 |
| Focal length (BFL) | 3.95 | |
| Field of view (FOV) | 90°(D) | |
| Distortion | <12.5% | |
| Operating voltage | 3.3V | |
| Applications | suitable for AI applications like: facial recognition, road mark recognition, license plate number recognition, and so on. | |
The IMX477 sensor supports up to 12.3MP resolution, capturing every detail in the picture
allows the user to switch filter freely according to the usage scenario
* Note: the infrared light is required for night vision function and needs to be purchased separately.
Compatible With Raspberry Pi and Jetson Series Boards (Specific driver is required)

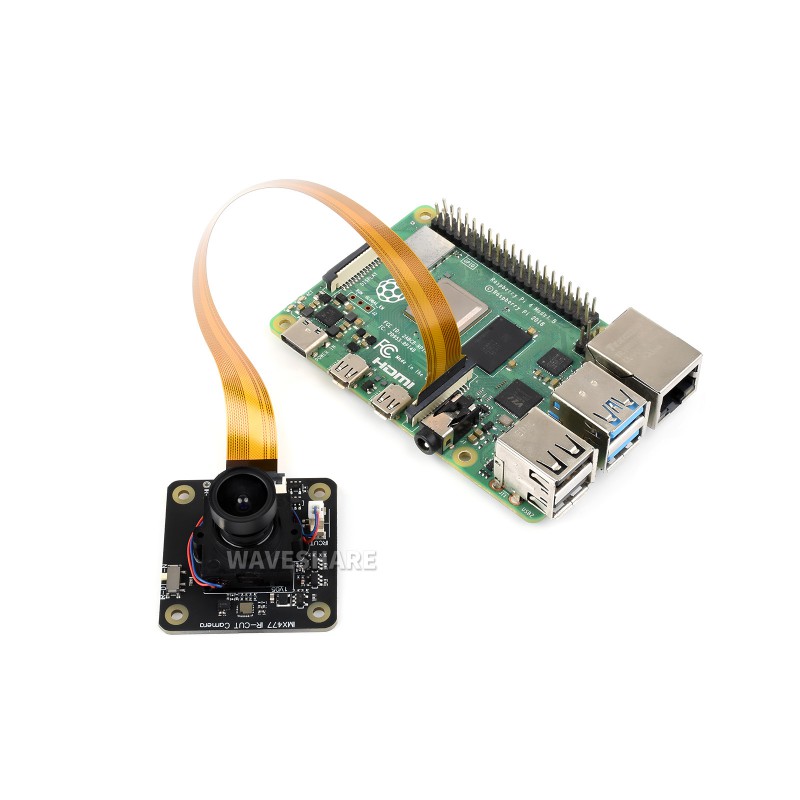

Connecting with Raspberry Pi 4B

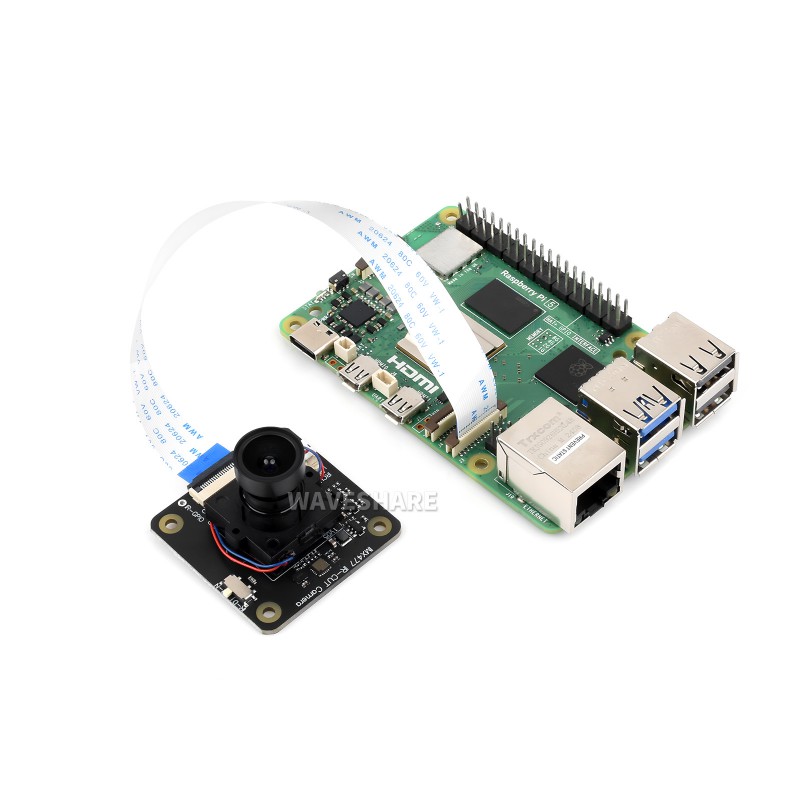

Connecting with Raspberry Pi 5
Connecting with CM4 / CM5 IO Board
Connecting with Zero 2 W

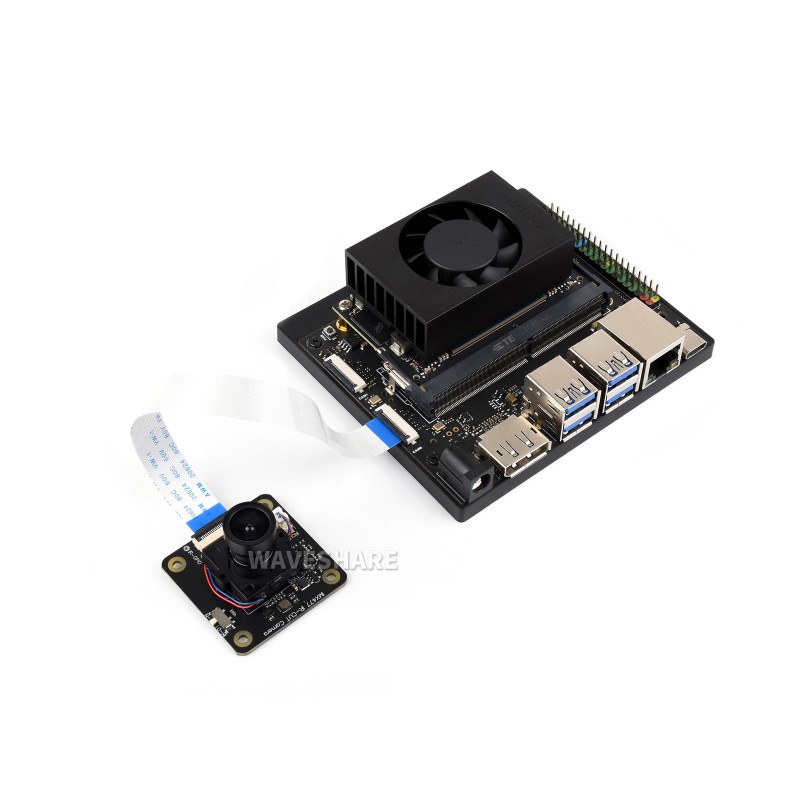

Connecting with Jetson Nano Kit
Connecting with Jetson Orin Kit
