ichDesc">adopts CP2102, compatible with 3.3V logic level
Features at a glance
- Supports Mac OS, Linux, Android, WinCE, Windows 7/8/10/11...
- Voltage output support: 5V or 3.3V
- Integrated USB protection device: SP0503

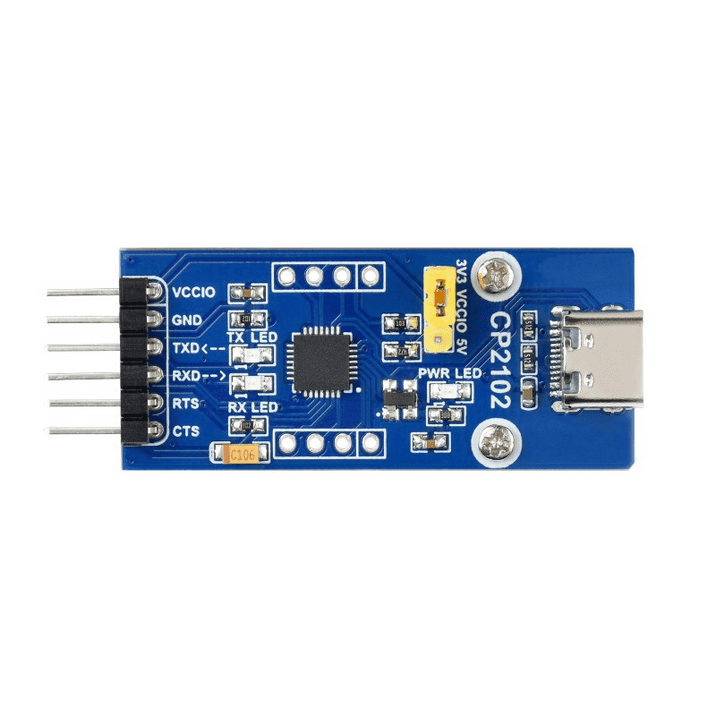

- 3x LED indicators: TXD LED, RXD LED, POWER LED
- Pins accessible on pinheaders: TXD, RXD, RTS, CTS

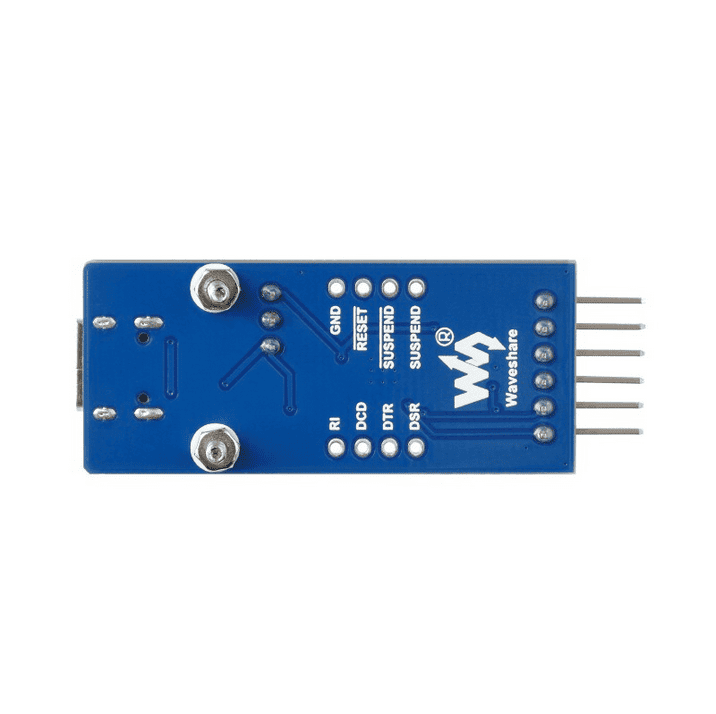

- Other pins are accessible on drilled holes, easily connected to user application system (the pin pitch is compatible with universal prototype board)
CP2102 solution
- Single-Chip USB to UART Data Transfer
- No external resistors required, no external crystal required
- On-chip power-on reset circuit and voltage regulator
- Integrated 1024-Byte EEPROM
- USB Function Controller
- USB Specification 2.0 compliant; full-speed (12 Mbps)
- USB suspend state, supported via SUSPEND pins
- UART
- All handshaking and modem interface signals
- Data formats:
- Data bits: 5, 6, 7, 8
- Stop bits: 1, 1.5, 2
- Parity: odd, even, no parity
- Baudrates: 300bps to 1Mbps
- 576 byte receiving buffer; 640 byte transmitting buffer
- Hardware or X-On/X-Off handshaking support
- Event character support
- Virtual COM Port Device Drivers
- Windows 8/7/Vista/Server 2003/XP/2000
- MAC OS-X/OS-9
- Linux 2.40 or higher
- USBXpress Direct Driver Support
- Windows 7/Vista/Server 2003/XP/2000
- Windows CE
- Temperature Range

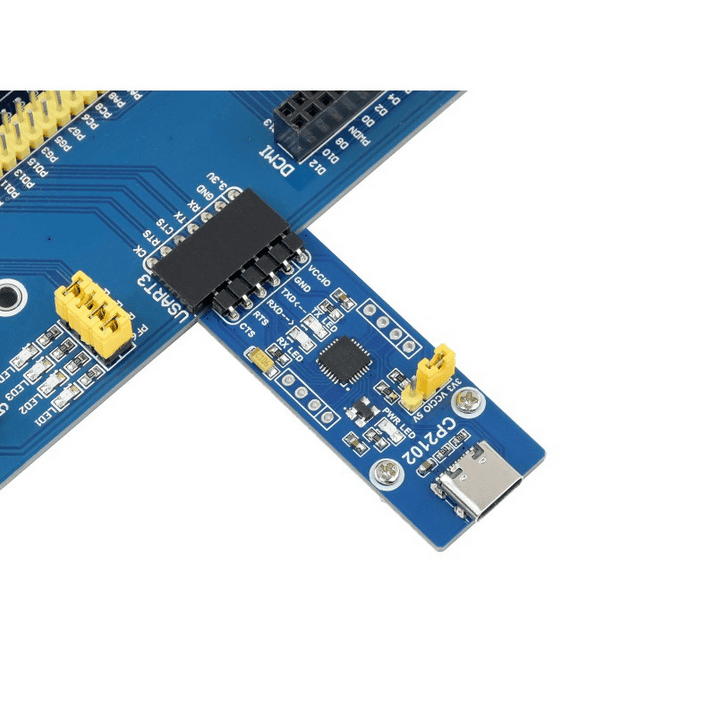

Hardware connection In the case of working with MCU
- VCCIO: 3.3V or 5V output (the module is powered from USB, and the onboard jumper should be shorted to 3.3V or 5V)
- GND: connects to GND
- TXD: connects to MCU.RX (signal direction: MCU.RX << CP2102 << PC.TX)
- RXD: connects to MCU.TX (signal direction: MCU.TX >> CP2102 >> PC.RX)
- RTS: connects to MCU.CTS (signal direction: MCU.CTS << CP2102 << PC.RTS)
- CTS: connects to MCU.RTS (signal direction: MCU.RTS >> CP2102 >> PC.CTS)
CAUTION: the module is compatible with TTL level ONLY, to avoiding any damage, please DON'T direct connect it to RS232 circuit. Outline Dimensions
Package content: Weight: 0.011 kg
- CP2102 USB UART Board (Type C) x1
- 6-pin custom connector jumper wire x1
- 4-pin male pinheader & 4-pin female pinheader x2
