SKU: 22346
Part Number: DCGM-3865-12V-EN-240RPM
Korisne informacije:
www.waveshare.com/wiki/DCGM-3865-12V-EN-240RPM L-Shaped Permanent Magnet DC Gear Motor, Magnetic Hall Encoder, All-Metal Gear Motor
L-Shaped Permanent Magnet DC Gear Motor All-metal Gear, Magnetic Hall Encoder
Mainly Used In Short Wheelbase Robots, And L-Shaped Applications
No Self-Locking Function In The Reducer, The Output Shaft Can Be Rotated By Hand
Specifications
WORKING VOLTAGE |
DC 12 V |
RATED POWER |
5.2 W |
NO-LOAD SPEED |
240 rpm |
LOCKED-ROTOR TORQUE |
≥8.5 kg.cm |
NO-LOAD CURRENT |
0.15 A MAX |
LOCKED-ROTOR CURRENT |
≤3.5 A |
RATED LOAD |
4.0 kg.cm |
HALL RESOLUTION |
Basic 11 PPR × 42 = 462 PPR |
RATED SPEED |
125 rpm |
GEAR REDUCTION RATIO |
1:42 |
RATED CURRENT |
1.0 A MAX |
Encoder Specifications
TYPE |
AB Dual-Phase Incremental Magnetic Hall Encoder |
LINE RATE |
Basic pulse 11 PPR x Gear reduction ratio |
POWER SUPPLY |
DC 3.3V / DC 5.0V |
BASIC FUNCTION |
with pull-up resistor, directly connect to MCU |
INTERFACE TYPE |
XH2.54-6PIN |
OUTPUT SIGNAL TYPE |
Square wave AB phase |
RESPONSE FREQUENCY |
100 KHz |
BASIC PULSES |
11 PPR |
MAGNETIC RING TRIGGER POLES NUMBER |
22 poles (11 pairs of poles) |
Encoder Pin Definition

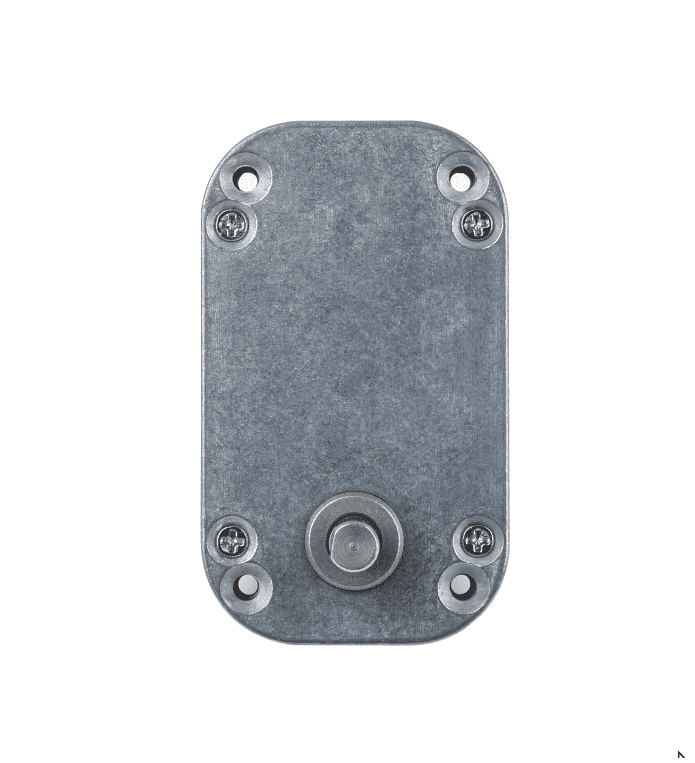

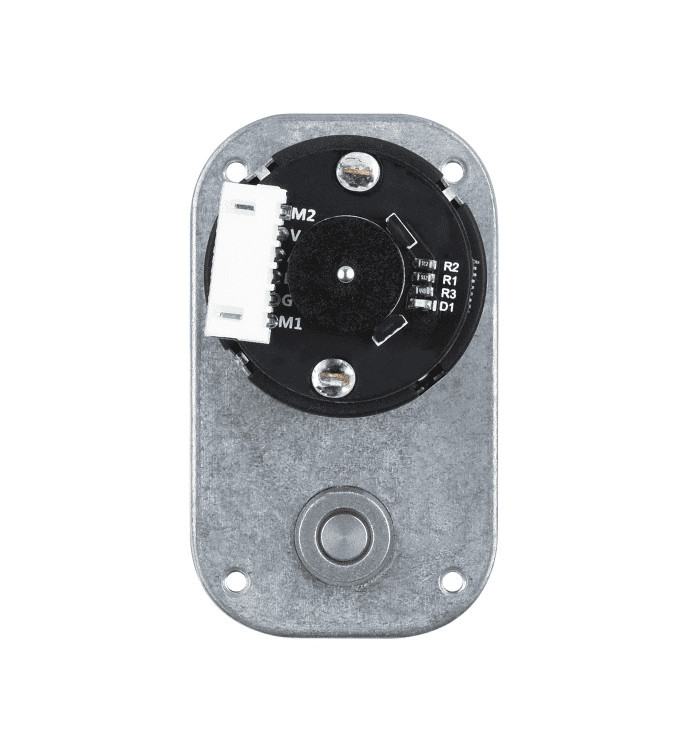

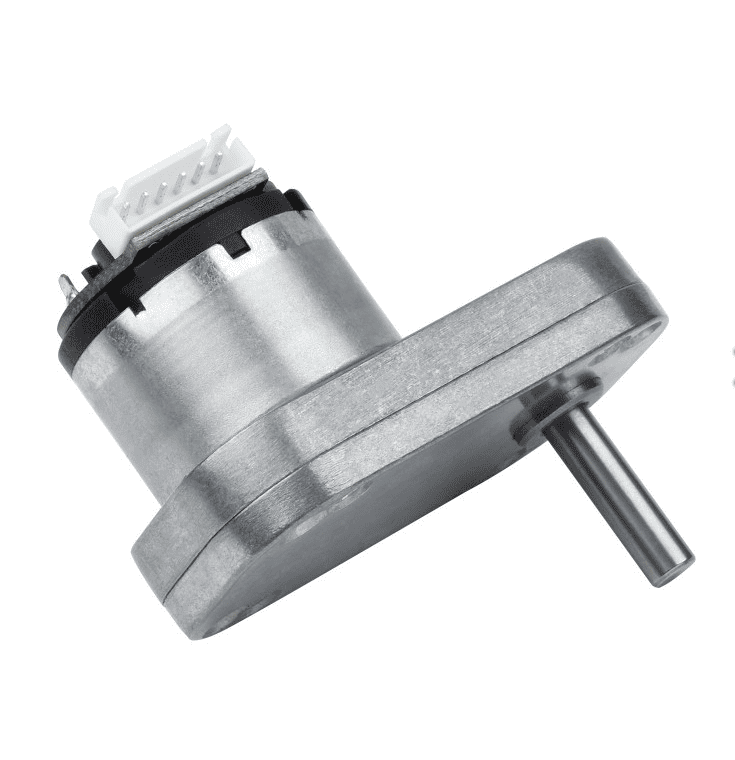

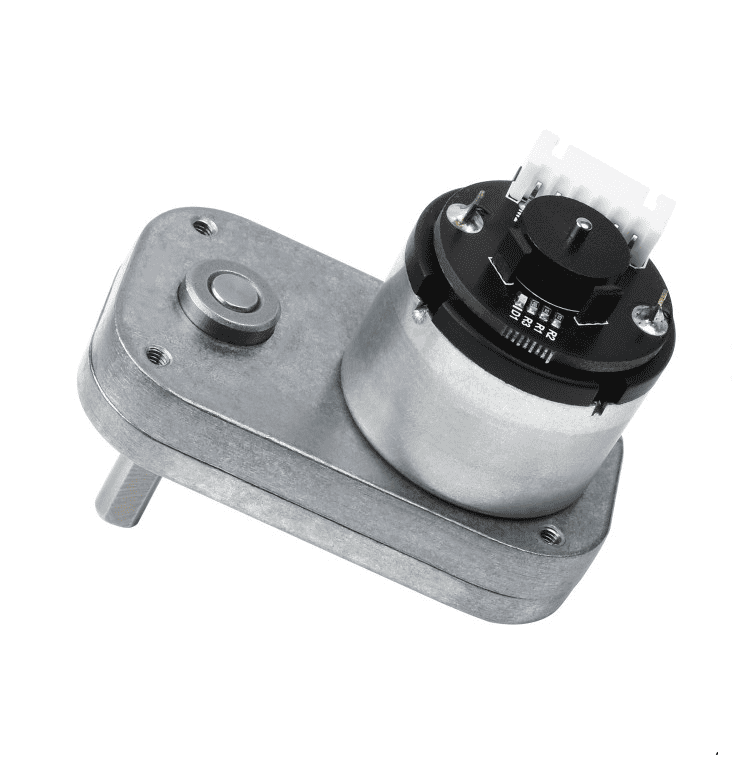

Product Show
Applications
Outline Dimensions
- PACKAGE CONTENT
Weight: 0.167 kg
Package Contains
- DCGM-3865-12V-EN-240RPM x1
