SKU: 20410
Part Number: Pico-ETH-CH9121
Brand: Waveshare
Korisne informacije:

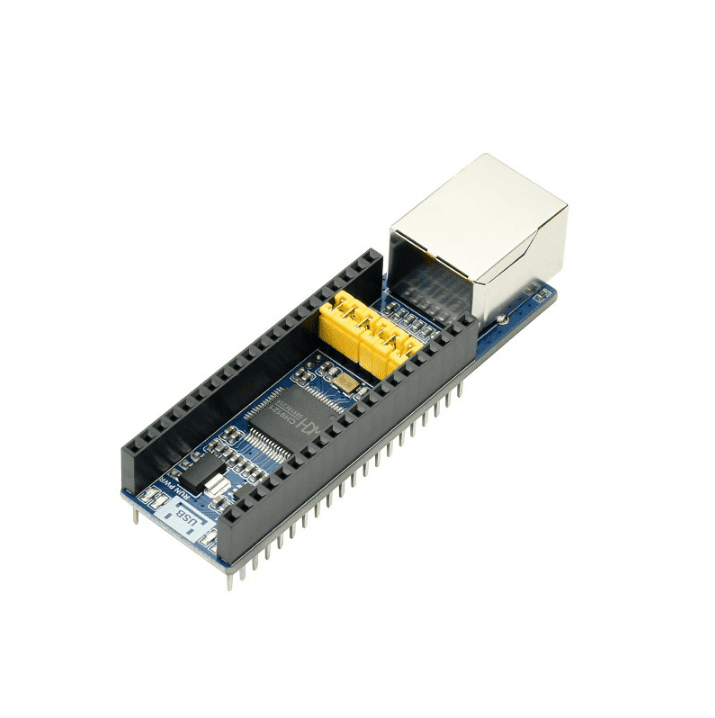

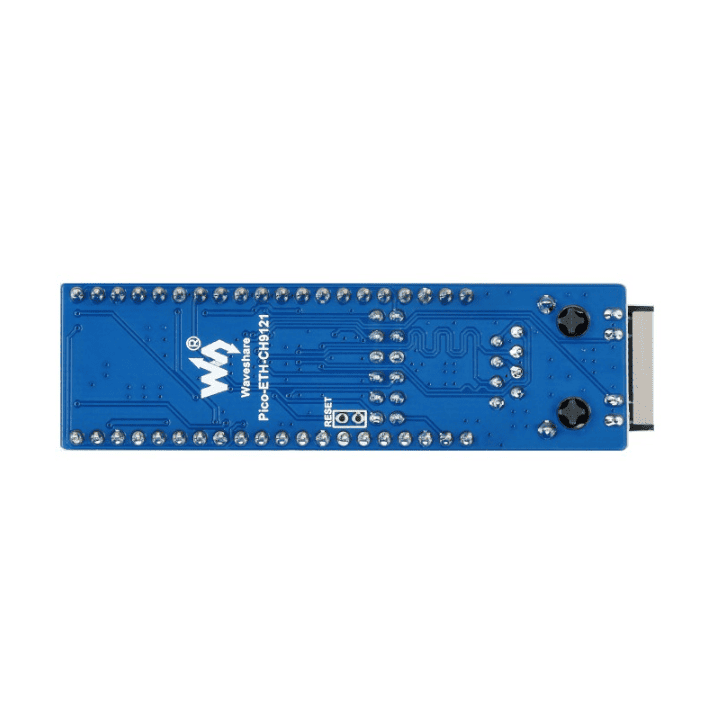

Pico-ETH-CH9121 Ethernet To UART Converter For Raspberry Pi Pico, 10/100M Ethernet, Enabling Network Communication Through UART
Ethernet to UART converter for Pico Supports 2-CH Ethernet To UART Data Transparent Transmission
Features At A Glance
- Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series
- Onboard Ethernet to UART transparent transceiver, 2-CH UART, standalone transparent transmission for each channel
- Onboard jumpers for pin configurations
- Embedded Ethernet MAC and PHY layers
- Bi-direction transparent data transmission between UART and Ethernet
- 10/100M, full-duplex/half-duplex auto-negotiation Ethernet interface, 802.3-compliant
- Auto-MDI/MDIX, detect and switch cable type automatically
- Supports DHCP auto-obtained IP and DNS domain access
- Network parameter configuration like chip operating mode, port, IP, via host computer software or UART command
- Four operating modes: TCP CLIENT, TCP SERVER, UDP CLIENT, UDP SERVER
- Full-duplex or half-duplex UART communication, supports RS485 RX/TX auto switch (external RS485 controller required)
- Supports virtual serial port software (provided)
- KEEPALIVE mechanism support
- Comes with development resources and manual (examples for Pico/Raspberry Pi/Arduino/STM32)
Specifications
OPERATING VOLTAGE |
3.3V/5V |
OPERATING CURRENT |
140mA |
OPERATING MODE |
TCP/UDP |
BAUDRATE |
300bps ~ 921.6Kbps |
UART TTL |
3.3V / 5V compatible |
DIMENSIONS |
74.54 × 21.00(mm) |
OPERATING TEMPERATURE |
-40℃ ~ 85℃ |
STORAGE CONDITION |
-55℃ ~ 125℃ |
Raspberry Pi Pico Header Compatibility Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico
Breakout Key Pins, For Use With Other Host Boards

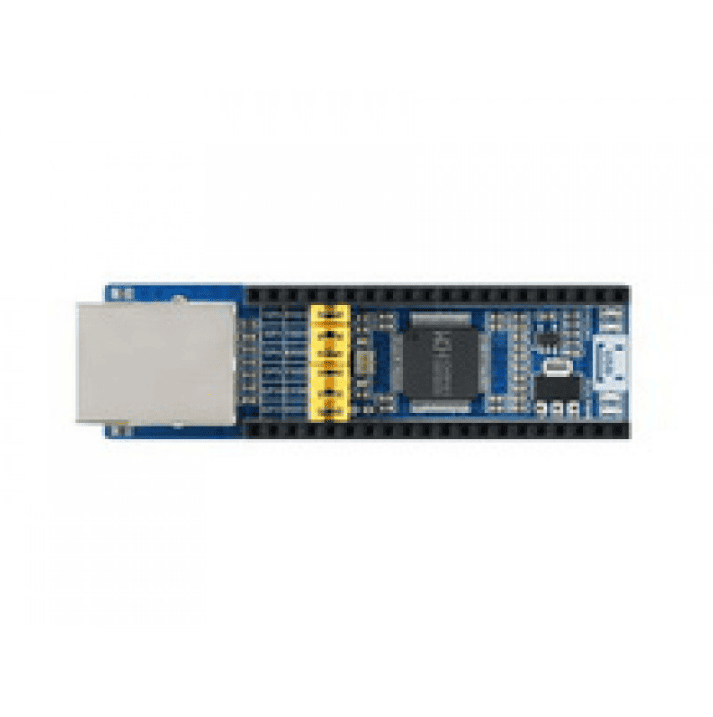

for reference ONLY, Raspberry Pi Pico and Pico-LCD-1.14 are NOT included. What's On Board
- UART 2 connection indicator
- UART 1 connection indicator
- CH9121 running status indicator
- Power indicator
- CH9121 driver chip
- AMS1117-3.3V power IC
- RT9193-18GB power IC
- Ethernet connector
- Interface pin configuration jumpers
Application Scenario Four Operating Modes: TCP CLIENT, TCP SERVER, UDP CLIENT, UDP SERVER
Pinout Definition
Outline Dimensions
- PACKAGE CONTENT
Weight: 0.019 kg
- Pico-ETH-CH9121 x1
