Suitable for Sub-GHz band
| Version | Core1262-HF | |
|---|---|---|
| RF chip | SX1262 | |
| Frequency range | HF: 850 ~ 930MHz | |
| Modulation | LoRa/(G)FSK | |
| Data rate | 0.018~62.5Kbps (LoRa) 0.6~300Kbps ((G)FSK) | |
| Emit power | 22dBm@3.3V | |
| Spreadind factor | SF5 ~ SF12 | |
| Operating voltage | 3.3V | |
| Module power consumption | emitting current: 45mA@14dBm receiving current: 5.3mA@125KHz | |
| Communication bus | SPI | |
| Operating temperature | 0 ~ 85℃ | |

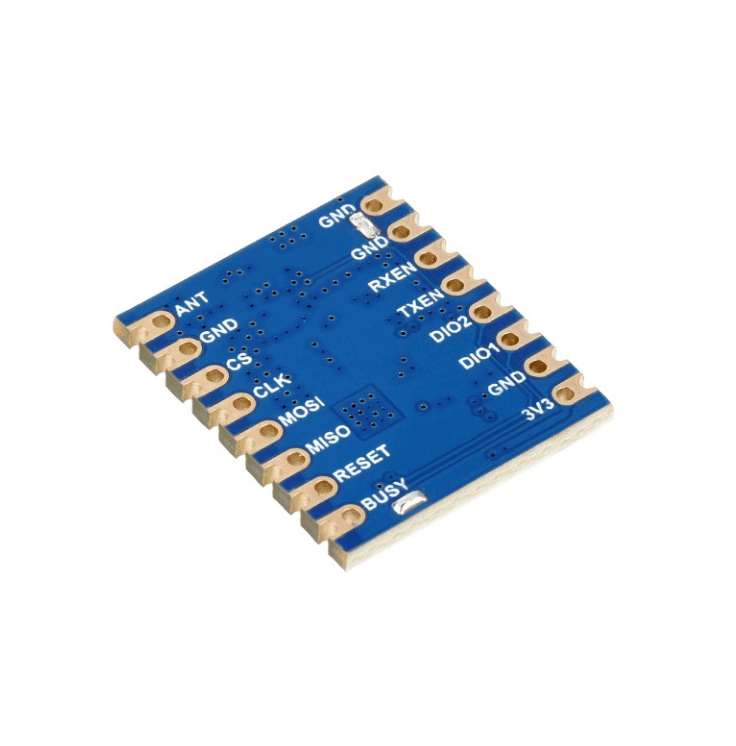

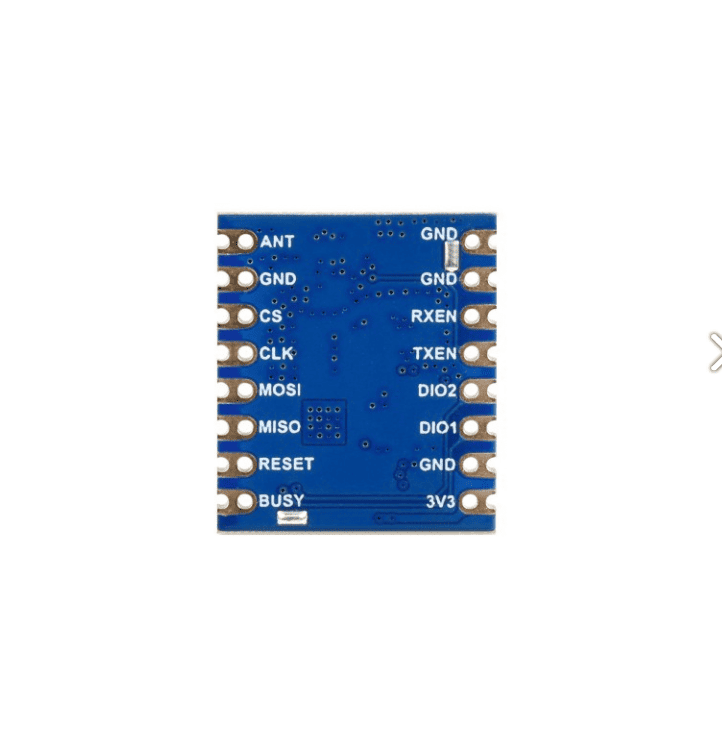

| Connector | castellated edge / solder holes, pitch 2.54mm | |
| Dimensions | 21.00×52.00mm | |
Industrial environment, smart home, and data acquisition...
Both SX1262 and SX1268 can communicate with SX1276 and SX1278, which are still compatible with previous LoRa products after upgrading, and provides higher power efficiency and longer transmission distance.
Compared to traditional communication, LoRa Chirp Spread Spectrum (CSS) and Frequency Hopping Spread Spectrum (FHSS) technologies greatly improve the performance of long-range communication and anti-interference, widely used in military and industrial communication fields.
For stable performance of communication module
Original chip
Industrial grade crystal oscillator
Two connection methods for Antenna

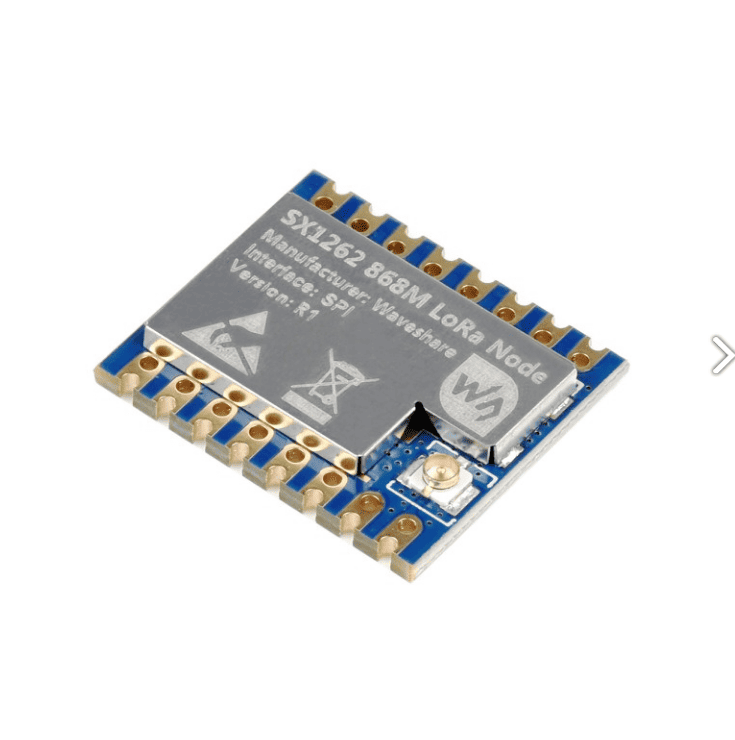

Professional shield Ensure the long time working of the module without frequency shift at the high
and low temperature environment of industry
Sunny weather with an open field, 22dBm emit power, airspeed 0.3kbps,
6dBi magnetic CB antenna, 3m antenna height, 5km distance
