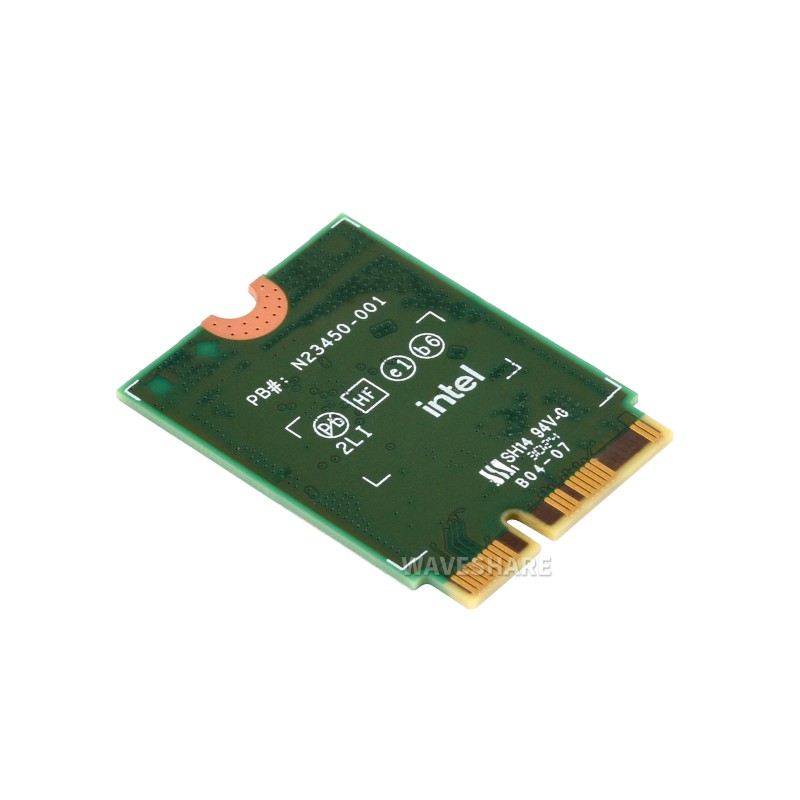

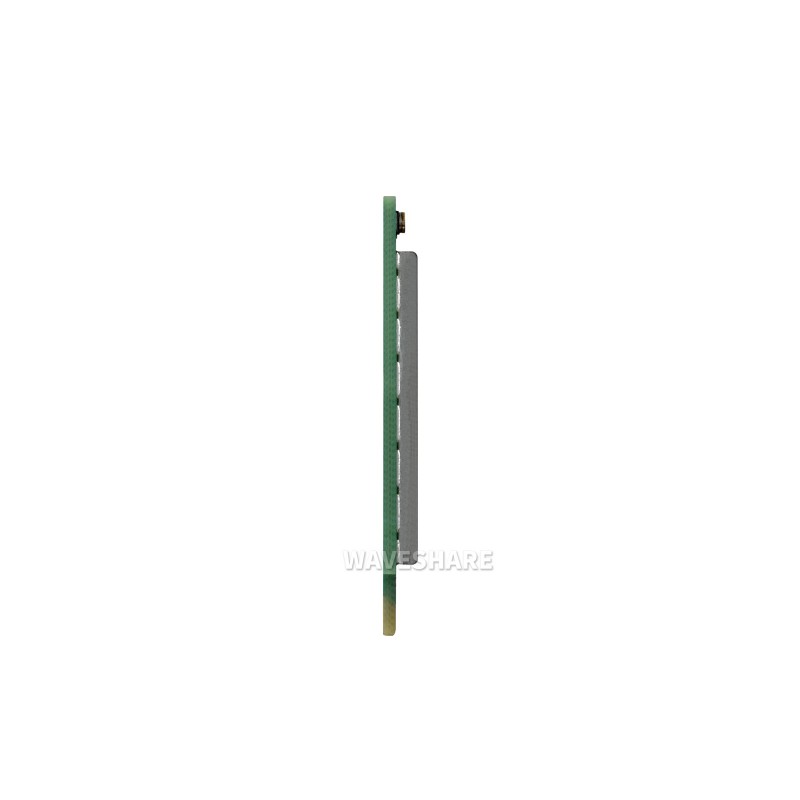

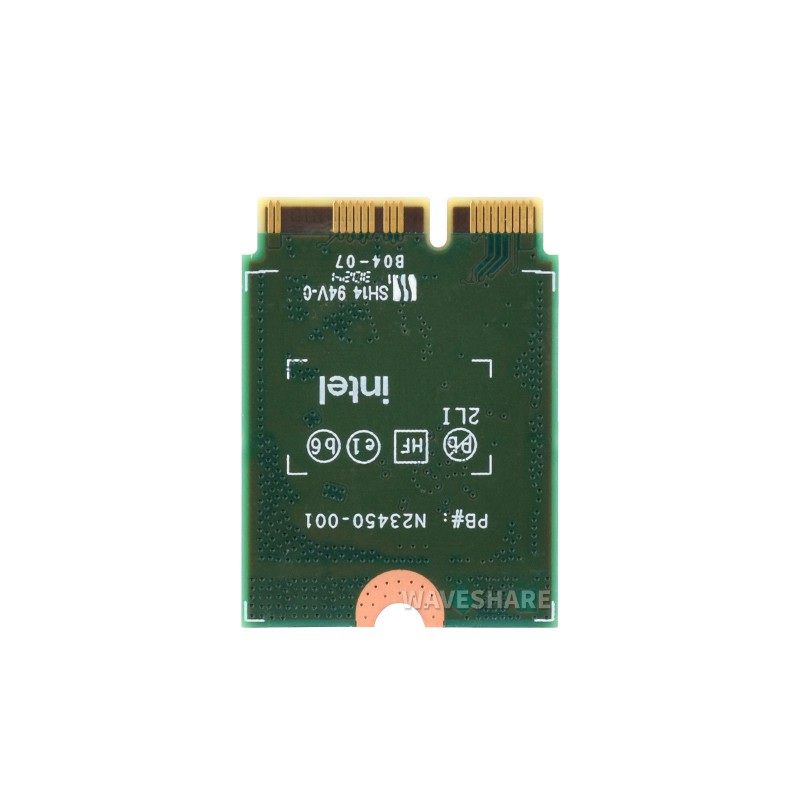

SKU: 29333
Part No.: Wireless-BE200
Korisne informacije: www.waveshare.com/wiki/Wireless-BE200
Wireless BE200 NIC, Gigabit Tri-Band Wi-Fi 7, IEEE 802.11a/b/g/ac/ax/be Standard, Bluetooth 5.4
Wi-Fi 7 Wireless BE200 NIC
Tri-Band Bluetooth 5.4 MU-MIMO
Features at a glance
- Supports IEEE 802.11a/b/g/ac/ax/be wireless standards
- Supports WPA4 for data security
- Tri-band (2.4GHz / 5GHz / 6GHz), up to 574Mbps / 2400Mbps / 5800Mbps
- Bluetooth 5.4 with improved stability and range
- NGFF (M.2 E Key) interface
- MU-MIMO for low-latency multi-device connections
- Supports Linux and Windows 10/11
Parameters Comparison
| Model | AX210 | AX200 | BE200 |
|---|
| Wi-Fi Version |
Wi-Fi 6E |
Wi-Fi 6 |
Wi-Fi 7 |
|---|
| Bluetooth Version |
5.3 |
5.2 |
5.4 |
|---|
| Interface |
NGFF (M.2 A/E Key) |
NGFF (M.2 E Key) |
|---|
| System Support |
Linux, Windows 10/11 |
|---|
| Dimensions |
22.0 × 30.0 × 2.4mm |
|---|
Package Content
Weight: 0.043 kg

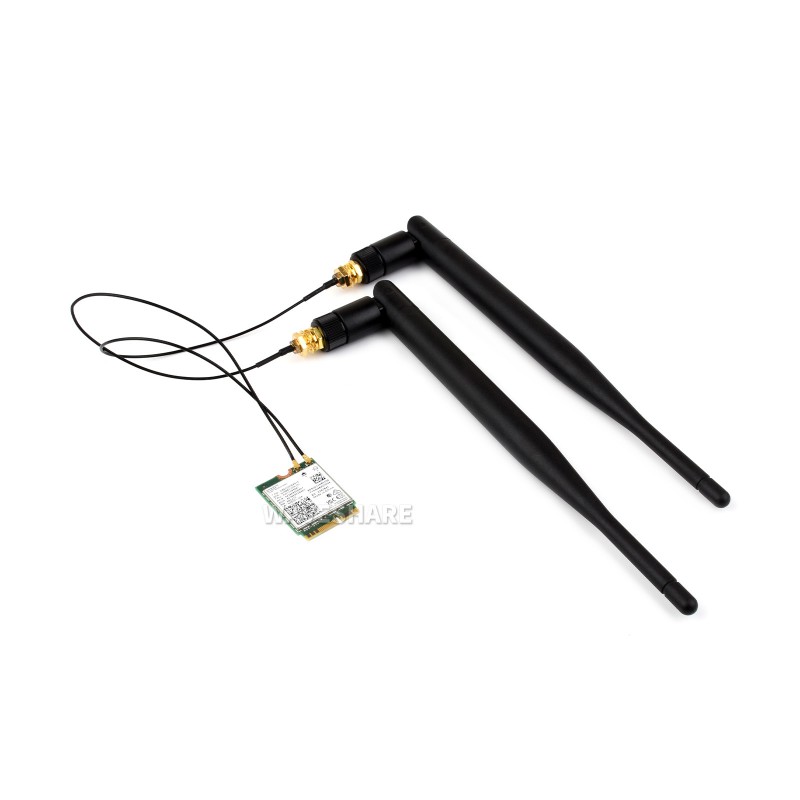

- Wireless-BE200 x1
- IPEX to SMA cable (~20cm) x2
- Antenna x2
