SKU: 23516
Part Number: Wireless-AX210
Korisne informacije
www.waveshare.com/wiki/Wireless-AX210 Wireless AX210 NIC, Gigabit Tri-Band Wi-Fi 6E, 802.11AX Standard, Bluetooth 5.3
Wi-Fi 6E Wireless AX210 NIC Tri-Band *** Bluetooth 5.3 *** MU-MIMO
Features At A Glance
- Adopts sixth-generation 802.11AX Wi-Fi standard, provides better performance and compatibility than the previous generation 802.11AC, lower power consumption and longer service life
- Supports 2.4G/5G/6GHz tri-band, the speed up to 574Mbps in the 2.4GHz band and 2400Mbps in the 5GHz/6GHz band
- Support Bluetooth 5.3 standard, longer transmission distance and better stability
- Adopts NGFF (M.2 A/E Key) interface
- Adopts the new generation of MU-MIMO wireless technology, provides better network quality, faster Internet speed (more than three times), and higher transmission and download efficiency
- Support Linux, Windows 10/8.1/8/7, etc.
AX210 High Performance Wi-Fi 6E Adopts Sixth-Generation 802.11AX Wi-Fi Standard, Provides Better Performance
And Compatibility Than The Previous Generation 802.11AC, Lower Power Consumption And Longer Service Life
Tri-Band Wi-Fi Supports 2.4G/5G/6GHz Tri-Band, The Speed Up To 574Mbps In The 2.4GHz Band And 2400Mbps In The 5GHz/6GHz Band
Bluetooth 5.3, More Stable Connection Signal Transmission Is Stable Without Lag, Can Be Connected To Bluetooth Devices Such As Mobile Phones, Computers, Gamepad, Etc. For Wireless Connection And Transmission
Support MU-MIMO Technology Adopts the new generation of MU-MIMO wireless technology, compared with the traditional SU-MIMO mode, it provides better network quality, faster Internet speed (more than three times), and higher transmission and download efficiency
Interface Introduction
Access To Antenna Via IPEX Connector

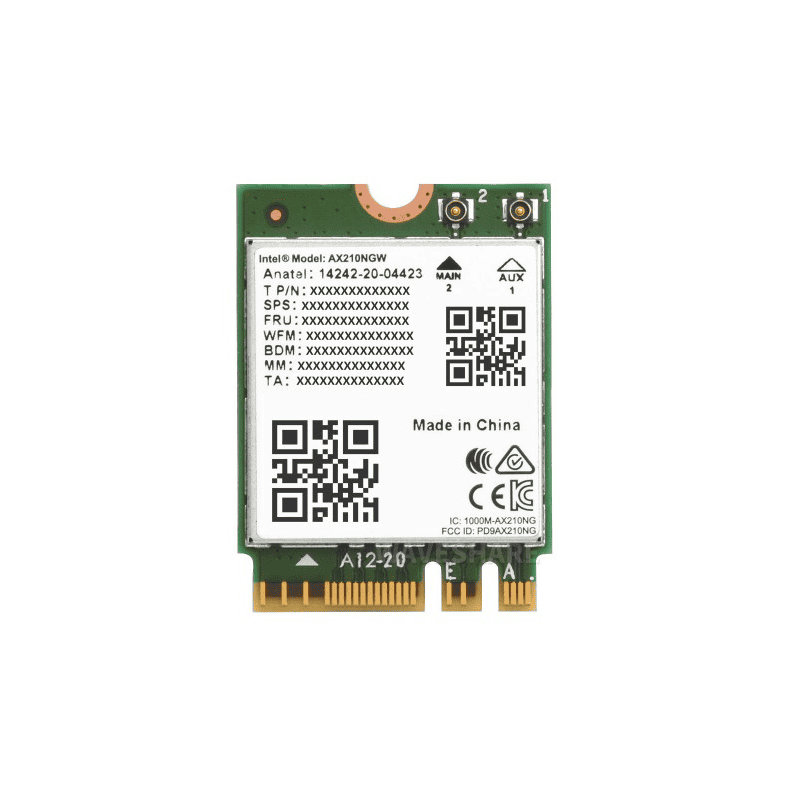

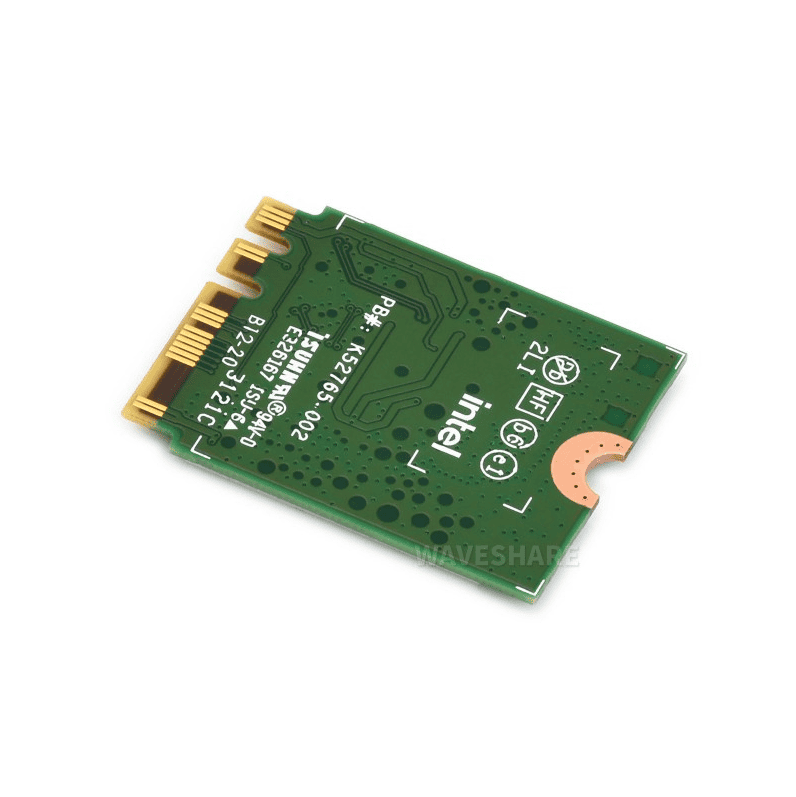

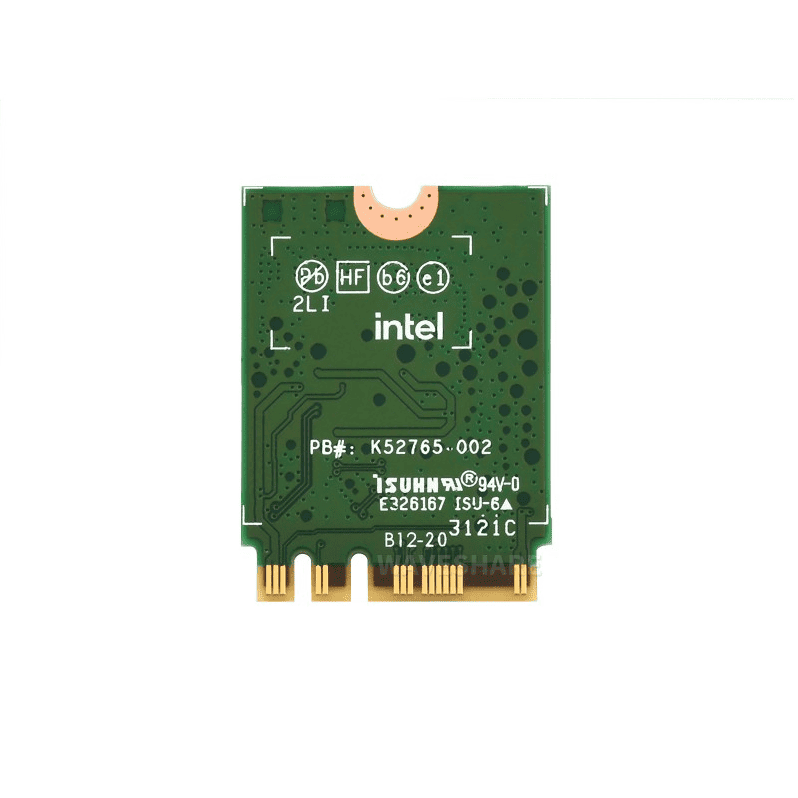

Product Show
Outline Dimensions
Parameters
Model |
AX210 |
|
Wi-Fi Version |
Wi-Fi 6E |
|
Wi-Fi Band |
2.4GHz |
5GHz |
6GHz |
|
|
Wi-Fi Rate |
574Mbps |
2400Mbps |
2400Mbps |
|
|
Interface |
NGFF (M.2 A/E Key) |
Bluetooth Version |
5.3 |
|
Technical Support |
MU-MIMO |
Antenna Connector |
IPEX-4 Connector |
System Support |
Linux, Windows 10/11 |
Dimensions |
22.0 × 30.0 × 2.4mm |

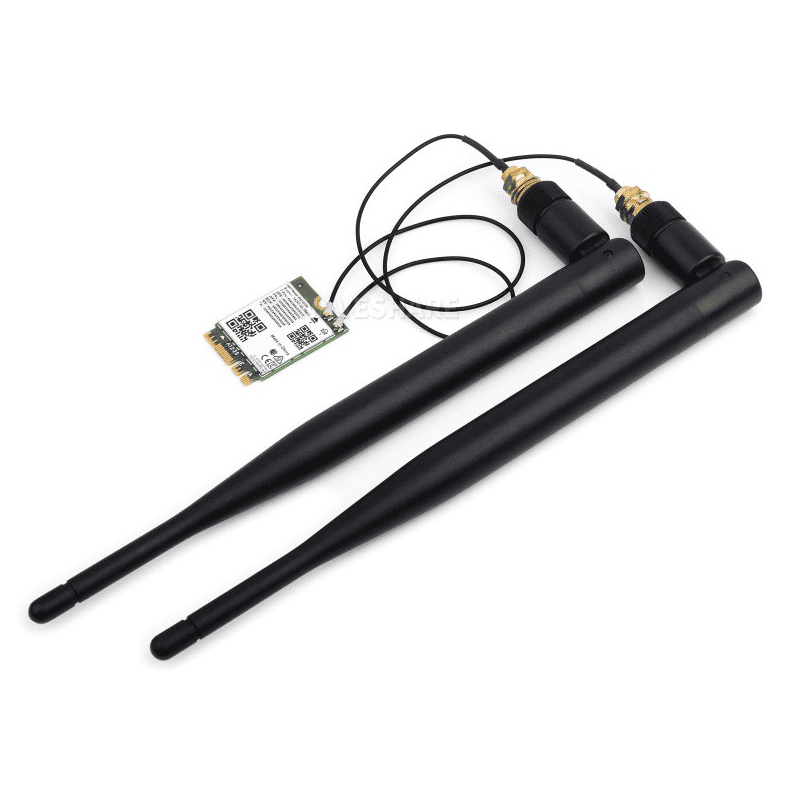

- PACKAGE CONTENT
Weight: 0.039 kg
- Wireless-AX210 x1
- IPEX to SMA cable x2
- Antenna x2
