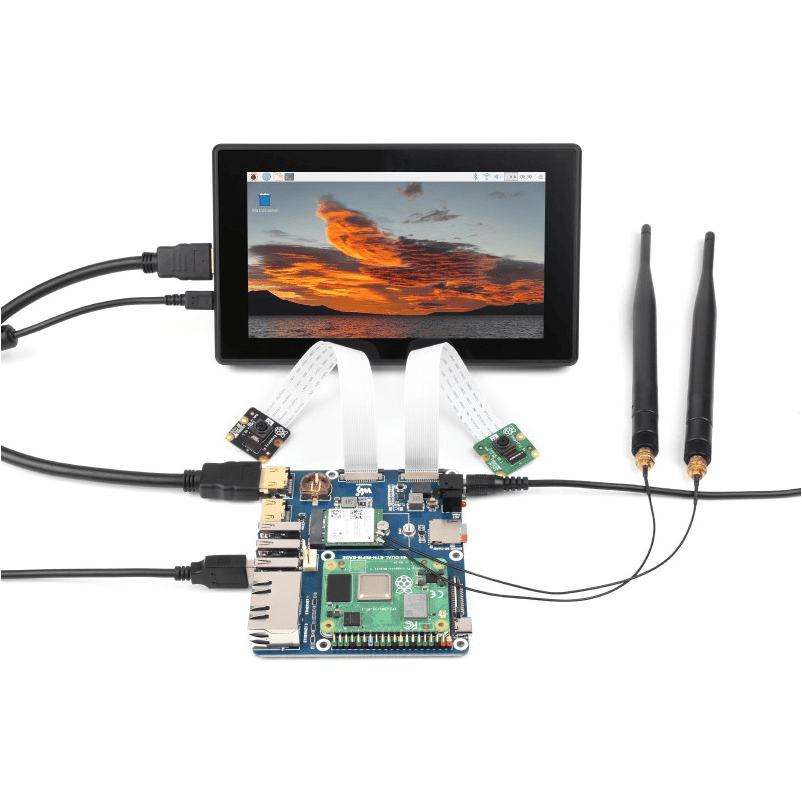

Suitable For Evaluating The Raspberry Pi CM4 Or Being Integrated Into End Products
Compatible With The Following Types Of WIFI Modules With M.2 A/E KEY Interface
Wireless-AX210 WiFi 6E module
Wireless-AX200 WiFi 6 module | CM4 SOCKET | suitable for all variants of Compute Module 4 |
|---|---|
| NETWORKING | Gigabit Ethernet RJ45 connector × 1; 100M Ethernet RJ45 connector × 1 |
| USB | USB 2.0 port × 3 |
| PCIE | M.2 E KEY |
| PIN HEADER | 40PIN GPIO header × 1 |
| DSI DISPLAY | MIPI DSI display port × 1, 15pin 1.0mm FPC connector |
| CSI CAMERA | MIPI CSI-2 camera port × 2, 15pin 1.0mm FPC connector |
| HDMI | HDMI × 2, support 4K 30fps output |
| RTC | Real-time clock with battery socket and ability to wake Compute Module 4 |
| TF CARD SLOT | TF card socket for Compute Module 4 Lite (without eMMC) variants |
| POWER INPUT | 7V-36V |
| DIMENSIONS | 109.0 × 91.5mm |

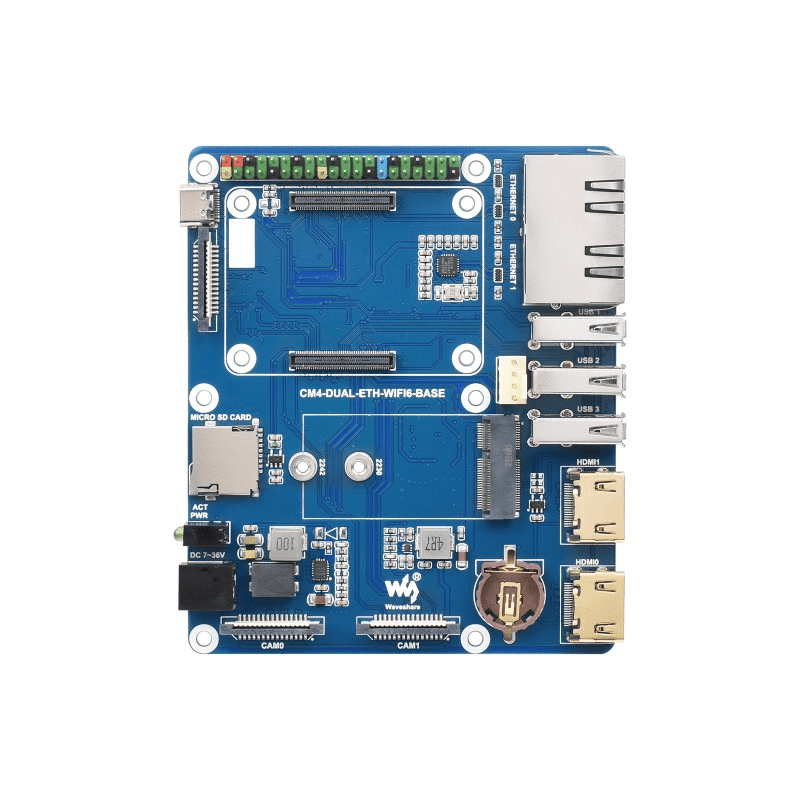

Standard CM4 Socket And Color-Coded Raspberry Pi 40PIN GPIO Header
Suitable For Compute Module 4 Lite/EMMC Series Module
* For reference only, CM4 and WIFI module are not included
Support Access To WIFI Module Such As Wireless NIC AX200, AX210, Etc.
| MODEL |  AX210 |  AX200 | |||
|---|---|---|---|---|---|
| WI-FI VERSION | Wi-Fi 6E | Wi-Fi 6 | |||
| WI-FI BAND | 2.4GHz | 5GHz | 6GHz | 2.4GHz | 5GHz |
| WI-FI RATE | 574Mbps | 2400Mbps | 2400Mbps | 574Mbps | 2400Mbps |
| INTERFACE | NGFF (M.2 A/E Key) | ||||
| BLUETOOTH VERSION | 5.2 | ||||
| TECHNICAL SUPPORT | MU-MIMO | ||||
| ANTENNA CONNECTOR | IPEX-4 Connector | ||||
| SYSTEM SUPPORT | Linux, Windows 10/8.1/8/7 | ||||
| DIMENSIONS | 22.0 × 30.0 × 2.4mm | ||||

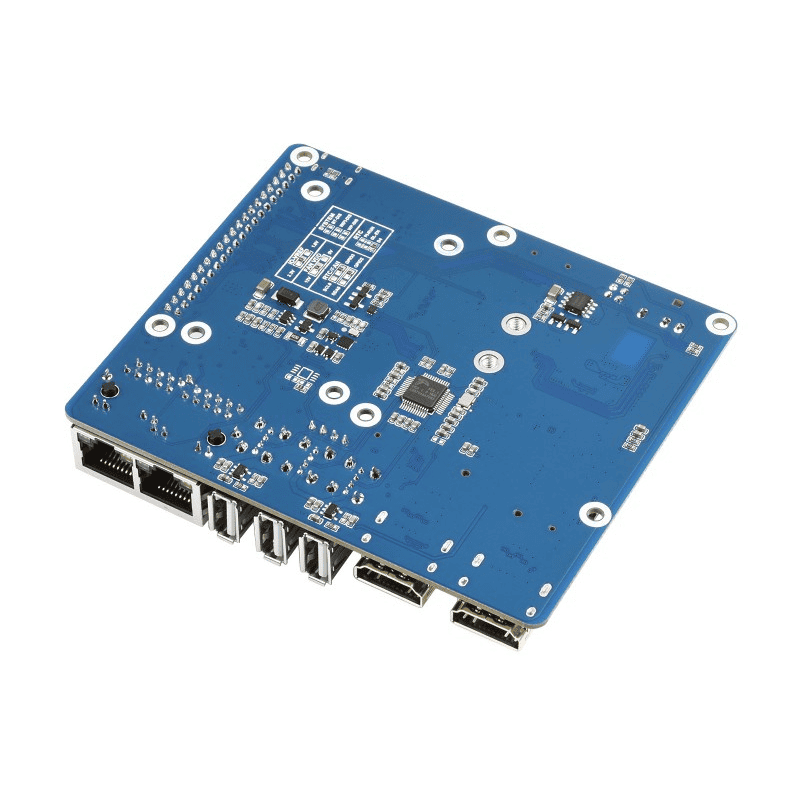

1-Ch Gigabit Ethernet Connector & 1-Ch 100M Ethernet Connector
PACKAGE CONTENT
