SKU: 22809
Part Number: RP2040-One
Korisne informacije:

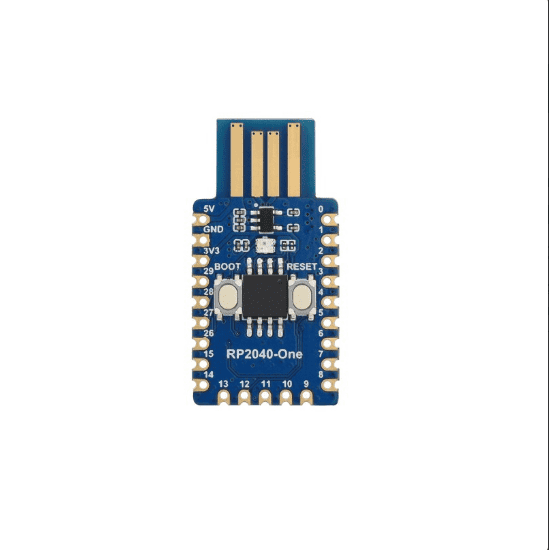

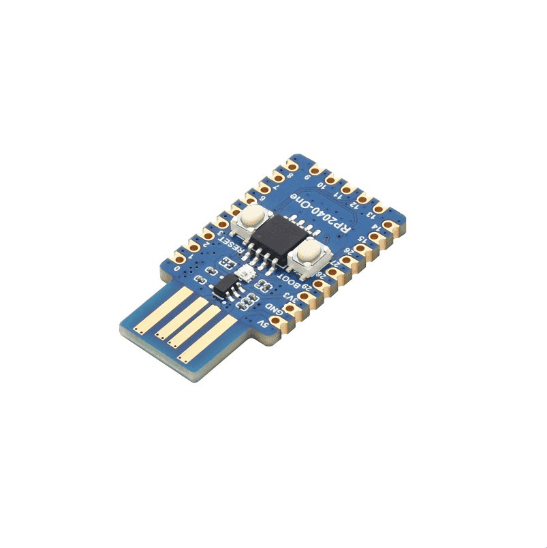

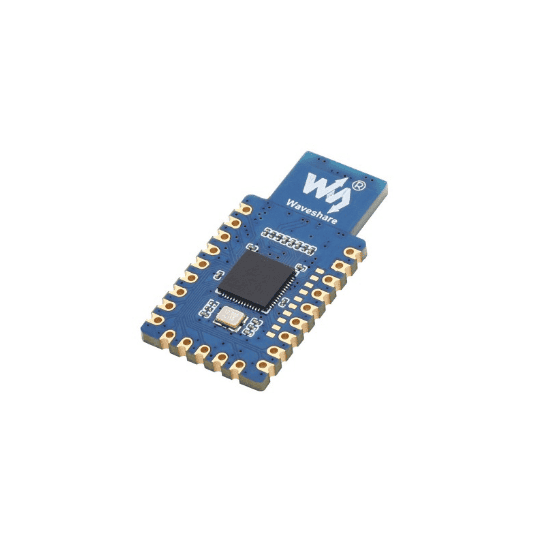

www.waveshare.com/wiki/RP2040-One Waveshare RP2040-One, 4MB Flash MCU Board Based On Raspberry Pi RP2040
RP2040-One a Pico-like MCU board based on Raspberry Pi RP2040
Castellated Module, Suitable For SMD Applications
Board Specifications
- RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
- Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
- 264KB of SRAM, and 4MB of on-board Flash memory
- Castellated module allows soldering direct to carrier boards
- USB 1.1 with device and host support
- Low-power sleep and dormant modes
- Drag-and-drop programming using mass storage over USB
- 29 × multi-function GPIO pins (20× via edge pinout, others via solder points)
- 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
- Accurate clock and timer on-chip
- Temperature sensor
- Accelerated floating-point libraries on-chip
- 8 × Programmable I/O (PIO) state machines for custom peripheral support
Onboard USB-A Plug Plug And Play, No Additional Cables Required
Larger Flash Memory 4MB Flash Available For More Possibilities
C/C++, MicroPython Support Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started
Dual-Core Arm Processor Dual-Core Arm Cortex M0+ Processor, Flexible Clock Running Up To 133 MHz
29 × Multi-Function GPIO Pins Configurable Pin Function, Allows Flexible Development And Integration

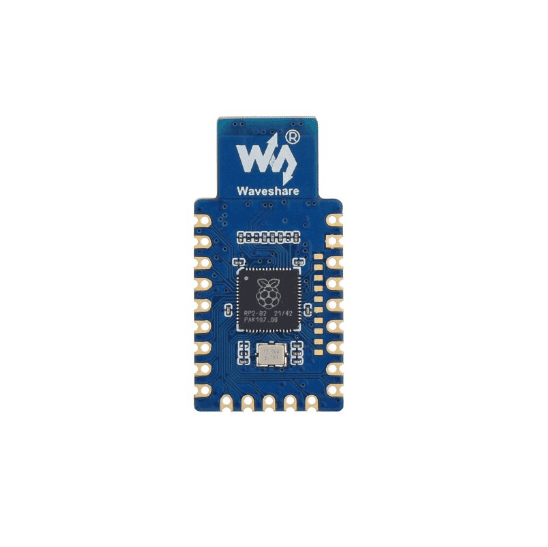

What's On Board
- PCB USB-A port
- RT9013-33GB
500mA low dropout, low noise, ultra-fast LDO
- WS2812
RGB LED
- BOOT button
press it when resetting to enter download mode
- W25Q32JVSSIQ
4MB NOR-Flash
- RESET button
- RP2040
dual-core processor, up to 133MHz operating frequency
- RP2040 pins
10x solder points, including 9x GPIO pins
Outline Dimensions
- PACKAGE CONTENT
Weight: 0.003 kg
Package Contains
RP2040-One x1
