SKU: 23118
Part Number: PI4-ICE-TOWER-FAN-B
Korisne informacije:
www.waveshare.com/wiki/PI4-ICE-TOWER-FAN Ultra Thin ICE Tower Cooling Fan For Raspberry Pi 4B, 4.5mm Copper Tube, Adjustable Speed, Strong Heat Dissipation
Ultra Thin Ice Tower Cooler For Raspberry Pi 4B Ultra Thin, Tower-Style, Speed-Adjustable Fan
for reference only, Raspberry Pi4 is NOT included. Specifications
SUPPORTED PI |
Raspberry Pi 4B |
POWER SUPPLY |
DC 5V input (can be powered from Raspberry Pi) |
STRUCTURE |
ICE Tower-style, 3x4.5mm copper tube super heat dissipation |
RATED POWER |
0.6W @5V, 0.12A |
FAN |
4007 fan, 5300±10% RPM |

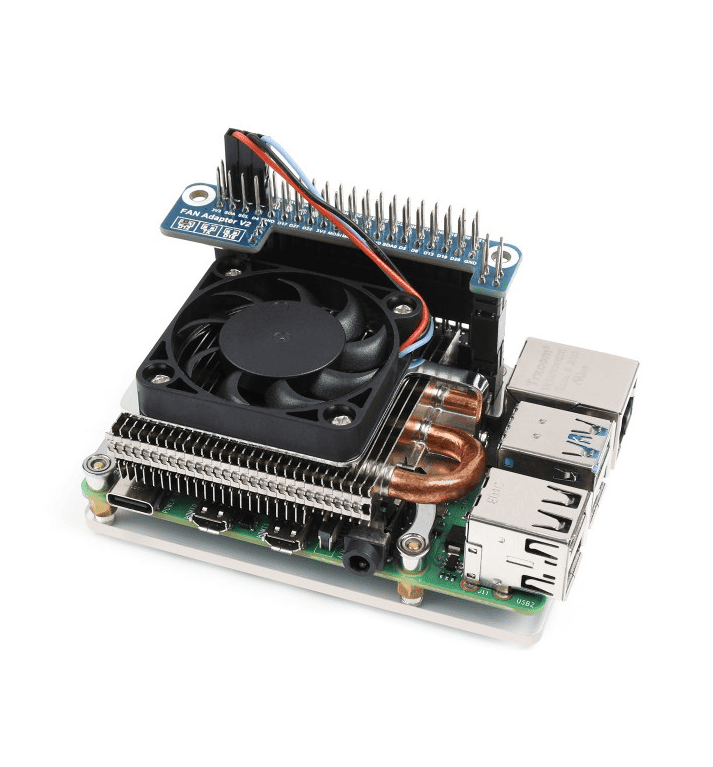

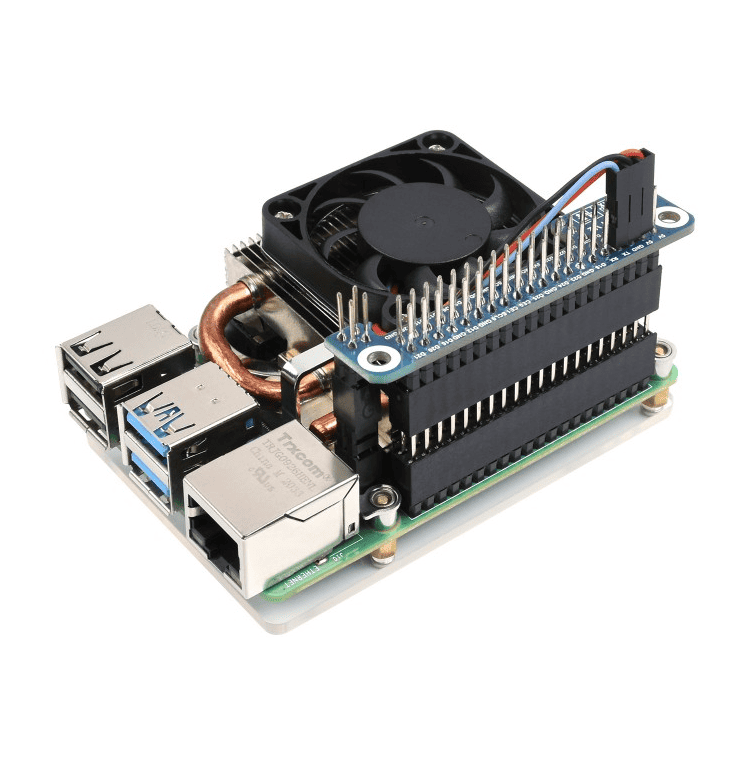

Attaching To The Raspberry Pi 4B Optional Female Pinheader And FAN Adapter V2 Are Available To Facilitate Expansion Modules
for reference only, Raspberry Pi 4B and RS485 CAN HAT (B) are NOT included. Ultra Thin, Easier To Embed With The Same Cooling Effect, The Size Is Thinner And Lighter Than
ICE Tower Fan For Pi And ICE Tower Fan V2 For Pi

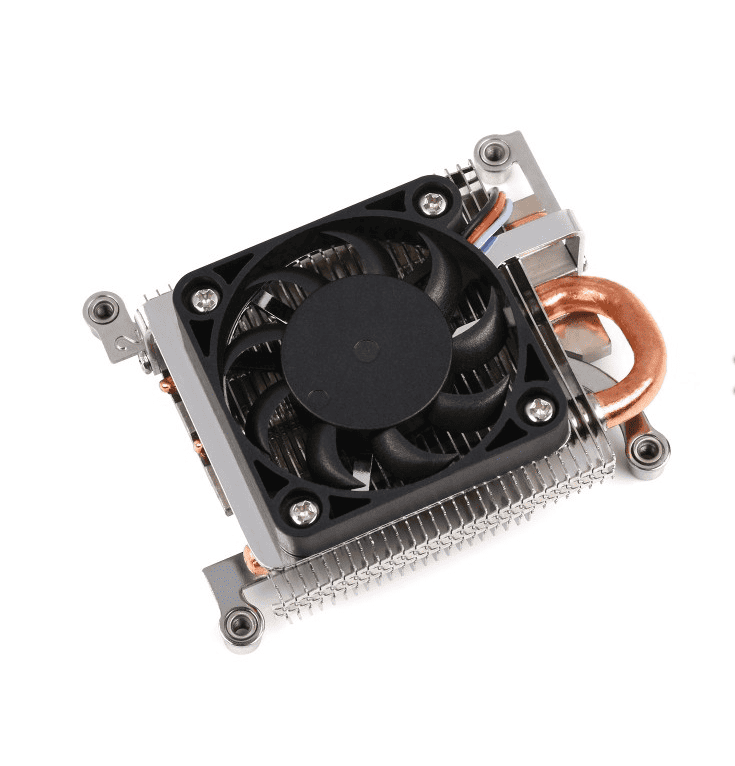

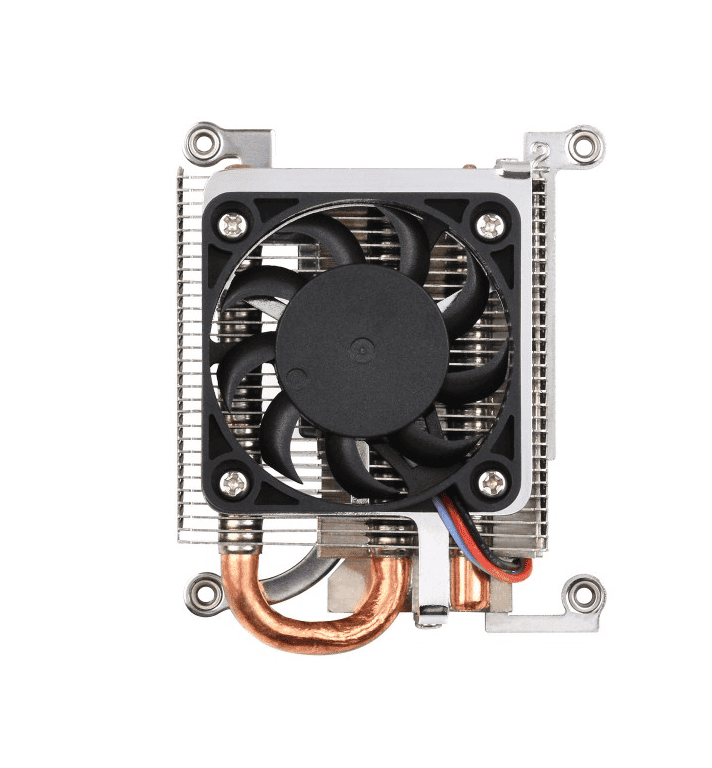

* PWM fan has a version with RGB color LEDs, you can contact our customer service if you need. Structure Of The Heat Dissipation System PWM Speed-Adjustable Fan And 3x4.5mm Copper Heat Tube, Provide Effectively Excellent Heat Dissipation
Fast Cooling Maintain CPU Temperature Below 45°C Even In Extreme Overclocking Conditions
How To Install
- PACKAGE CONTENT
Weight: 0.14 kg
- PI4-ICE-TOWER-FAN x1
- FAN Adapter V2 x1
2x20PIN female pinheader x1
2x2PIN female pinheader x1
- Acrylic bottom panel x1
- Screwdriver x1
- Silicone thermal tape and Screws pack
