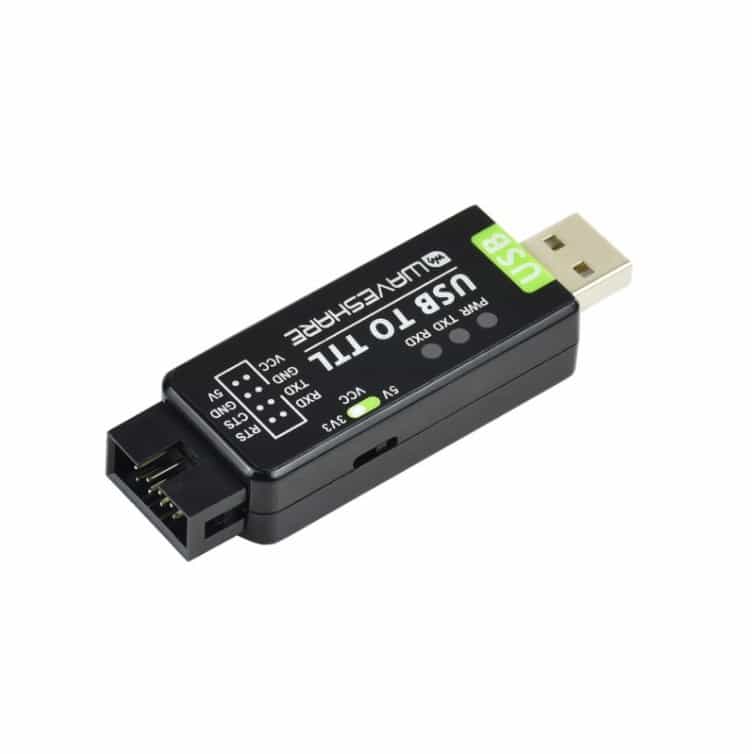

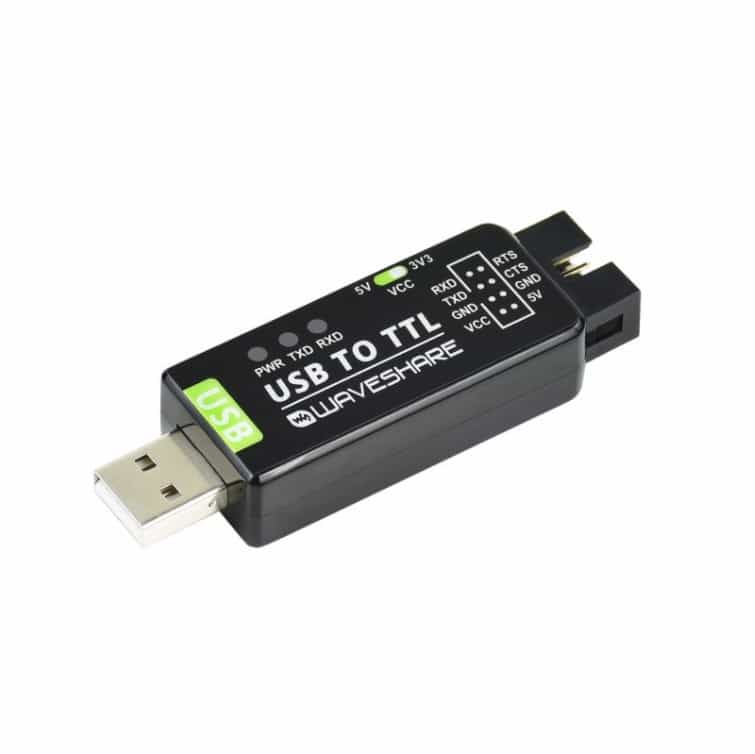

Original FT232RL | Stable Transmission | Multi Devices | Multi Systems
| Product category | Industrial USB TO TTL converter | Host port | USB |
|---|---|---|---|
| Data rate | 300bps ~ 3Mbps | Device Port | UART |
| USB port | Connector: USB-A Protection: resettable fuse, ESD protection | ||
| UART port | Connector: 8PIN fool-proof header Protection: IO protection diode | ||
| Indicator | PWR: power indicator, turns red when USB voltage is detected TXD: TX indicator, turns red while the USB port is sending data RXD: RX indicator, turns red while the device port is receiving data | ||
Adopts Original FT232RL Converter, Providing Better Stability And Compatibility, Enabling Industrial Grade High Performance Communication Between Computer And TTL Devices
Compatible With Popular Systems Like Win7/8/8.1/10, Mac, Linux, Android, WinCE...
Easily Checking The Operating Status, Convenient For Programming / Debugging
| 5V | 5V output |
|---|---|
| VCC | 3.3V or 5V output, configured by switch |
| GND | Ground |
| TXD | Connecting to MCU.RX (signal direction: MCU.RX << FT232 << PC.TX) |
| RXD | Connecting to MCU.TX (signal direction: MCU.TX >> FT232 >> PC.RX) |
| RTS | Connecting to MCU.CTS (signal direction: MCU.CTS << FT232 << PC.RTS) |
| CTS | Connecting to MCU.RTS (signal direction: MCU.RTS >> FT232 >> PC.CTS) |
* measured manually, for reference only
