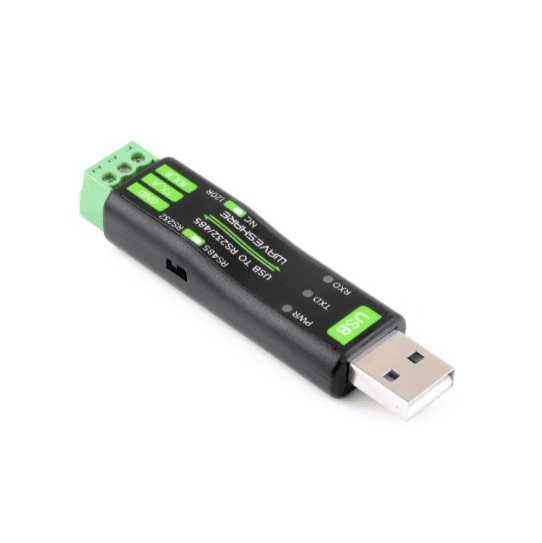

FT232RNL | Stable Transmission | Multiple Devices Applicable
Multi-OS Compatible | Compact Size
| PRODUCT TYPE | USB to RS232/485 converter | |
|---|---|---|
| HOST PORT | USB | |
| DEVICE PORT | RS232/485 | |
| USB | Operating voltage | 5V |
| Connector | Type-A male | |
| Protection | 200mA self-recovery fuse | |
| Transmission distance | About 5m | |
| RS232 | Connector | Screw terminal |
| Transmission distance | About 15m | |
| Transmission mode | Point-to-point | |
| Baud rate | 300bps ~ 921600bps | |
| RS485 | Connector | Screw terminal |
| Direction control | Hardware automatic control | |
| Protection | TVS diode, surge protection & ESD protection (onboard 120R balancing resistor) | |
| Transmission distance | About 1.2km(low rate) | |
| Transmission mode | Point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more) | |
| Baud rate | 300bps ~ 921600bps | |
| LED INDICATORS | PWR | Red power indicator, lights up when there is USB connection and voltage is detected |
| TXD | Green TX indicator, lights up when the USB port sends data | |
| RXD | Blue RX indicator, lights up when the device port sends data back | |
| OPERATING ENVIRONMENT | Temperature | -15℃ ~ 70℃ |
| Humidity | 5%RH ~ 95%RH | |
| OPERATING SYSTEM | Mac, Linux, Android, Windows 11 / 10 / 8.1 / 8 / 7 | |
Onboard Original FT232RNL Chip, Providing Better Stability And Compatibility

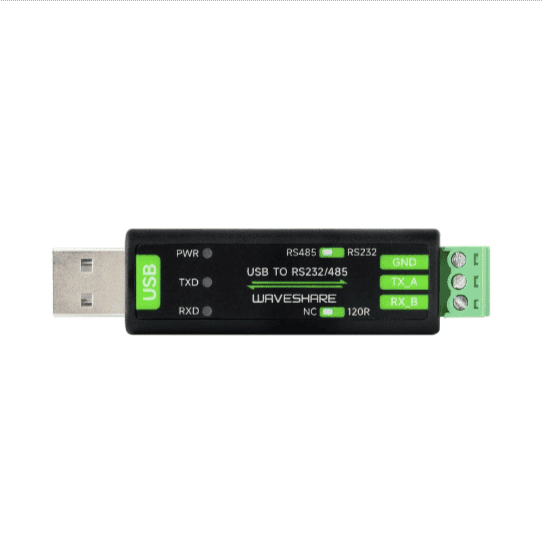

| ① 120Ω resistor switch | enable or disable RS485 terminal 120Ω resistor |
| ② RS232/485 switch | for switching RS232 for RS485 communication |
| ③ RX_ B: | RS232 receive data / RS485 differential signal negative B- |
| ④ TX_ A: | RS232 transmit data / RS485 differential signal positive A+ |
| ⑤ GND: | RS232/485 signal ground |
Supports Mac, Linux, Android, Win11/10/8.1/8/7, Etc.
Outline Dimensions
