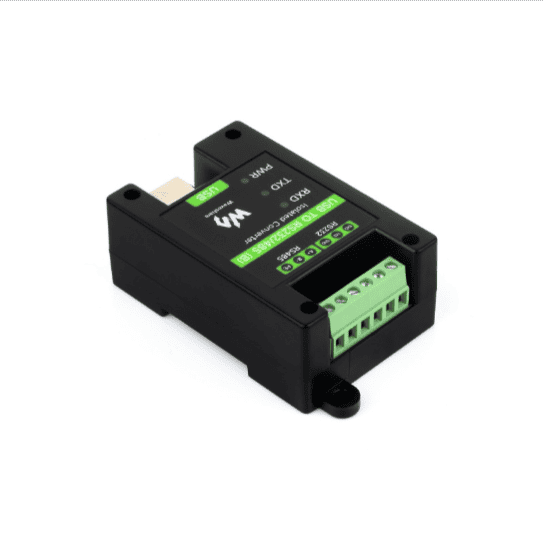

FT232RNL | Stable Transmission | Multiple Devices Applicable | Multi-OS Compatible
| PRODUCT TYPE | Industrial grade isolated USB to RS232/485 converter | |
|---|---|---|
| HOST PORT | USB | |
| DEVICE PORT | RS232/485 | |
| USB | Operating voltage | 5V |
| Connector | USB-B | |
| Protection | 200mA self-recovery fuse, output isolation | |
| Transmission distance | About 5m | |
| ISOLATED RS232 | Connector | Screw terminal |
| Transmission distance | About 15m | |
| Transmission mode | Point-to-point | |
| Baud rate | 300bps ~ 921600bps | |
| ISOLATED RS485 | Connector | Screw terminal |
| Direction control | Hardware automatic control | |
| Protection | 600W lightningproof and surge-suppress, 15KV ESD protection (onboard 120R balancing resistor) | |
| Transmission distance | About 1.2km (low rate) | |
| Transmission mode | Point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more) | |
| Baud rate | 300bps ~ 921600bps | |

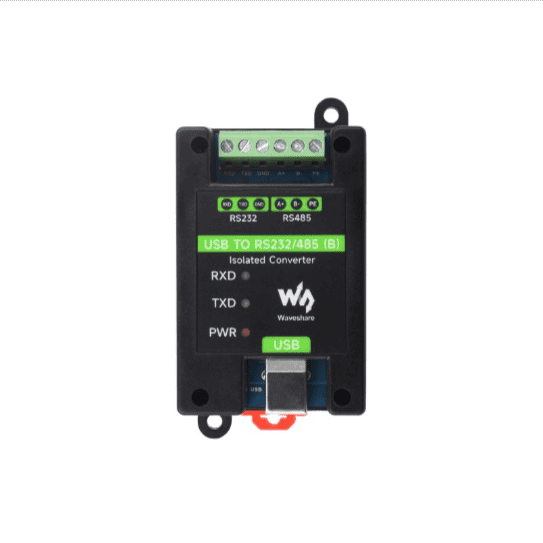

| LED INDICATORS | PWR | Red power indicator, lights up when there is USB connection and voltage is detected |
| TXD | Green TX indicator, lights up when the USB port sends data | |
| RXD | Blue RX indicator, lights up when the device ports send data back | |
| OPERATING ENVIRONMENT | Temperature | -15℃ ~ 70℃ |
| Humidity | 5%RH ~ 95%RH | |
| OPERATING SYSTEM | Mac, Linux, Android, WinCE, Windows 11 / 10 / 8.1 / 8 / 7 | |

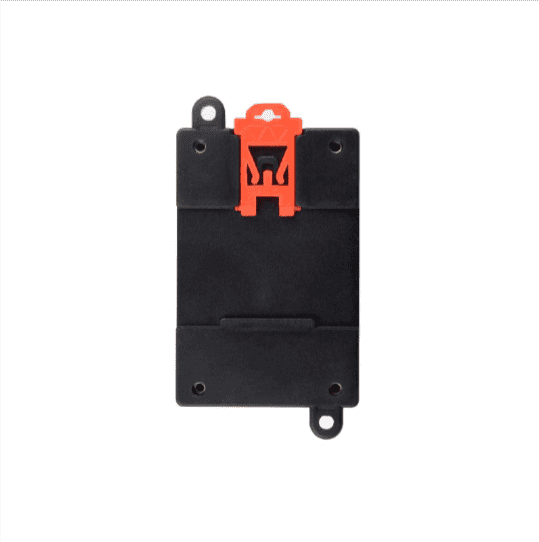

| APPEARANCE | Enclosure | Rail-mount ABS case, suitable for 35mm DIN rail |
| Dimensions | 81.9 × 54.0 × 32.0mm | |
Onboard Original FT232RNL Chips, Providing Better Stability And Compatibility
Onboard TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection. Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance.
Supports Mac, Linux, Android, Win11/10/8.1/8/7, Etc.
