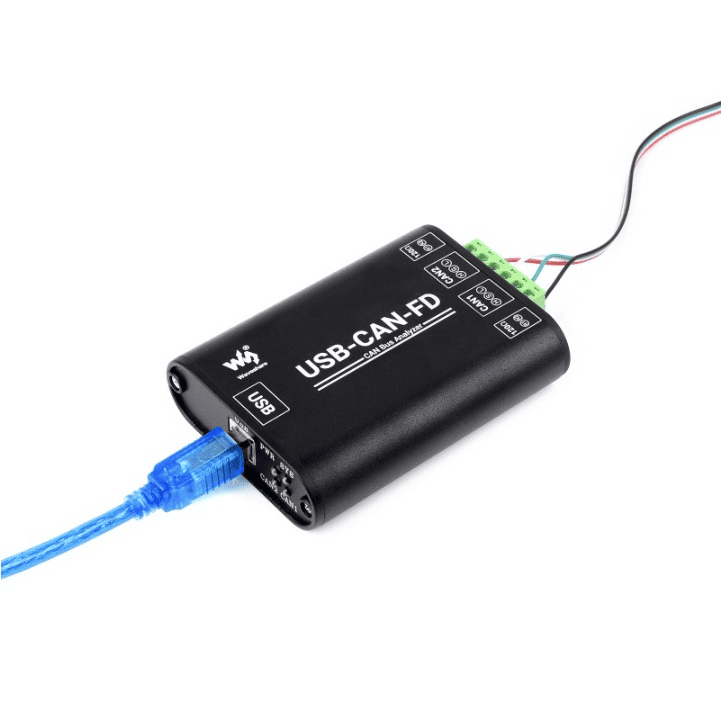

Supports high-speed CAN FD and CAN2.0A/B data communication

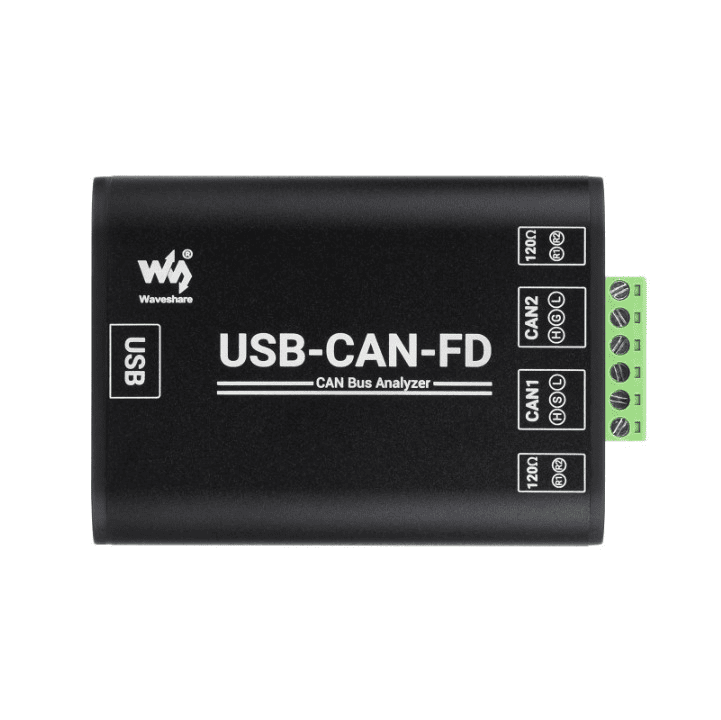

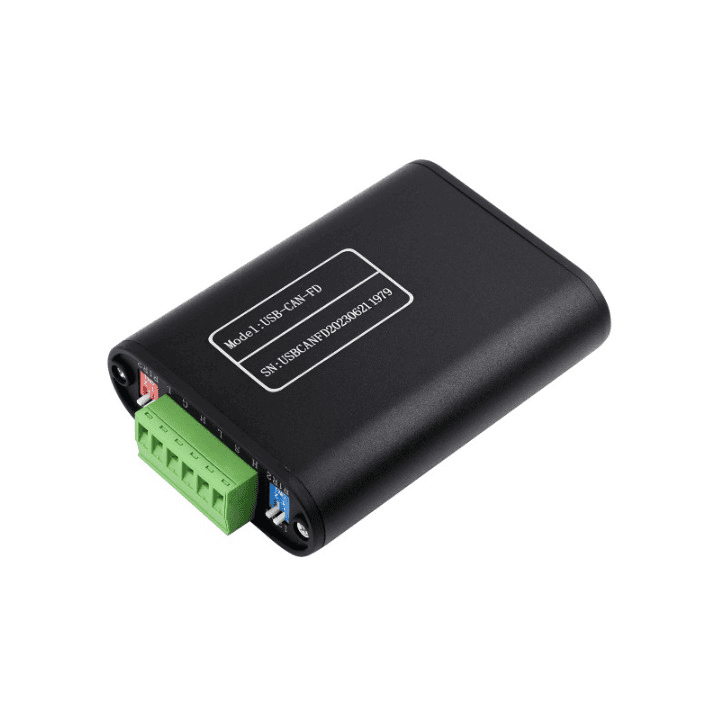

| PRODUCT TYPE | Industrial grade: USB to CAN FD interface converter, CAN/CAN FD bus communication interface card, CAN/CAN FD protocol data analyzer | |
|---|---|---|
| USB | Operating voltage | 5V (directly powered by USB port without external power supply) |
| Connector | USB-B | |
| CAN/CAN FD INTERFACE | CAN/CAN FD channel | Dual-channel: CAN1 and CAN2 (independent and full-isolated, isolated voltage: 3000V DC) |
| Connector | CAN bus screw terminal (OPEN6 5.08mm pitch) | |

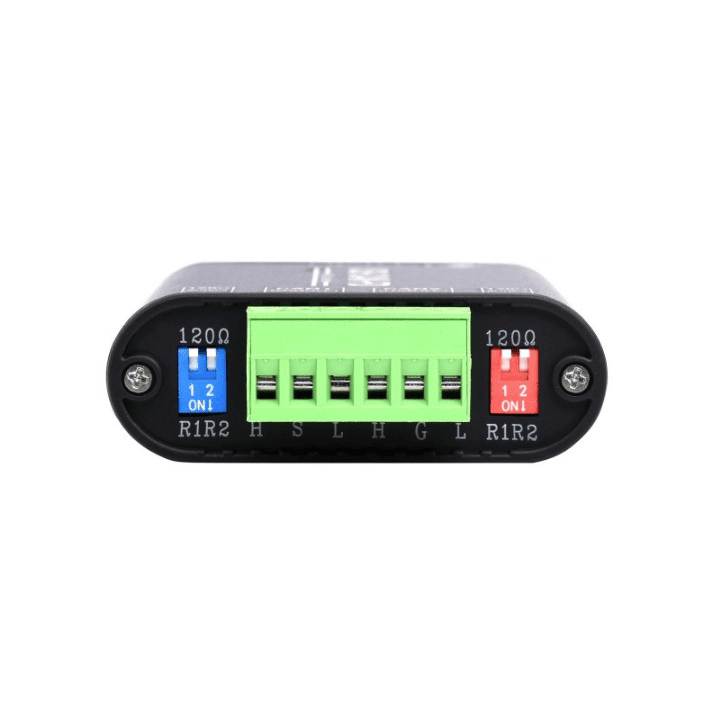

| Terminal resistor | Each CAN/CAN FD channel has two built-in 120Ω terminal resistors, which can be enabled by switch | |
| Baud Rate | 100Kbps~5Mbps (Configurable via software) | |
| Protocol Support | CAN2.0A, CAN2.0B, and ISO 11898-1 CAN FD protocol V.1.0 | |
| Transfer speed | The receiving and sending speed of each CAN/CAN FD channel can reach 20000 frames/s and 5000 frames/s | |
| Transmit buffer | 1500 frames receiving buffer and 64 frames sending buffer per channel (automatically retransmit when the transmission fails) | |

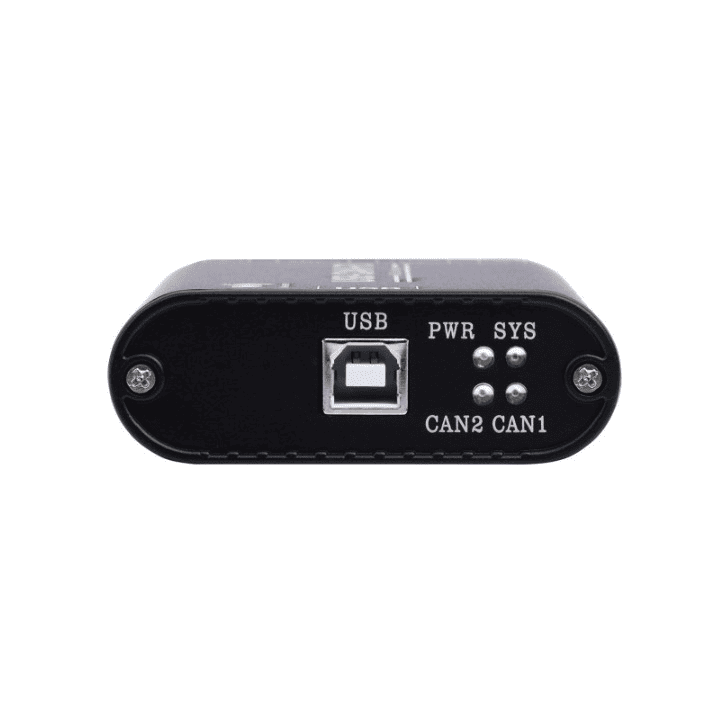

| INDICATORS | PWR | Power indicator |
| SYS | System status indicator, normally off; keeps on when there is a bus error | |
| CAN1 | CAN1 channel indicator (blinking when sending and receiving data) | |
| CAN2 | CAN2 channel indicator (blinking when sending and receiving data) | |
| SYSTEM SUPPORT | Windows | Windows XP/7/8/10/11 (32/64 bits); Linux sa drugim modelom u našoj ponudi |
| OPERATING TEMPERATURE | -40~85℃ | |
| CASE MATERIAL | Aluminum alloy case + 3D flame-retardant insulating sheets on both sides (This design can provide better protection against metal tip discharge, also improves product safety, and extends service life) | |
| DIMENSIONS | 104 × 70 × 25 mm | |
Onboard High-Speed USB2.0 Interface And 2-Ch CAN/CAN FD Bus Interfaces, Support Bi-Directional Transmission, Can Work Independently Without Interfering With Each Other
CAN Baud Rate Is Configurable In The Range Of 100Kbps~5Mbps
Supports Baud Rate Calculation, Auto-Detection, And Setting Via The Configuration Tool
Supports CAN 2.0A, CAN 2.0B, ISO11898-1, And CAN FD Protocol Specification V.1.0, Supports Standard And Extended Frames
Provides Examples For Secondary Development Projects On Various Mainstream Development Platforms: C#, VC, Delphi, Qt, LabVIEW, Python/Python-Can
Adopts Microchip Original Controller And 32-Bit MIPS M4K® Core, Up To 80MHz Frequency. High Performance, Stable And Reliable
Adopts High-Speed Signal Isolators, DC-DC Dual Power Isolation, USB, CAN1 And CAN2 Three-Terminal Full Isolation, Higher Communication Security And Stability
Supports one PC to run multiple CAN FD analyzers at the same time without interfering with each other, up to 128 devices after testing. It is suitable for monitoring multiple CAN networks at the same time with one monitoring device, or for data comparison and verification and so on.

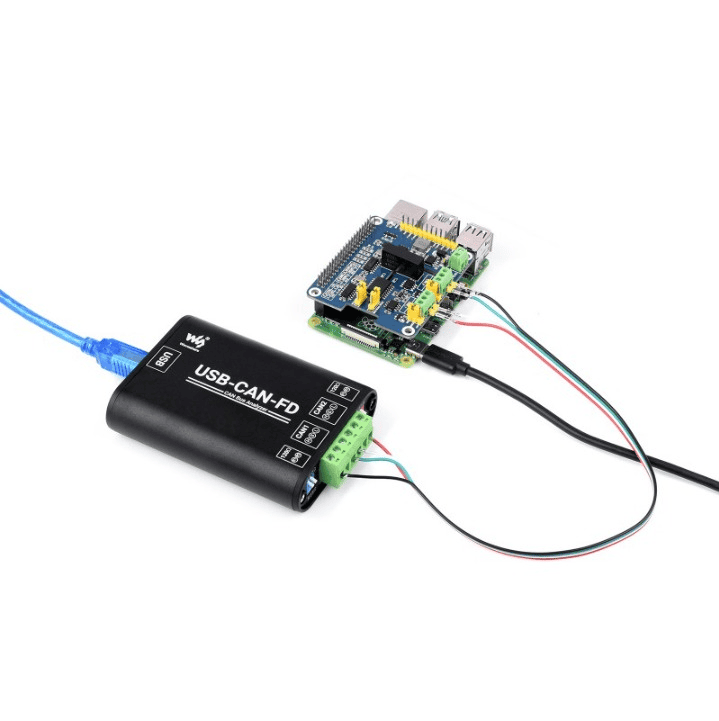

* for reference only, the Raspberry Pi 4B and 2-CH CAN FD HAT are Not included.
