USB TO 4CH TTL

Šifra: w21619

1.790,00 RSD

Cena sa PDV

Lista želja ?

Unesi količinu Samo 2 na stanju

Dodaj u korpu

Kategorija: industrijski konverteri
Težina po komadu: 0.191 Kg

SKU: 21619
Part Number: USB TO 4CH TTL
Brand: Waveshare

Korisne informacije: USB_TO_4CH_TTL

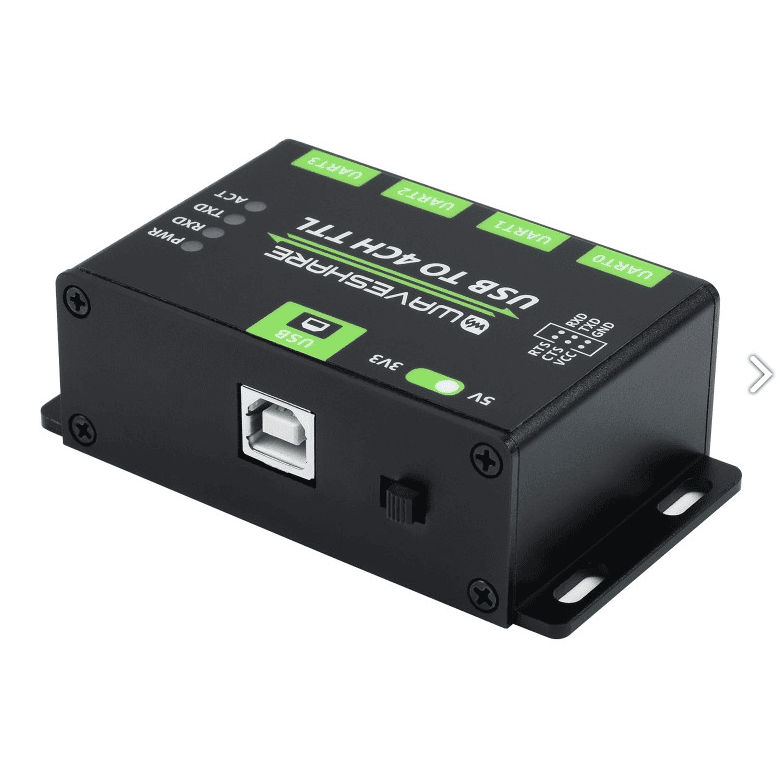

Industrial USB TO 4CH TTL Converter, USB To UART, Multi Protection Circuits, Multi Systems Support

Industrial USB TO 4CH TTL UART CONVERTER

Stable Transmission | Multi Devices | Multi Systems

Features At A Glance

Extending USB to 4CH TTL (UART) with hardware flow control, allows concurrent and independent communication for each channel

Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance

Onboard IO protection circuit for surge suppress and ESD protection, safe and stable communication

Onboard TTL serial port 3.3V and 5V voltage level switch, allows selecting TTL level

Aluminium alloy enclosure with oxidation dull-polish surface, CNC process opening, solid and durable, well-crafted

Quality USB-B connector, and IDC connector with fool-proof design

Specifications

HOST PORT	USB
DEVICE PORT	UART
BAUDRATE	1200bps ~ 460800bps
USB PORT	Connector: USB-B Protection: resettable fuse, ESD protection
UART PORT	Connector: 6PIN fool-proof header Protection: IO protection diode

Multiple Protection, Safe And Stable

Onboard Resettable Fuse And Protection Diode, Provides Over-Current/Over-Voltage Proof, Improves Shock Resistance; Onboard IO Protection Circuit For Surge Suppress And ESD Protection, Safe And Stable Communication

Multiple Systems Support

Compatible With Popular Systems Like Win7/8/8.1/10/11, Mac, Linux, Android...

Application Examples

Suitable For Industrial/Office Conditions With Strict Requirements For Operating Environment And Devices

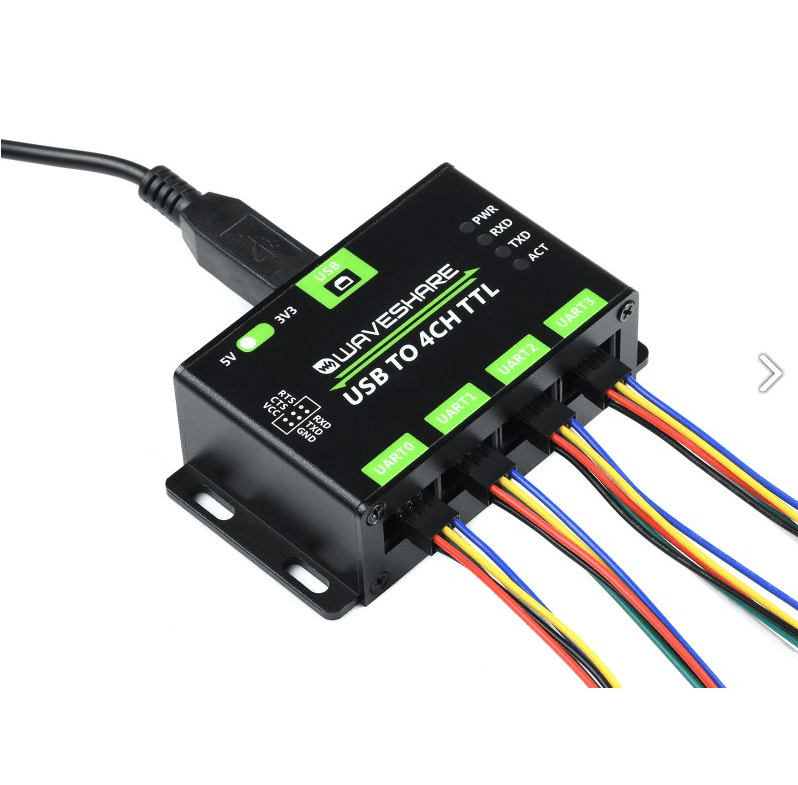

Extending USB to 4CH TTL UART
Industrial chip, 4CH TTL, allows concurrent and independent communication

Small size, easy installation
Flexible installation, suitable for sorts of devices to extend TTL interfaces

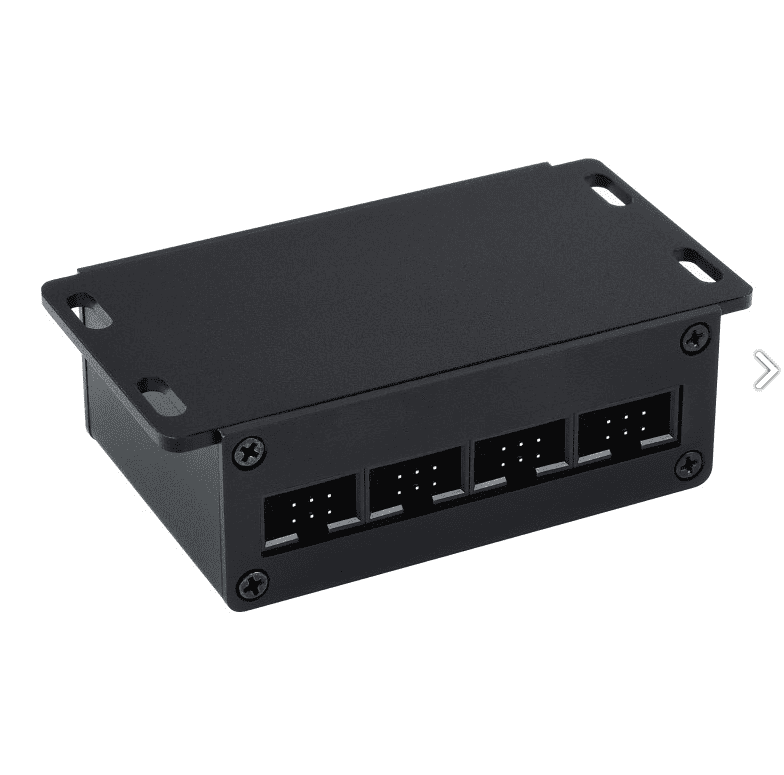

Reversed mounting holes
Easy wall mount, industrial alloy enclosure, solid and durable

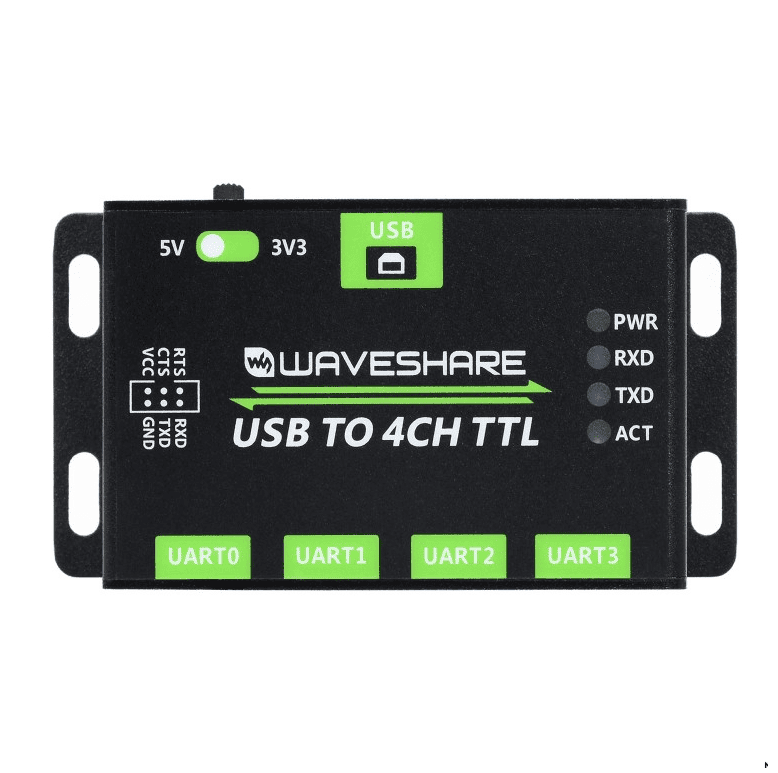

Interface Introduction

Indicators Description

PWR	power indicator, lights up while the USB is connected and voltage is detected
RXD	receiving indicator, lights up while the device port is receiving data
TXD	sending indicator, lights up while the USB port is sending data
ACT	status indicator, lights up while the converter is properly operating
