USB3.2-Gen1-HUB-2IN-4OUT

Šifra: w23929
Waveshare
Naši proizvodi ne prate standardne veličine - pre poručivanja obavezno proverite tabelu veličina.
2.590,00 RSD
Cena sa PDV

Trenutno nedostupno za online naručivanje

Obavesti me kada proizvod bude dostupan!
SKU: 23929
Part Number: USB3.2-Gen1-HUB-2IN-4OUT
Brand: Waveshare

Korisne informacije: www.waveshare.com/wiki/USB3.2-Gen1-HUB-2IN-4OUT
Industrial Grade USB HUB, Extending 4x USB 3.2 Ports, Switchable Dual Hosts, Multi Protections

Industrial USB 3.2 HUB, Switchable
Dual Hosts


Sharing USB devices for two hosts, free up the crowded desktop




Features At A Glance




  • 4x extended USB ports, switchable two inputs, sharing USB devices for two hosts

  • Industrial grade HUB chip, adopting MTT technology, allows stable and smooth 4x concurrent USB connections

  • ESD protection for each USB port, preventing electric surge damage and data loss

  • Over-voltage protection, effectively preventing other high voltage power input from damaging the connected devices

  • Multiple protection circuits: over-voltage, over-current, short circuit, over-temperature, reverse current, under voltage lock-out, 8KV ESD protection, filtering protection, etc.

  • Industrial grade metal case, rugged & durable, with mounting holes for easy installation





Specifications

































STANDARD high speed USB 3.2 Gen 1
DATA RATE up to 5Gbps
USB OUTPUT 5V@Imax:1.2A, USB-A connector
USB HUB INPUT 5V, switchable dual USB-A connectors (standalone power supply, no crossed power)
EXTERNAL POWER DC power supply terminal 7~36V
(Additional power supply is required for this HUB when connecting to high power devices)
OPERATING ENVIRONMENT -40℃ ~ 85℃
OS SUPPORT Mac OS (8.6 or above), Linux(2.4.20 or above), Windows 11 / 10 / 8.1 / 8 / 7 / XP

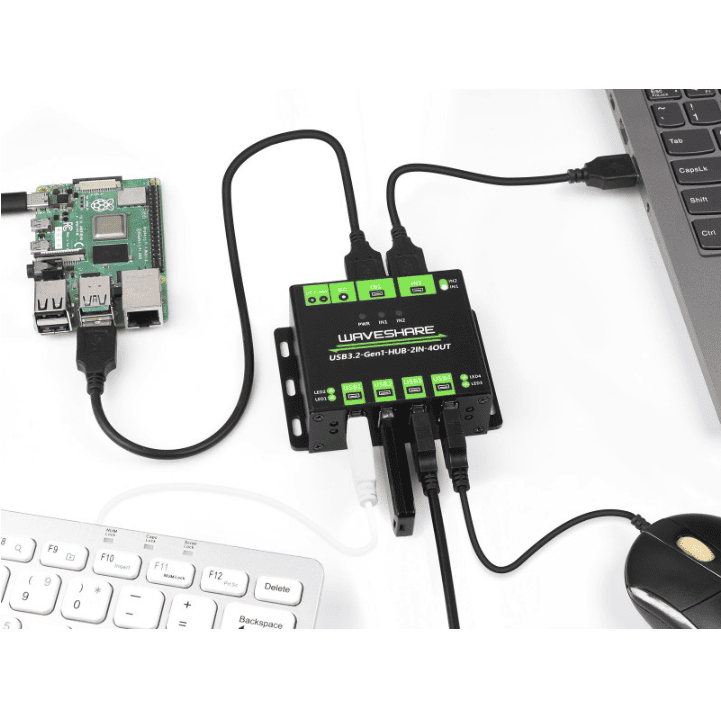

Sharing USB Devices For Two Hosts


Switch the active host by the handy switch at any time, easily control two hosts (say, the computer and Raspberry pi) by the same keyboard and
mouse, no more two sets of keyboard and mouse on the table, keeping your working environment neat and tidy.




Multiple Protections, More Safe


Over-Voltage, Over-Current, Short Circuit, Over-Temperature, Reverse Current, Under Voltage Lock-Out, 8KV ESD Protection, Filtering Protection...




Multiple OS Support, Plug & Play


Compatible With OS Including: Mac OS, Linux, Windows 11 / 10 / 8.1 / 8 / 7 / XP...




Application Environments


Suitable For Industrial/Office Environments With Higher Level Device Requirements




2 in 4 out

small size, easy installation

mounting support

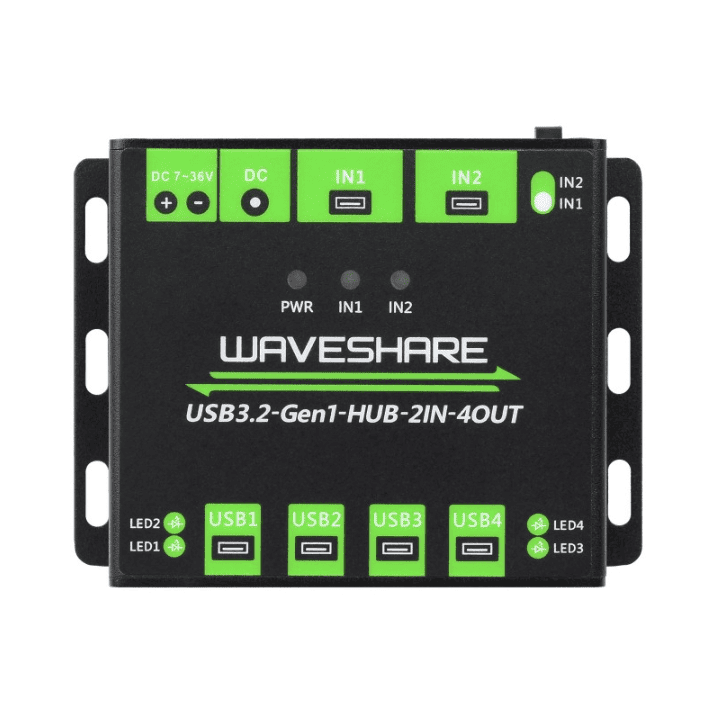

Interface Introduction

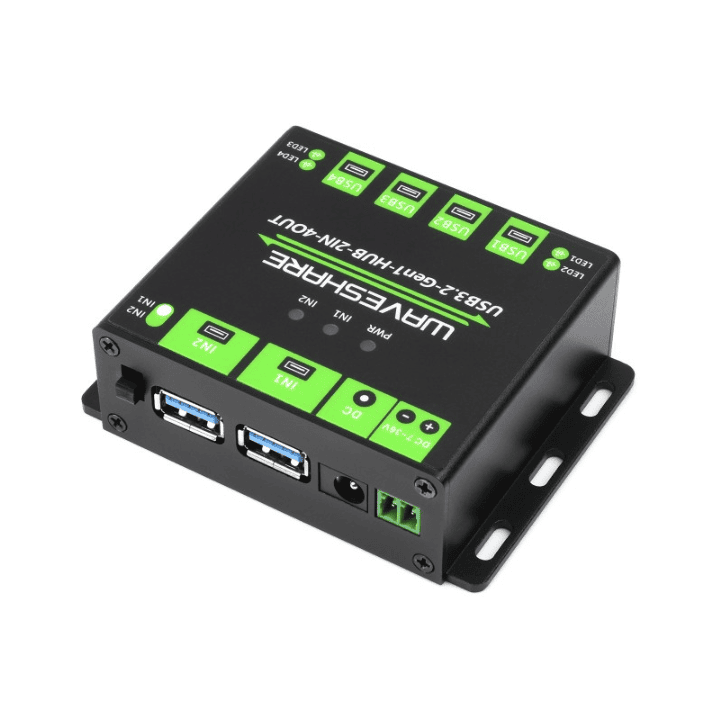

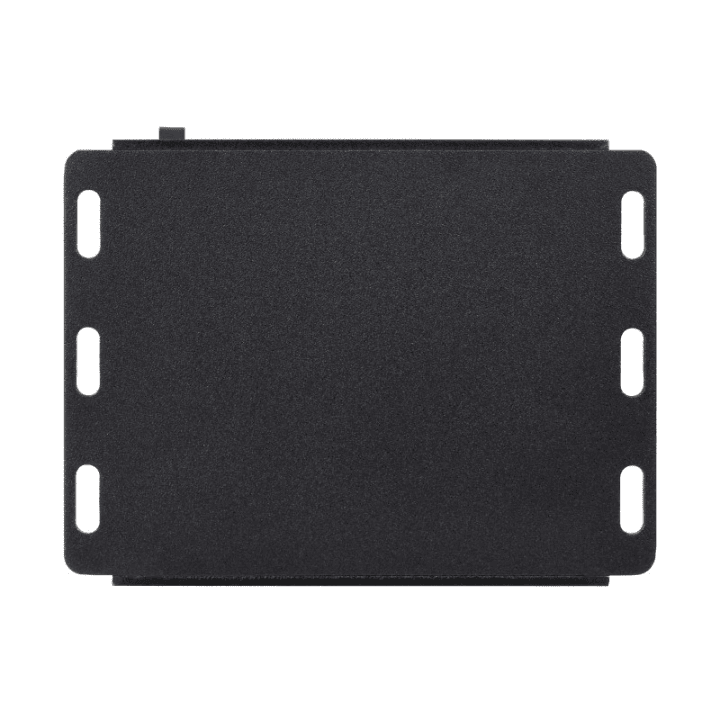

Product Show







Outline Dimensions





PACKAGE CONTENT



Weight: 0.08 kg


  1. USB3.2-Gen1-HUB-2IN-4OUT x1

  2. Dual plug USB3.0 cable x2



1
2
