UPS HAT (D) (EN) Expansion Board

Šifra: w25567

2.890,00 RSD

Cena sa PDV

Lista želja ?

Unesi količinu Samo 3 na stanju

Dodaj u korpu

Kategorija: mini PC
Težina po komadu: 0.107 Kg

hout any trouble

* for reference only, please refer to the Package Content for the detailed part list

Dynamic Path Management, More Stable Power Supply

When connected to the external power supply, the system will be powered and the battery will be charged at the same time, and the battery will be disconnected after being fully charged to avoid battery life damaging caused by frequent charging and discharging

When the external power supply is insufficient, the battery will provide power output together with the external power supply at the same time to ensure system normal operation

When the external power supply is connected, the system will keep running normally even when the battery fails or is taken out. And automatically switch over to batteries output if the external power supply is unavailable, keeps the system running without any trouble

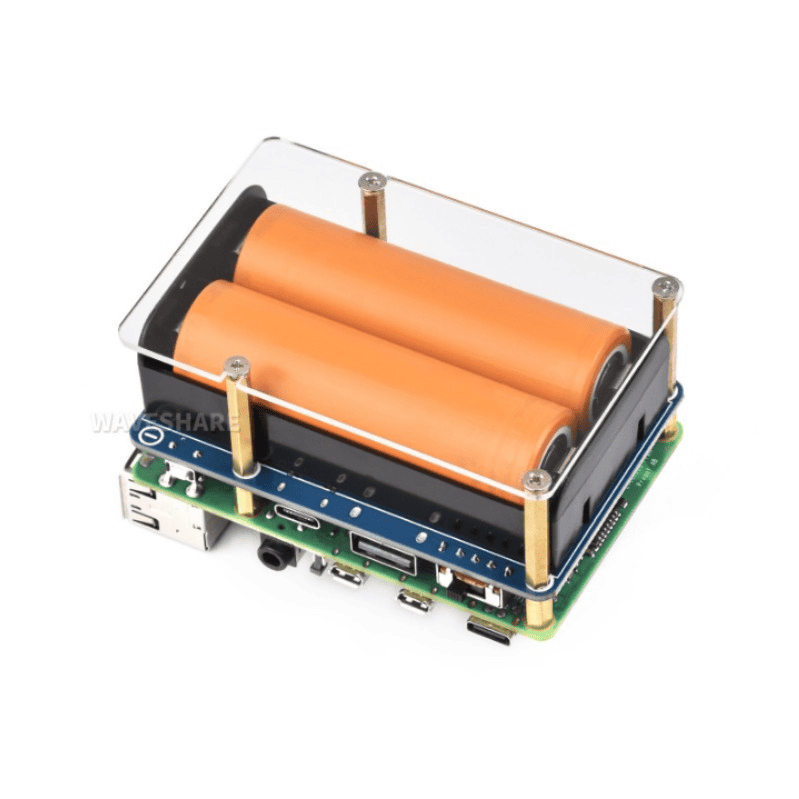

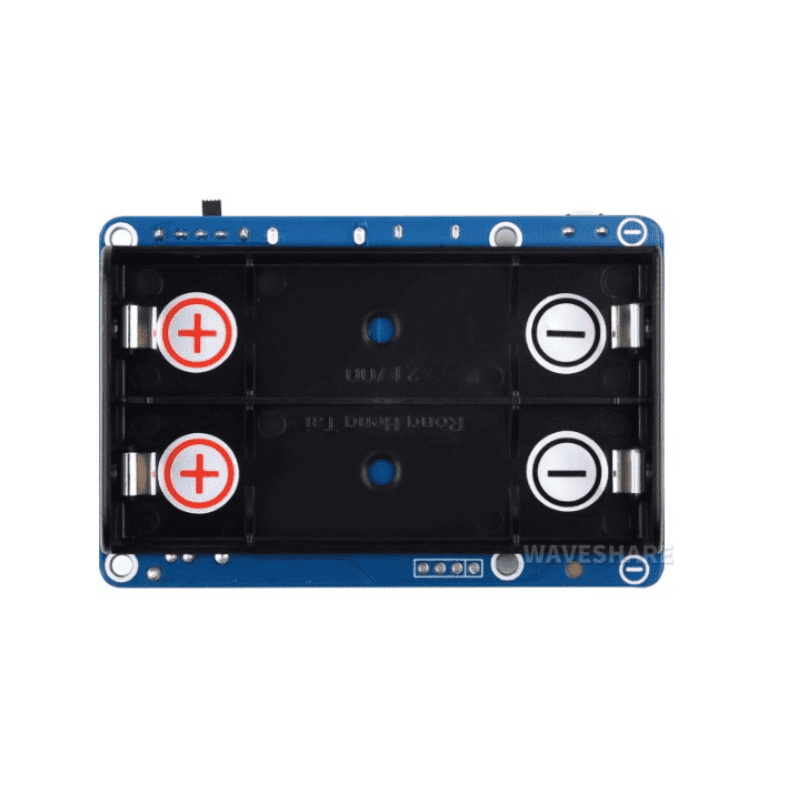

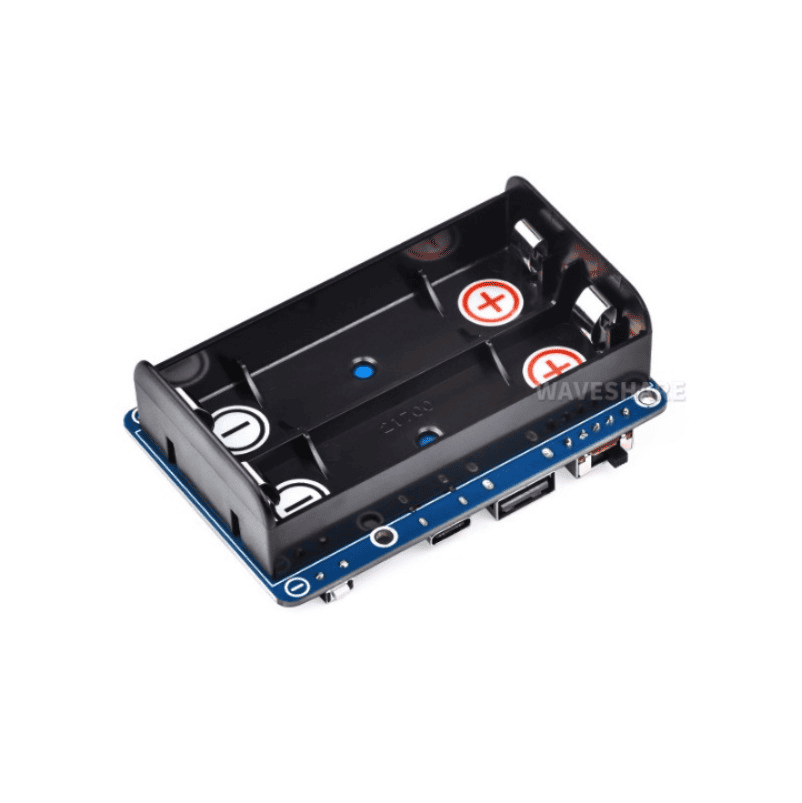

Supports 21700 Large Capacity Li Battery, Longer Battery Life

Onboard Warning Indicators, Easy To Check If The Battery Is Connected Correctly

Pogo Pins Connector

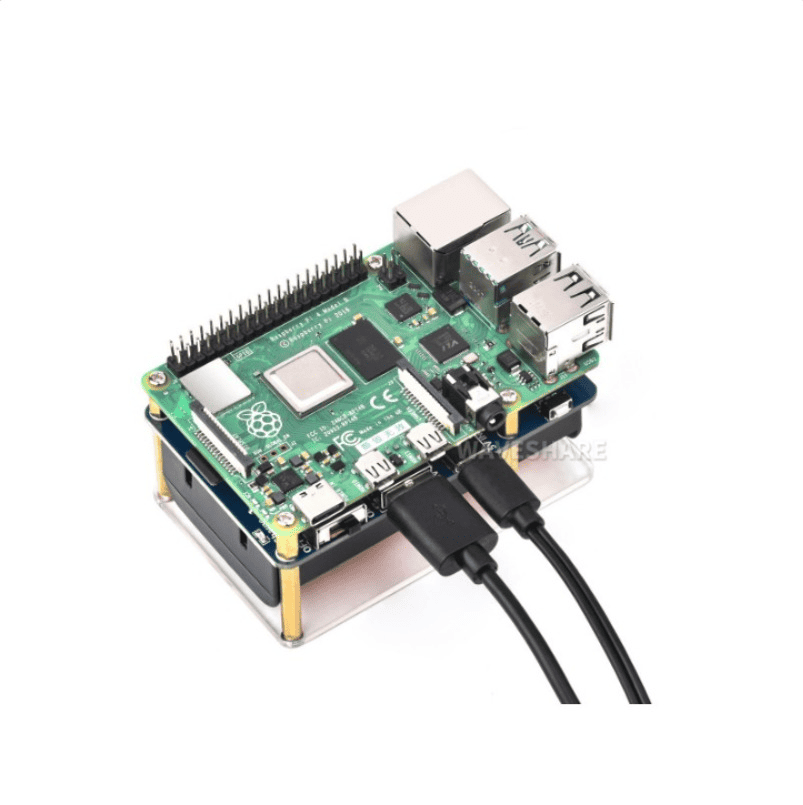

Powering The Raspberry Pi Via Pogo Pins, Without Using Any GPIO Resource,
Compatible With Raspberry Pi 3 / 3B+ / 4B, Etc.

Real Time Monitoring

Monitoring The Batteries Voltage, Current, Power, And Remaining Capacity Via I2C

When the voltage dips too low, it is possible to save files properly and then shut down the system by software, to avoid any data loss

for reference ONLY, the Raspberry Pi and Fan HAT are NOT included.

Supports Battery Level Display And Detecting Power Connection

Easy To Check The Battery Status In Real-Time, And Automatically Shutdown When The Battery Level Is Low. Onboard MCU Chip For Detecting Power Connection And Automatically Rebooting The Raspberry Pi

Onbaord USB Interaces

Adopts USB Type-C Interface For Charging And The USB Type-A Interface For 5V Power Output, Convenient For Powering Other Boards

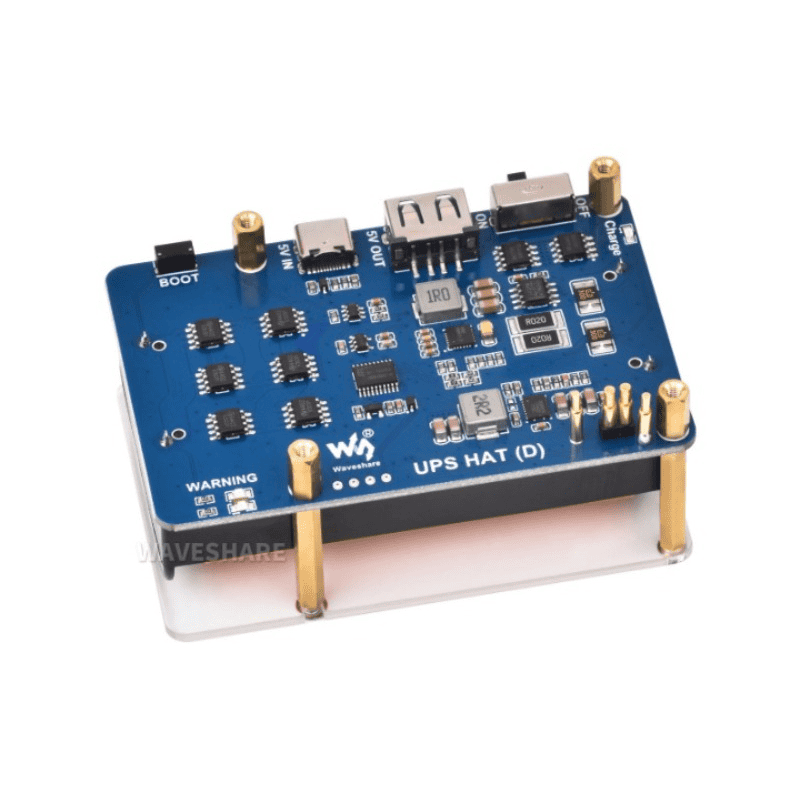

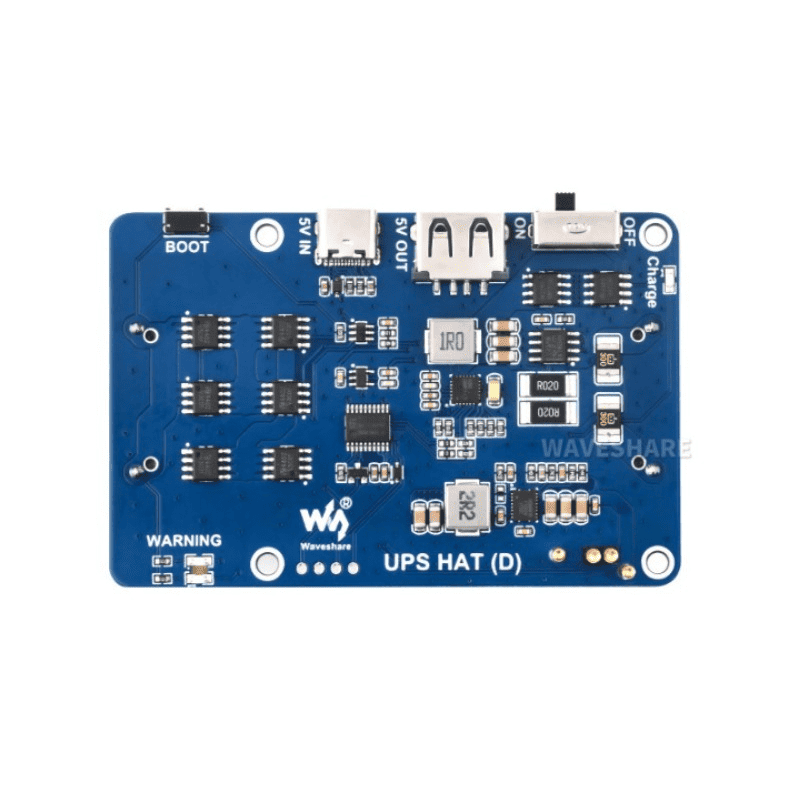

Product Show

Outline Dimensions

PACKAGE CONTENT

Weight: 0.069 kg

21700 batrtije nisu uključene. Imamo ih u ponudi.

UPS HAT (D) x1

Acrylic protection panel x1

Screws pack x1

Masa po jedinici mere:	0.107 Kg / Kom
Kategorija:	mini PC
Brend:	Waveshare
Naziv:	UPS HAT (D) (EN) Expansion Board
Šifra:	w25567
Uvoznik:	MALINA 314 doo, Beograd
Telefon:	061-640-2013
