SKU: 22002
Part Number: SX1262 868/915M LoRaWAN HAT
Brand: Waveshare
Korisne informacije:
www.waveshare.com/wiki/SX1262_XXXM_LoRaWAN/GNSS_HAT SX1262 LoRaWAN
SX1262 RF Chip LoRa Module, Suitable For Sub-GHz Band Network
Features At A Glance
This series of products are LoRa modules using the new generation of SX1262 RF chip, with the features of long communication distance and strong anti-interference ability. Suitable for Sub-GHz frequency band network, and is available in LF (410~510MHz) or HF (850~930MHz) frequency band versions. Combined with a LoRa gateway, it can be connected to servers such as TTN to build a LoRaWAN network.
Common features:
- Standard Raspberry Pi 40PIN GPIO header, supports Raspberry Pi series boards
- The new generation SX1262 has higher power efficiency and longer transmission distance than the SX1278
- Suitable for Sub-GHz band, combined with the gateway, can be quickly connected to a cloud server such as TTN to build a LoRaWAN network
SX1262 868/915M LoRaWAN HAT Suitable for HF band, comes with a magnetic CB antenna and an IPEX adapter cable
* Please select the frequency version according to the local radio management regulations
Specifications
LORA PARAMETERS |
RF CHIP |
SX1262 |
FREQUENCY BAND |
LF: 410 ~ 510MHz
HF: 850 ~ 930MHz |
MODULATION |
LoRa / (G)FSK |
DATA RATE |
LoRa: 0.018 ~ 62.5Kbps
(G)FSK: 0.6 ~ 300Kbps |
EMIT POWER |
22dBm@3.3V |
SPREADING FACTOR |
SF7 ~ SF12 |
OPERATING VOLTAGE |
3.3V |
MODULE CURRENT CONSUMPTION |
emitting current: 107mA@22dBm
receiving current: 5.3mA@125KHz |
COMMUNICATION BUS |
SPI |
OPERATING TEMPERATURE |
0 ~ 50℃ |
INTERFACE |
40PIN GPIO header |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Pinout Definition

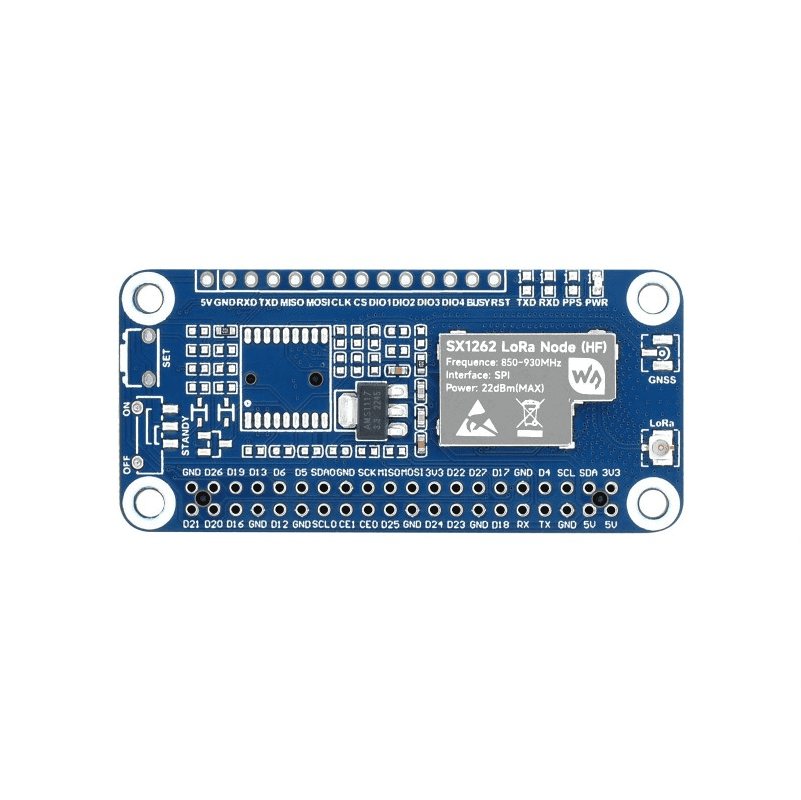

What's On Board
- SX1262
LoRa module
- L76K
GNSS module
- Power chip
5V to 3.3V LDO
- GPS STANDY mode ON/OFF
OFF: turn off STANDY and GPS works normally
ON: turn on STANDY, GPS stops outputting NMEA
- SET button
Press to wake up the GNSS module in sleep mode
- N/A
- LoRa module IPEX 1 connector
LoRa antenna connector
- Status Indicator
PWR: power indicator
RXD/TXD: UART RX/TX indicator
PPS: GPS status indicator
- Raspberry Pi 40PIN GPIO header
for connecting with Raspberry Pi series boards
- LoRa module
Application Examples
Industrial Control, Intelligent Home, And Data Acquisition...

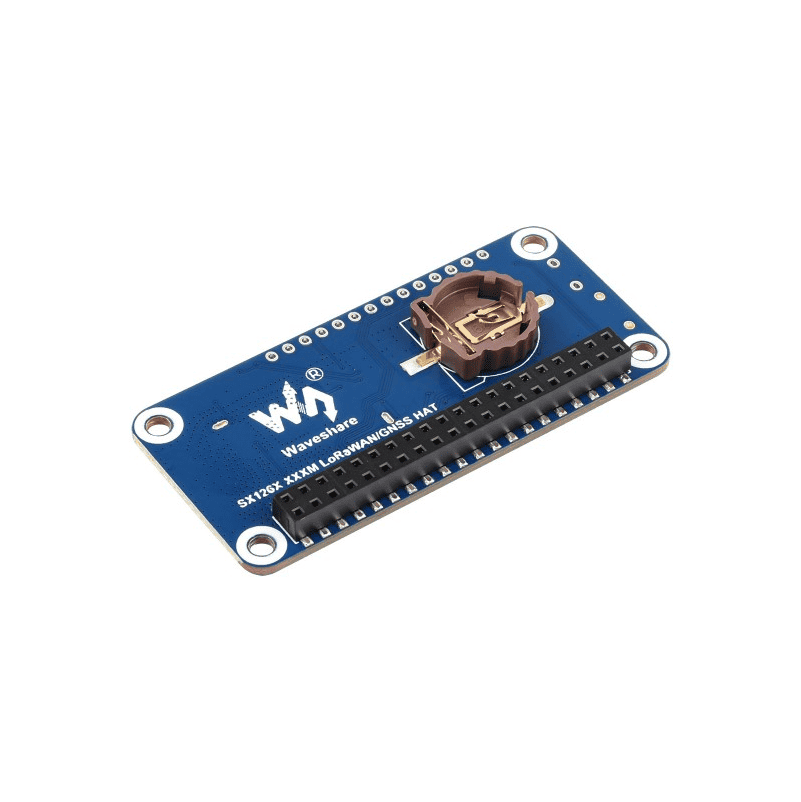

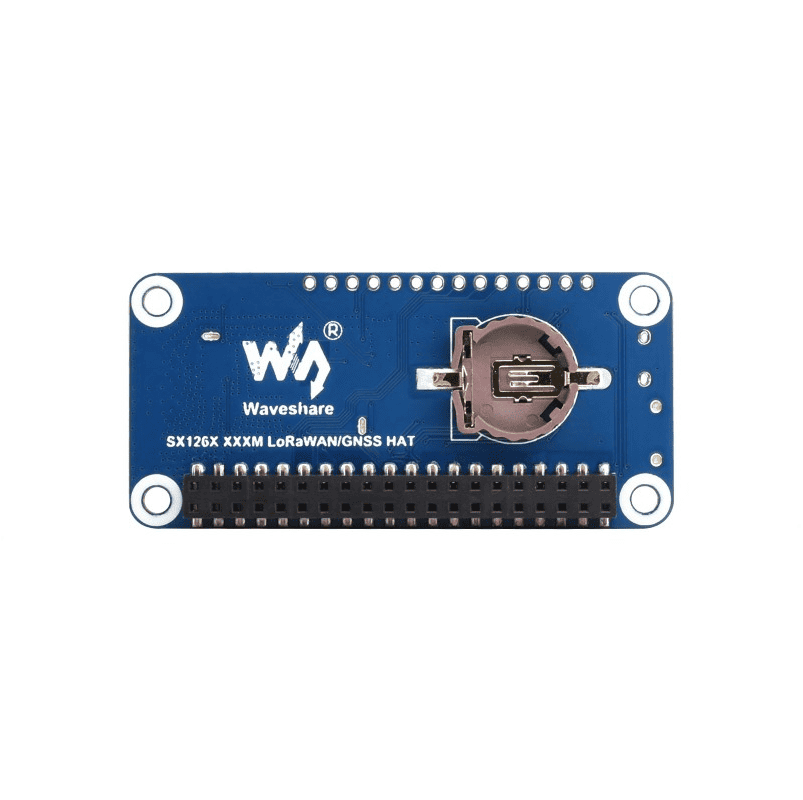

Product Shsow
Outline Dimensions

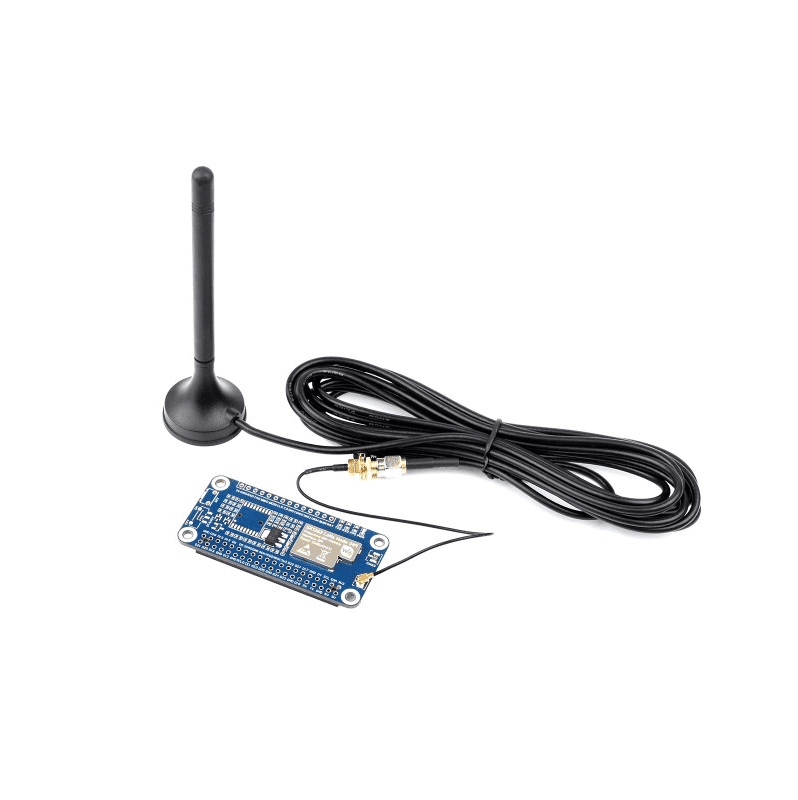

PACKAGE CONTENT SX1262 868/915M LoRaWAN HAT
- SX1262 868/915M LoRaWAN HAT x1
- 868/915M Magnetic CB antenna x1
- IPEX to SMA adapter cable ~17cm x1
- Screws pack x1
- 2×20PIN female pinheader x1
1
2
3
4
5
