SKU: 15799
Part Number: Stack HAT
Brand: Waveshare
Korisne informacije:
www.waveshare.com/wiki/Stack_HAT Stack HAT For Raspberry Pi, Stacks Up To 5 HATs At Once
Overview

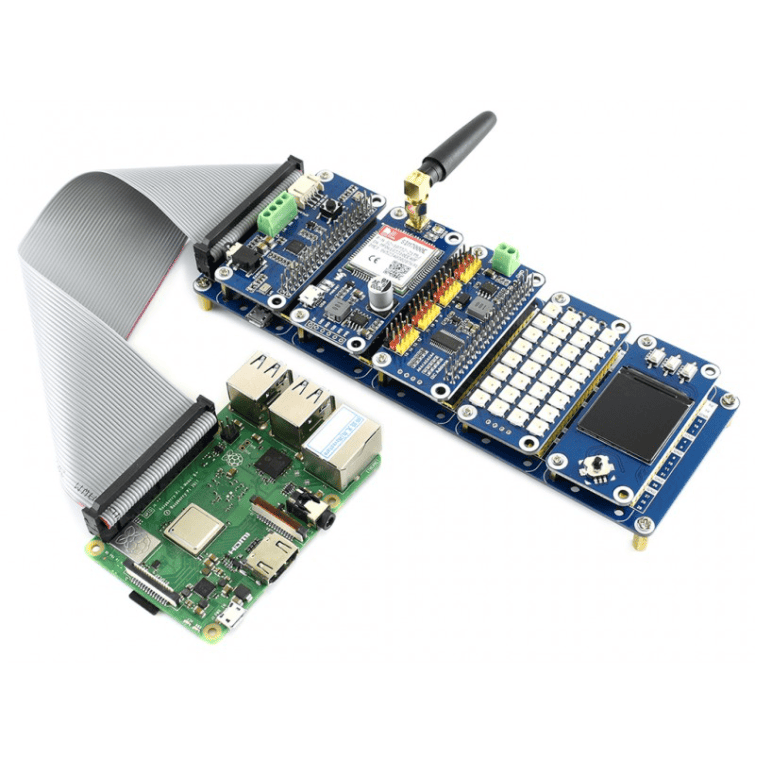

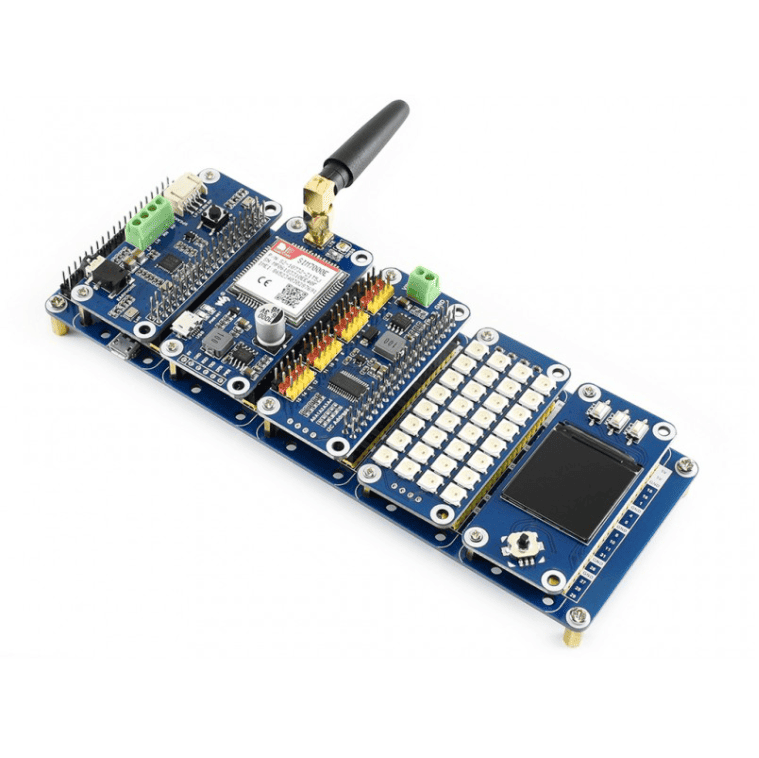

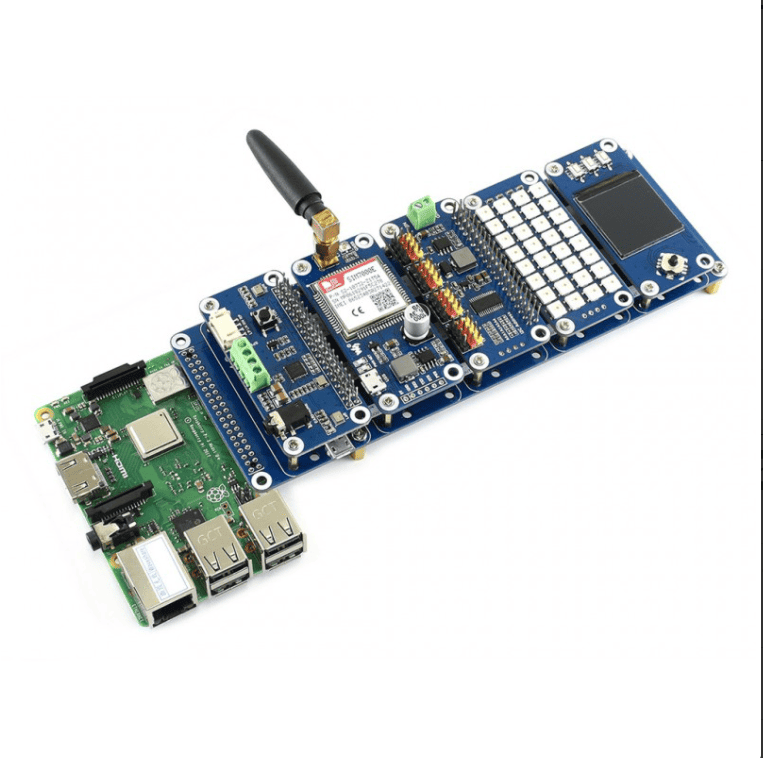

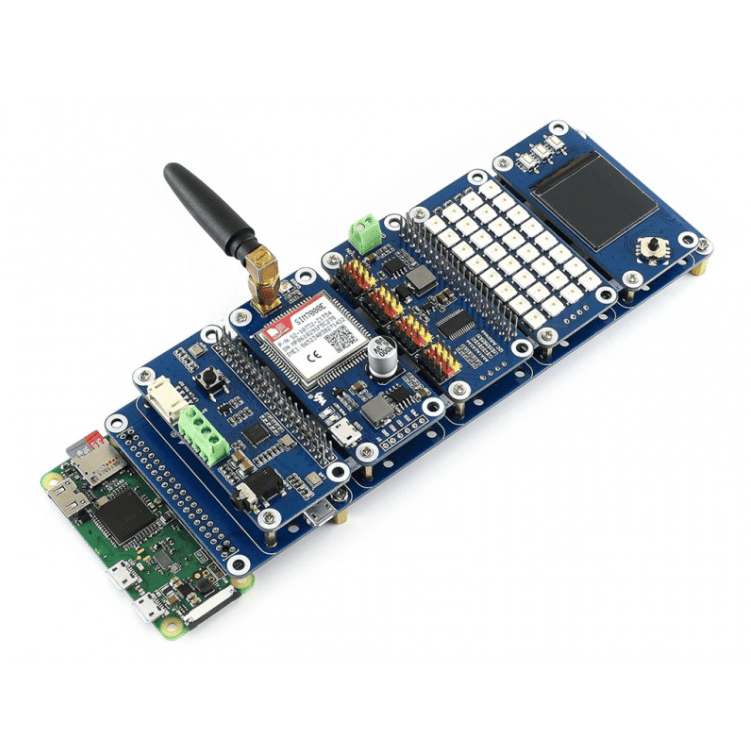

This is an I/O expansion kit designed for Raspberry Pi, which provides 5 sets of 2x20 pinheaders, that means a handy way to "stack" multi different HATs together, and use them as a specific combination / project.
Features
- Standard Raspberry Pi connectivity, directly pluggable OR through ribbon cable
- 5 sets of 2x20 pinheaders, connect multi HATs together
- USB external power port, provides enough power supply for multi HATs

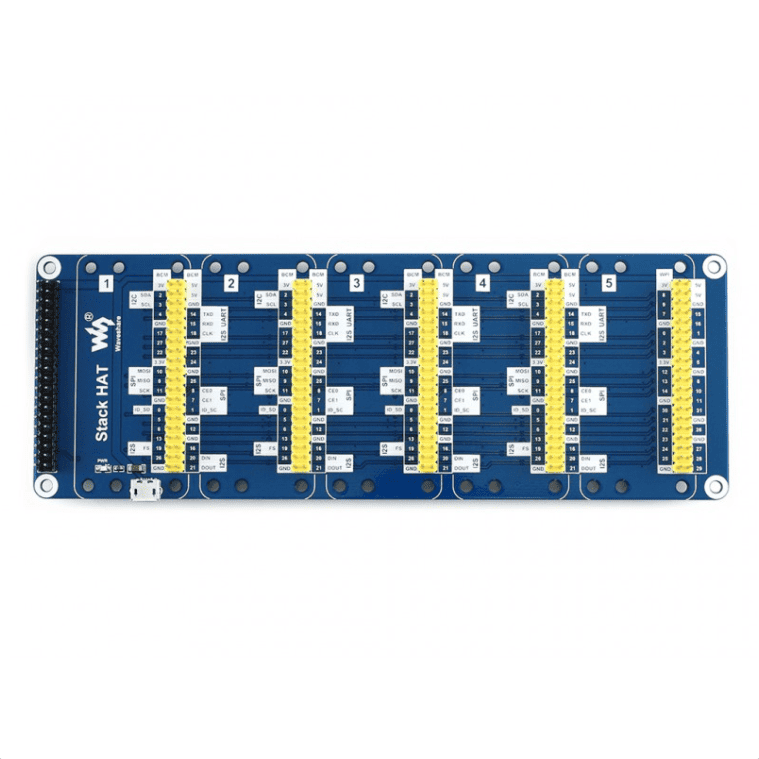

- Clear and descriptive pin labels for easy use

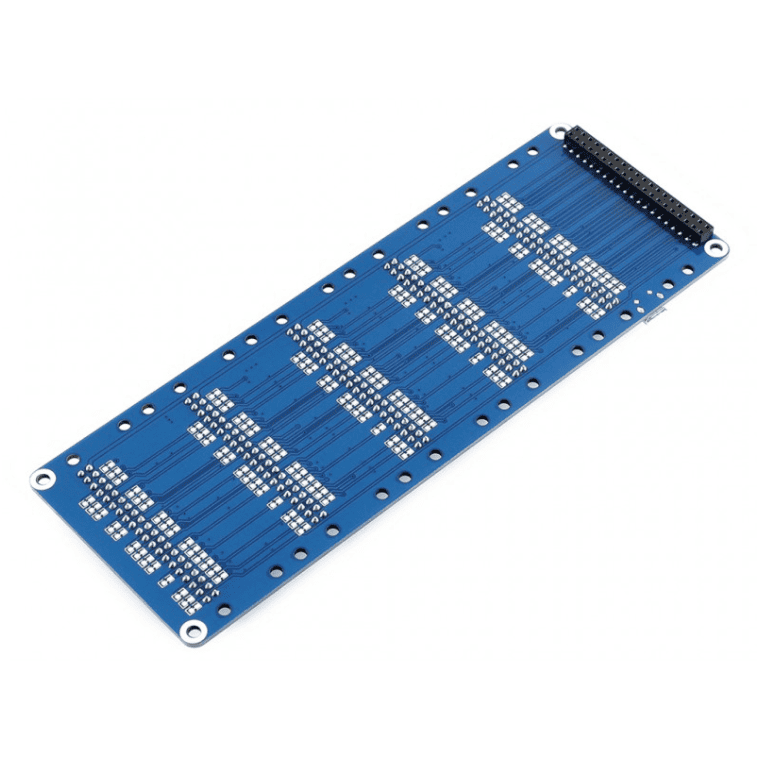

- Reserved jumper pads on the bottom side, pin connections are changeable by soldering, to avoid pin conflicts
Note: make sure there are no any pin conflicts between the HATs you want to use together before connecting.
Specifications
- Dimension: 183mm × 65mm
- Mounting hole size: 3mm
Dimension
-

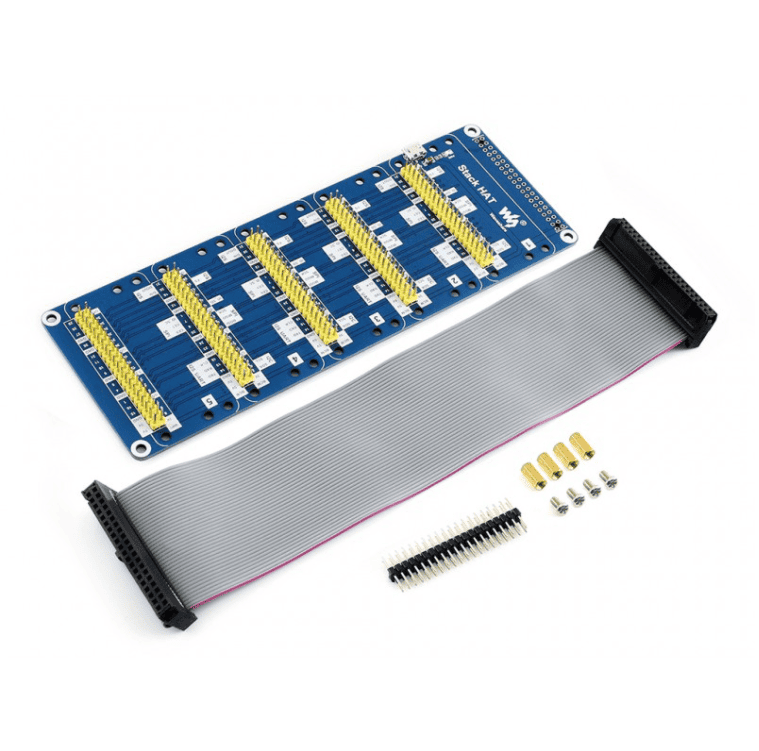

- PACKAGE CONTENT
Weight: 0.083 kg
- Stack HAT x1
- Ribbon cable 40PIN x1
- 2x20 male pinheader x1
- RPi screws pack (4pcs) x1
