| SIM7600E-H | |||||
|---|---|---|---|---|---|
| Applicable regions* | Europe / the Middle East / Africa / South Korea / Thailand | ||||
| Band | |||||
| LTE Cat-4 / LTE Cat-1 | LTE-TDD: B38/B40/B41 LTE-FDD: B1/B3/B5/B7/B8/B20 | ||||
| 3G | UMTS/HSPA+: B1/B5/B8 | ||||
| 2G | GSM/GPRS/EDGE: 900/1800 MHz | ||||
| GNSS | GPS/Beidou/GLONASS/GALILEO/QZSS | ||||
| Data Rate | |||||
| LTE Cat-4 | 150Mbps(DL) / 50Mbps(UL) | ||||
| 3G (HSPA+) | 42Mbps(DL) / 5.76Mbps(UL) | ||||
| 2G (EDGE) | 236.8Kbps(DL) / 236.8Kbps(UL) | ||||
| 2G (GPRS) | 85.6Kbps(DL) / 85.6Kbps(UL) | ||||
| Software Features | |||||
| Operating system | Windows/Linux | ||||
| Network protocol | TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/DNS | ||||
| Dial-up protocol | NDIS/RNDIS/PPP | ||||
| SMS | Supports MT, MO, CB, Text, PDU | ||||
| Hardware Description | |||||
| Communication interface | USB / UART | ||||
| UART baud rate | 300bps ~ 4Mbps (115200bps by default) | ||||

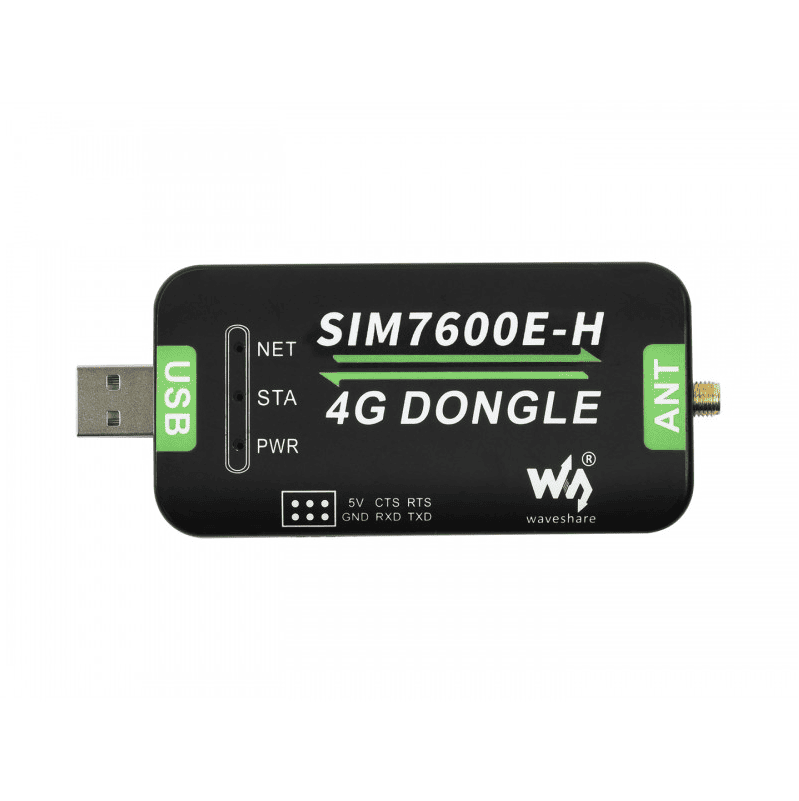

| Indicator | NET：network indicator | ||||
| STA：status indicator | |||||
| PWR：power indicator | |||||
| SIM card support | Nano SIM card (1.8V / 3V) | ||||
| Antenna connector | LTE | MAIN LTE, GNSS | MAIN LTE, AUX LTE, GNSS | ||
| Power supply | 5V | ||||
| Logic level | 3.3V | ||||
| Outline dimensions | 89.20 × 45.26 × 14.62mm | ||||
supports 4G/3G/2G communication for Europe / the Middle East / Africa
working with laptop / Raspberry Pi / industrial computer...
up to 150Mbps downlink and 50Mbps uplink*
* stands for idealized data rate, the actual data rate may fluctuate greatly, depending on factors like network coverage, traffic congestion, base station condition, etc.
supports Windows/Linux
Just plug it into USB port, go through some driver installation and simple configuration, the high speed 4G network connection would be ready to use
supports USB/UART communication interfaces
supports TCP/UDP/FTP/FTPS/HTTP/HTTPS communication protocols
Supports GPS / Beidou / GLONASS / GALILEO / QZSS positioning

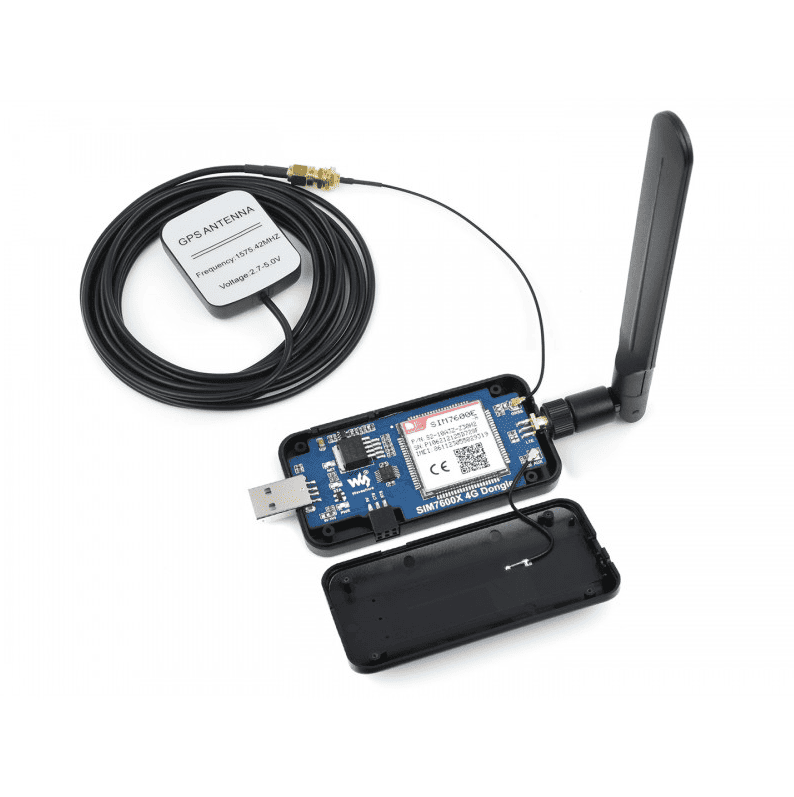

embedded customized FPC AUX antenna, better communication via dual antennas

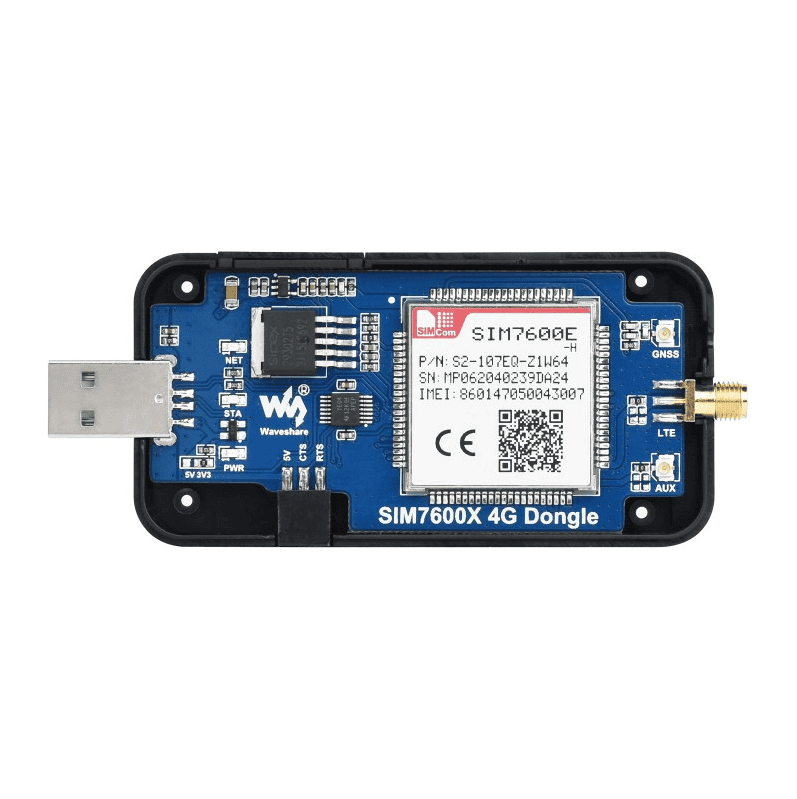

Integrates SIM7600E-H module, industrial grade design, stable connection, more durable

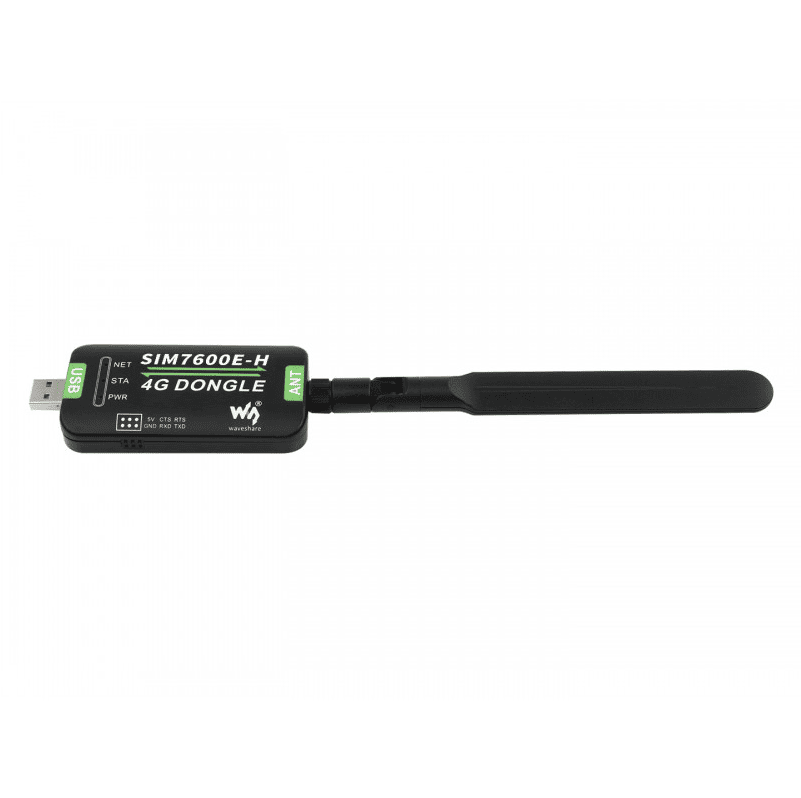

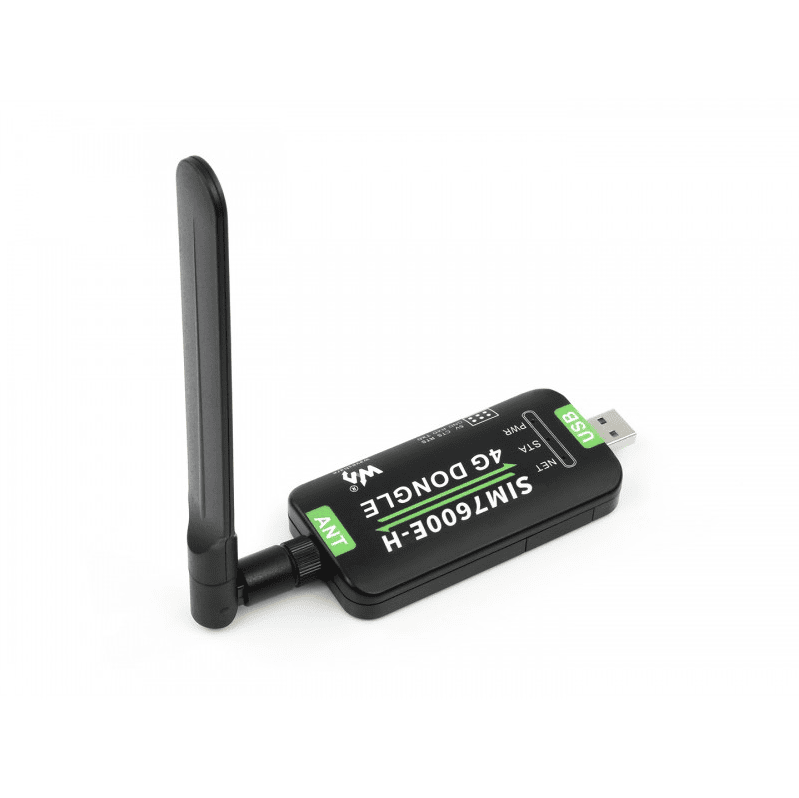

flexible structure antenna design, allows multidimensional rotation for better connection

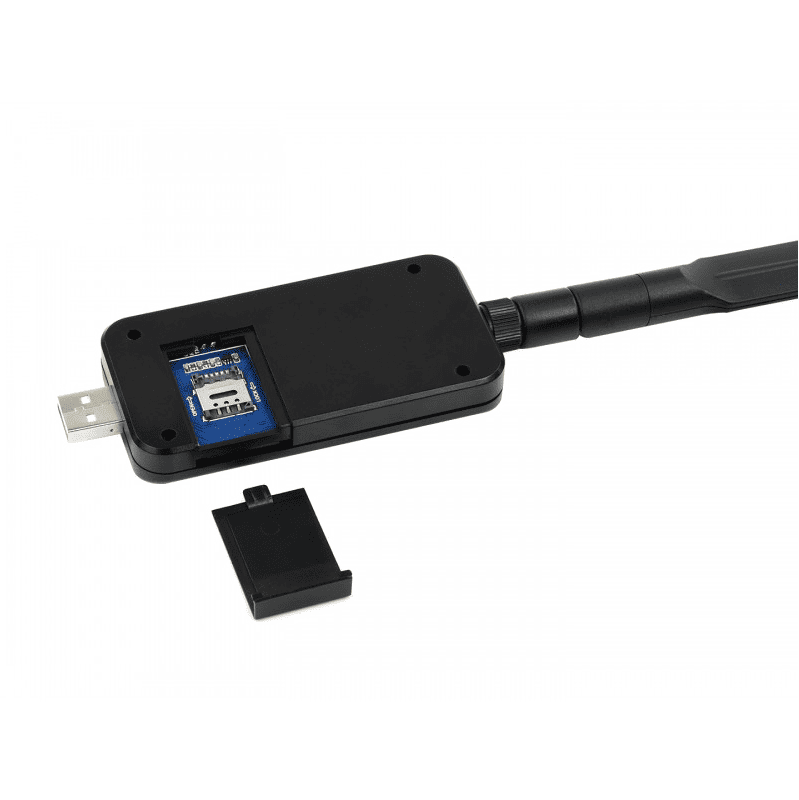

onboard nano SIM card slot with sliding cover, easy to use
easy to check the operating status, convenient for programming/debugging
| UART pinouts | |
|---|---|
| 5V | 5V DC input |
| GND | power ground |
| TXD | data transmitting |
| RXD | data receiving |
| CTS | hardware flow control, clear to send, NC if not used |
| RTS | hardware flow control, request to send, NC if not used |
