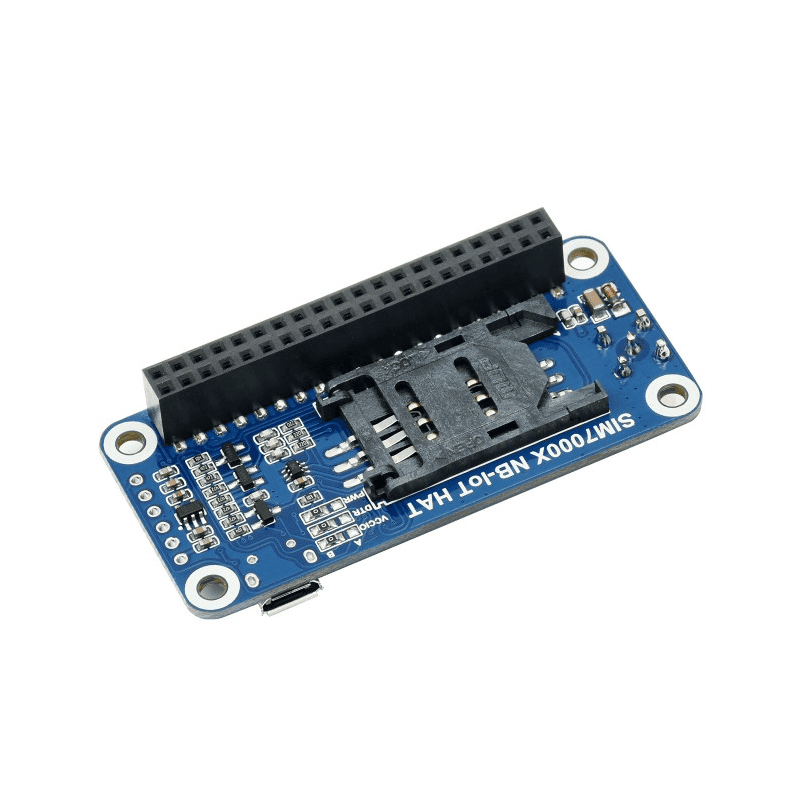

SKU: 20681
Part Number: SIM7000G NB-IoT HAT (EN)
Brand: Waveshare
Korisne informacije:
SIM7000G_NB-IoT_HAT SIM7000G NB-IoT / Cat-M / EDGE / GPRS HAT for Raspberry Pi, GNSS positioning, Global band support
NB-IoT / Cat-M / GPRS / GNSS HAT Low power narrow band cellular IoT communication module for Raspberry Pi
Based on SIM7000G
This is a telecommunication HAT for Raspberry Pi which supports
global bands of NB-IoT, Cat-M, and GPRS, as well as
GNSS positioning function. Due to its advantages like small size, low delay, and wide coverage, it is the ideal choice for IoT applications such as intelligent instruments, asset tracking, remote monitoring, e-health, and so on.
Features at a glance
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
- Supports TCP, UDP, PPP, HTTP, FTP, MQTT, SMS, Mail, etc.
- Supports GNSS positioning (GPS, BeiDou, GLONASS)
- Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
- Breakout UART control pins, to connect with host boards like Arduino/STM32
- Onboard voltage translator, 3.3V by default, allows to be switched to 5V via 0Ω resistor
- SIM card slot, compatible with both normal SIM card and NB-IoT specific card
- 2x LED indicators, easy to monitor the working status
- Baudrate: 300bps~3686400bps (115200bps by default)
- Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands)
- Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 98, USAT
- Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
Specifications
NB-IoT / Cat-M / 2G |
Frequency bands |
NB-IoT: B1, B2, B3, B4, B5, B8, B12, B13, B17, B18, B19, B20, B25, B26, B28 |
Cat-M: B1, B2, B3, B4, B5, B8, B12, B13, B17, B18, B19, B20, B25, B26, B28, B39 |
GPRS/EDGE: 850, 900, 1800, 1900MHz |
Data rate |
NB-IoT: 34(DL)/66(UL) |
Cat-M: 300(DL)/375(UL) |
EDGE: 236.8(DL)/236.8(UL) |
GPRS: 85.6(DL)/85.6(UL) |
SIM card support |
NB-IoT: NB Specific (Not Included) |
Cat-M/GPRS/EDGE: Normal SIM (Not Included) |
Applicable region |
Global |
GNSS |
Satellite systems |
GPS, BeiDou, GLONASS |
Receiver type |
16-channel |
C/A Code |
Sensitivity |
Tracking: -162 dBm (GPS) / -157 dBm (GLONASS) / TBD (BD) |
Cold starts: -148 dBm |
Time-To-First-Fix |
Cold starts: <35s |
Hot starts: <1s |
Accuracy |
Position: <2.5m CEP |
Other |
Power supply |
5V |
Operating voltage |
5V / 3.3V (3.3V by default) |
Sleep Mode current |
1.2mA (@DRX=2.56s) |
Power Save Mode current |
9uA |
Operating temperature |
-40°C ~ 85°C |
Storage temperature |
-45°C ~ 90°C |
Dimensions |
30.2mm x 65mm |
Standard Raspberry Pi 40PIN GPIO Compatible with Raspberry Pi series boards
Global band support of NB-IoT/Cat-M/2G
Cloud Communication Supports communication protocols including
TCP, UDP, PPP, HTTP, FTP, MQTT, SMS, Mail...
GNSS positioning Supports GPS, BeiDou, GLONASS positioning

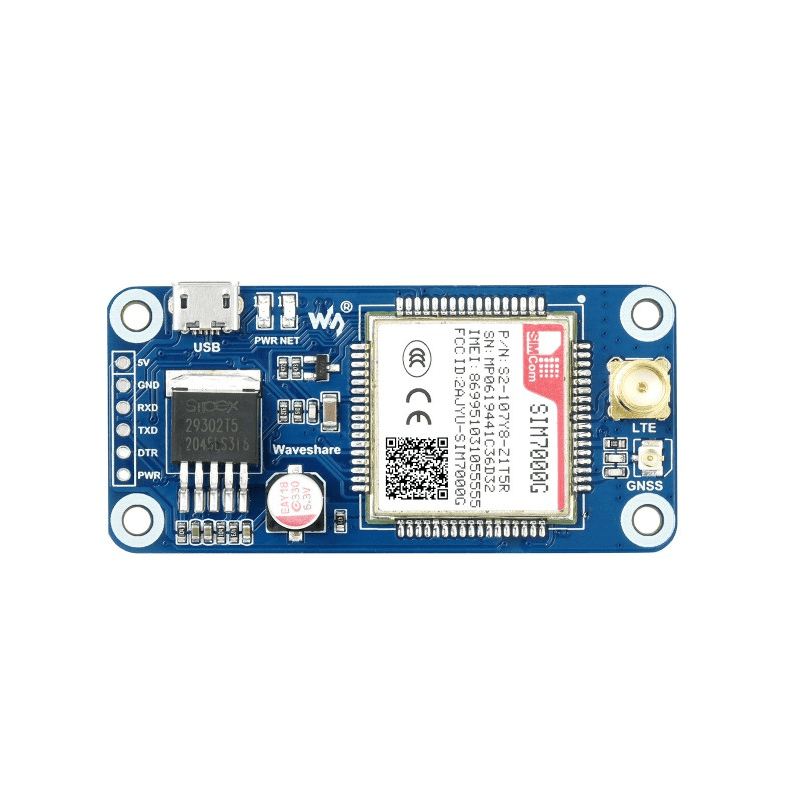

What's on board
- SIM7000G
- SPX29302 power chip
- RT9193-33 power chip
- Raspberry Pi GPIO header
for connecting with Raspberry Pi
- USB interface
for testing AT Commands, getting GPS positioning data, etc.
- SIM7000G control interface
for connecting with host boards like Arduino/STM32

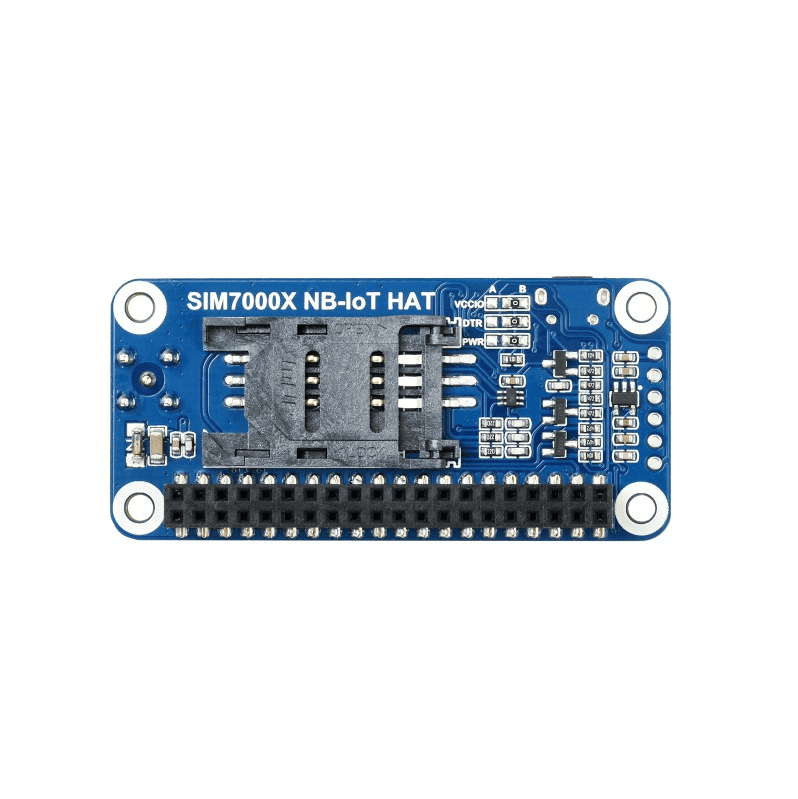

- SIM card slot
supports 1.8V/3V SIM card
- GNSS antenna connector
- LTE antenna connector
- Network status indicator
- Power indicator
- Operating voltage selection jumper
configured via 0Ω resistor jumper
A: set operating voltage as 5V
B: set operating voltage as 3.3V (default)
- DTR configuration jumper
configured via 0Ω resistor jumper
A: DTR is controlled by the Raspberry Pi P26 pin
B: NC (default)
- PWR configuration jumper
configured via 0Ω resistor jumper
A: startup/shutdown by the Raspberry Pi P4 pin
B: auto startup on power-up (default)
Pinout definition
Outline Dimensions

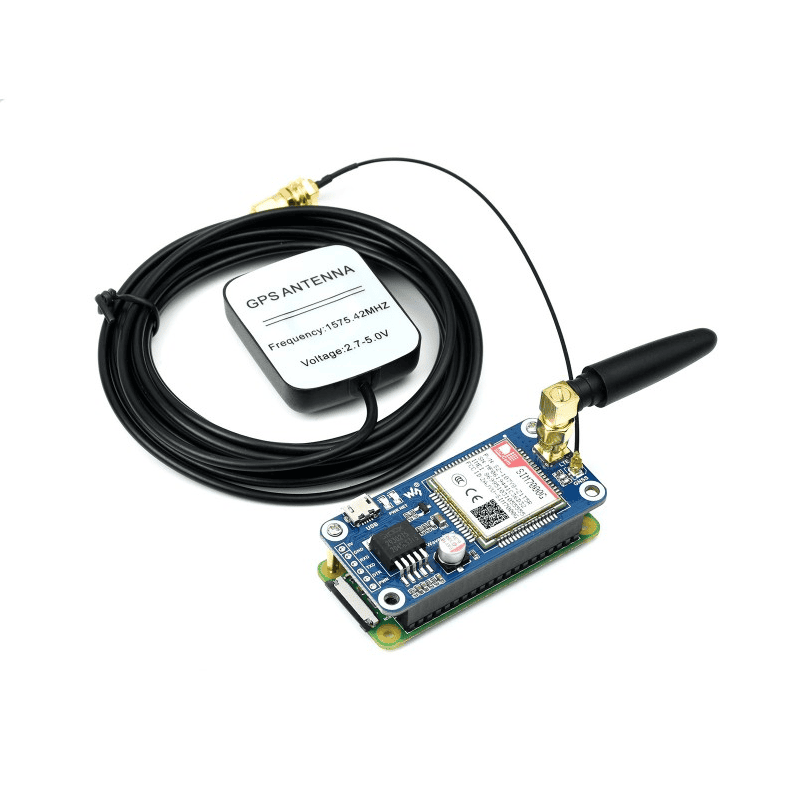

- PACKAGE CONTENT
Weight: 0.14 kg
- SIM7000G NB-IoT HAT x1
- GSM Antenna x1
- GPS External Antenna (B) x1
- USB-A to Micro-B cable x1
- Standoffs pack x1
