Note
This sketch shows the development possibilities for the related IoT ecosystem, developers need to develop the firmware based on need.

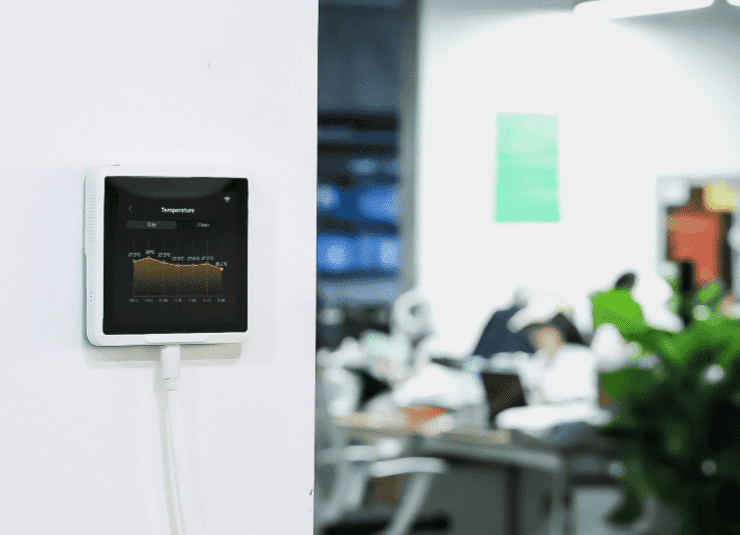

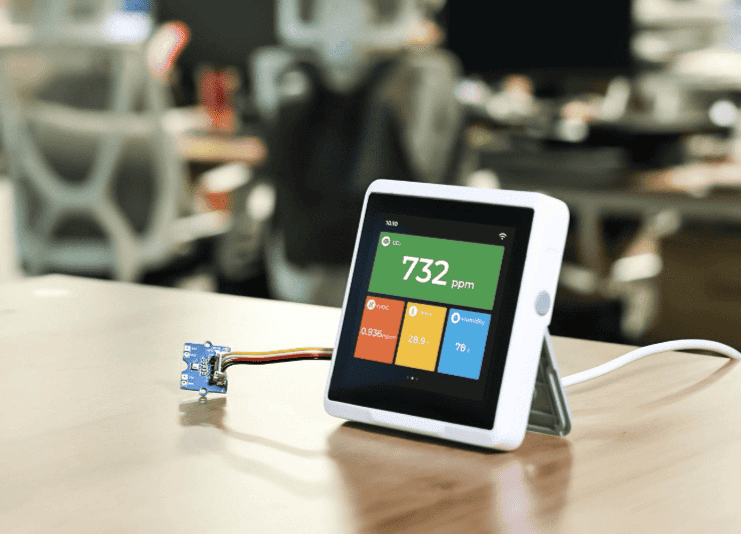

SenseCAP Indicator is an interactive display and control terminal for various IoT applications. It provides developers with a powerful and interface-rich development platform powered by ESP32-S3 and RP2040 dual-MCU.
Don't wait anymore, start your wonderful development journey with SenseCAP Indicator now!

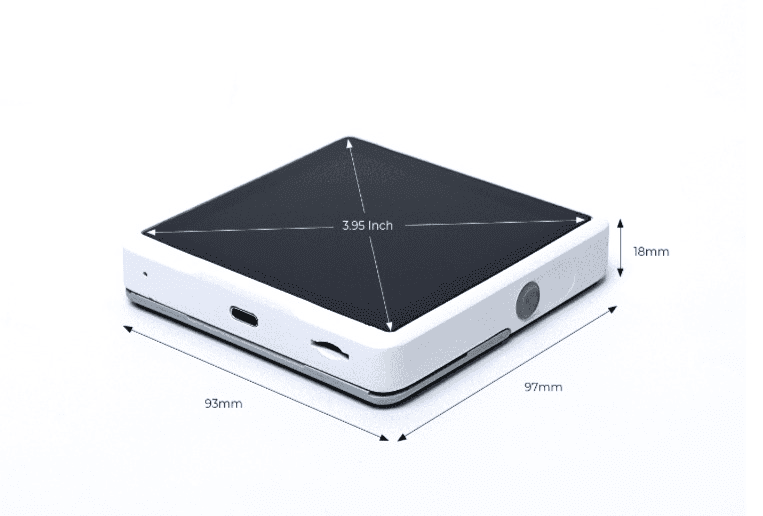

| Screen | 3.95 Inch, Capacitive RGB Touch Screen | |
| Screen Resolution | 480 x 480 pixels | |
| Power Supply | 5V DC, 1A | |
| Battery | N/A | |
| Processor | ESP32-S3: Xtensa® dual-core 32-bit LX7 microprocessor, up to 240MHz RP2040: Dual ARM Cortex-M0+ up to 133MHz | |
| Flash | ESP32S3: 8MB RP2040: 2MB | |
| External Storage | Support up to 32GB Micro SD Card (not included) | |
| Wi-Fi | 802.11b/g , 2.4GHz | |
| Bluetooth | Bluetooth 5.0 LE | |
| LoRa®(SX1262) | LoRa®WAN/(G)FSK, 21dBm Max Transmitted Power Sensitivity/-136dBm@SF12 BW=125KHz RX Sensitivity, Up to 5km (depending on gateway antenna and environments) | |
| Sensors(Optional) | Built-in CO2 (SCD41) | Range: 0-40000ppm Accuracy: 400ppm - 5000ppm ±(50ppm+5% of reading) |
| Built-in TVOC (SGP40) | Range: 1-500 VOC Index Points | |
| External Temperature and Humidity Sensor | Range: -40 ~ + 85 ℃/± 0.3 ℃; 0 ~ 100% RH/± 2% RH (25 ℃) | |
| Buzzer | MLT-8530, Resonant Frequency：2700Hz | |

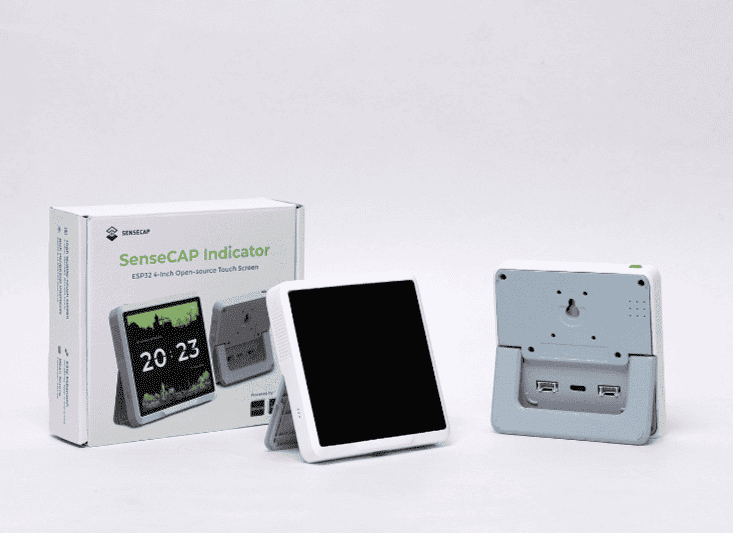

| SenseCAP Indicator | x1 |
| USB Type-C Cable (1m) | x1 |
| Grove AHT20 TH Sensor (For D1S and D1Pro version) | x1 |
