Power Supply | 5V DC, 1A |
Battery |
N/A |
Processor |
ESP32-S3: Xtensa® dual-core 32-bit LX7 microprocessor, up to 240MHz
RP2040: Dual ARM Cortex-M0+ up to 133MHz |
Flash |
ESP32S3: 8MB
RP2040: 2MB |
External Storage |
Support up to 32GB Micro SD Card (not included) |
Wi-Fi |
802.11b/g
, 2.4GHz |
Bluetooth |
Bluetooth 5.0 LE |
LoRa®(SX1262) |
LoRa®WAN/(G)FSK, 21dBm Max Transmitted Power Sensitivity/-136dBm@SF12 BW=125KHz RX Sensitivity, Up to 5km (depending on gateway antenna and environments) |
Sensors(Optional) |

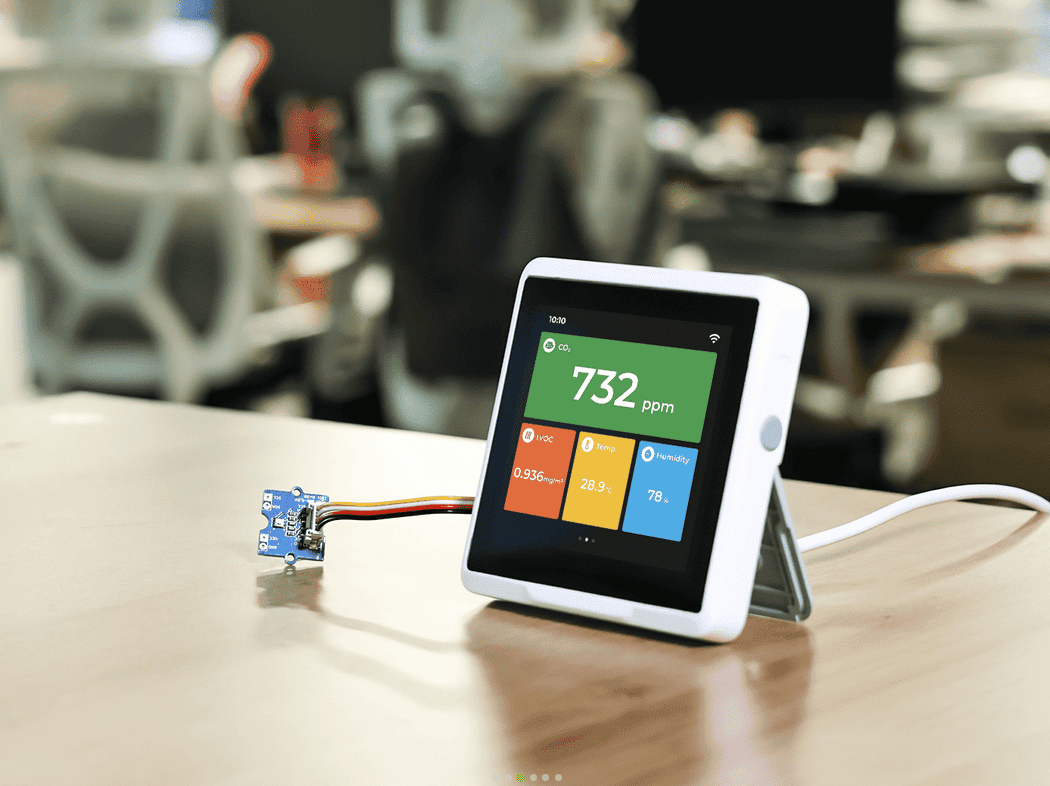

Built-in CO2 (SCD41) |
Range: 0-40000ppm
Accuracy: 400ppm - 5000ppm ±(50ppm+5% of reading) |
Built-in TVOC (SGP40) |
Range: 1-500 VOC Index Points |
External Temperature and Humidity Sensor |
Range: -40 ~ + 85 ℃/± 0.3 ℃; 0 ~ 100% RH/± 2% RH (25 ℃) |
Buzzer |
MLT-8530, Resonant Frequency：2700Hz |
ODM Service
Note
If you want to customize your own SenseCAP Indicator, Seeed Studio provides a one-stop ODM service for quick customization and scale-up. Please contact iot@seeed.cc if you have a large quantity customization need
With over 10 years of ODM & OEM experience, our engineers and product experts are proficient in delivering customization services for popular open-source hardware platforms, such as Raspberry Pi, NVIDIA Jetson, Beagleboard, ESP32, and more. We are committed to assisting you at any moment and shortening your path from idea to product for emerging AIoT scenarios.
Seeed Co-Create Project
Become the next success story with Seeed Co-Create. All licensed projects, whether hardware, software, tutorial, or complete product will feature on the Seeed Studio store(Bazaar) individually or with Seeed Studio's products for sale and you will get a share of the profits. We are looking for unique projects that strongly identify with Seeed Studio's audience, solve real-life problems, fill a niche and/or spur inspiration and creativity. Find out how you can co-create and license your ideas and talents with us now!

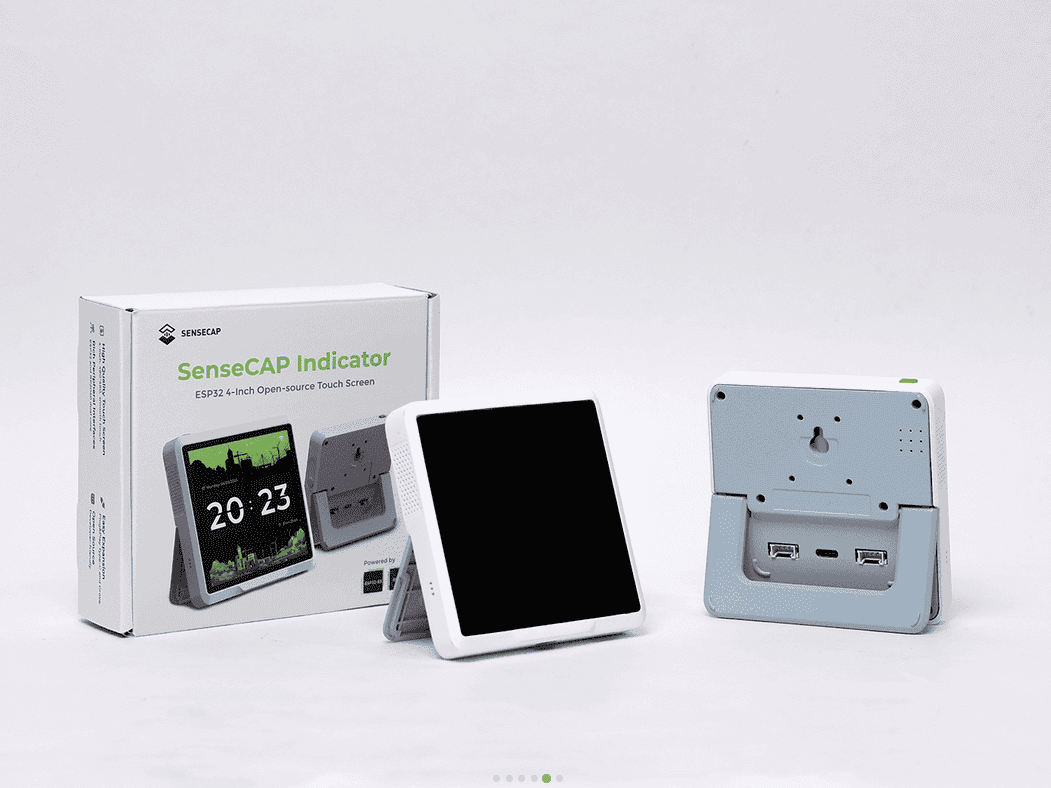

Part List
SenseCAP Indicator |
x1 |
USB Type-C Cable (1m) |
x1 |
Grove AHT20 TH Sensor (For D1S and D1Pro version) |
x1 |
ECCN/HTS
HSCODE |
8517180050 |
USHSCODE |
8543708800 |
UPC |
|
EUHSCODE |
8543709099 |
COO |
CHINA |
CE |
1 |
EU DoC |
1 |
FCC |
1 |
REACH |
1 |
RoHS |
1 |
TELEC |
1 |
UK DoC |
1 |
LEARN AND DOCUMENTS
Learn
[Wiki] Get Started with SenseCAP Indicator (ESP32S3 & RP2040 4-Inch Touch Screen) | Seeed Studio Wiki This WiKi allows you to get a quick start with the SenseCAP indicator. SenseCAP Indicator is a 4-inch touch screen driven by ESP32 and RP2040 dual-MCU and supports Bluetooth/Wi-Fi/LoRa communication.
[Documentation] SenseCAP Indicator User Manual SenseCAP Indicator is a 4-inch touchscreen driven by ESP32 and RP2040 dual-MCU and supports Wi-Fi/BLE/LoRa communication. It is a fully open-source powerful IoT development platform for developers.
[Project] Use ChatGPT and DALL·E with SenseCAP Indicator, powered by ESP32S3 & RP2040 SenseCAP Indicator is a 4-inch touch screen driven by ESP32 and RP2040 dual-MCU and supports Wi-Fi/BLE/LoRa communication. It is a fully open-source powerful IoT development platform for developers. What if SenseCAP Indicator meet ChatGPT and DALL·E ?
[Project] Home Assistant with SenseCAP Indicator, Smart Home application powered by ESP32S3 & RP2040 With SenseCAP Indicator's user-friendly interface and extensive integrations, you can create a personalized and interconnected smart home experience. It provides control, automation, and customization options to suit your needs.
[Others] SenseCAP Indicator, 4-Inch Touch Screen IoT Development Platform powered by ESP32S3 & RP2040 Check this introduction video of SenseCAP indicator!
