SKU: 23709
Part Number: RGB-Matrix-P2.5-96x48-F
Brand: Waveshare
Korisne informacije: https://www.waveshare.com/wiki/RGB-Matrix-P2.5-96x48-F 64×32 RGB LED Matrix Panel

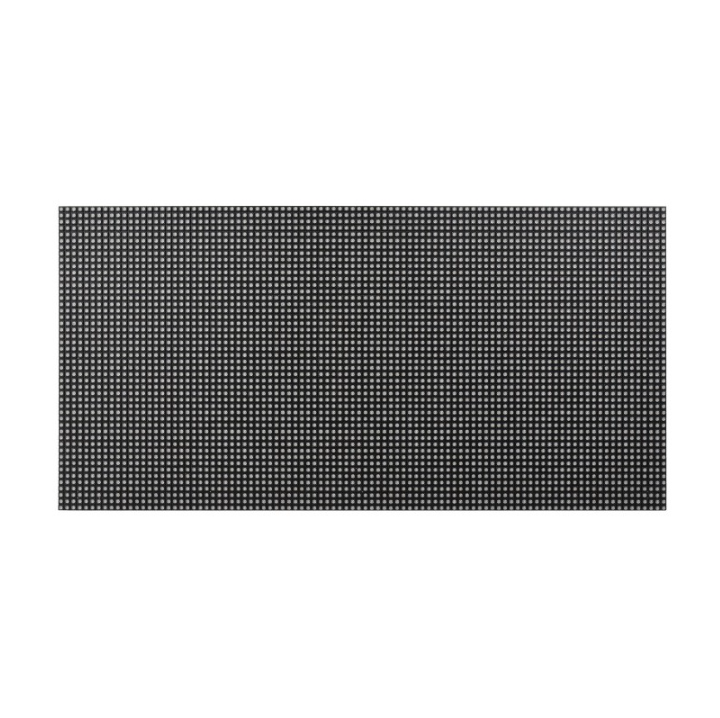

Flexible RGB Full-Color LED Matrix Panel, 2.5mm Pitch, 96×48 Pixels, Adjustable Brightness And Bendable PCB, 4608 Individual RGB LEDs, 2.5mm Pitch, Flexible PCB
Supports Raspberry Pi / Raspberry Pi Pico / ESP32 / Arduino...
Posetite
Wiki zbog pomoći oko načina povezivanja, instalacije, primera i drugih korisnih informacija pre kupovine. Možete nas i konsultovati na email
office@malina314.com
* The flexible PCB can be gently bent but do not bend it excessively or repeatedly,
otherwise, it is easy to be damaged
█ Features At A Glance
By nightfall, the dazzling neon lights of the streets and alleys illuminate the whole city making it more dynamic. Obviously, the Full-Color LED Matrix Panel is playing an important role. Maybe be on the doors of shops, maybe be on the bus or the taxi, you can always see animations or advertisement videos. Does it look cool? Why not have a try?
- 4608 individual RGB LEDs, full-color display, adjustable brightness
- Flexible PCB material, can be gently bent and suitable for some application scenarios such as cylinders, spheres and other curved surface
- 96×48 pixels, 2.5mm pitch, allows displaying text, colorful image, or animation
- 240×120mm dimensions, moderate size, suitable for DIY desktop display or wall mount display
- Onboard two HUB75 header, one for controller data input, one for output, chain support
- Provides open source development resources (examples for Raspberry Pi / Raspberry Pi Pico / ESP32 / Arduino)
█ Specifications
DIMENSIONS |
240mm × 120mm |
PIXELS |
96×48=4608 DOTS |
PITCH |
2.5mm |
PIXEL FORM |
1R1G1B |
VIEWING ANGLE |
≥140° |
CONTROL TYPE |
synchronization |
DRIVING |
1/24 scan |
HEADER |
HUB75 |
POWER SUPPLY |
5V / 4A (VH4 header input) |
POWER |
≤20W |
█ Header Definition

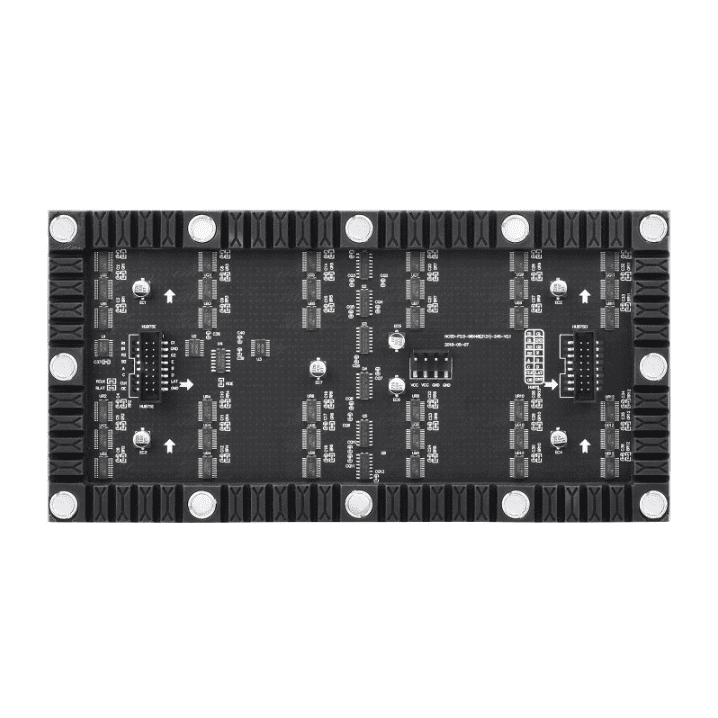

* this back view is for reference only PCB silkscreen and layout may have small differences from batch to batch, but software is compatible.
PIN |
DESCRIPTION |
PIN |
DESCRIPTION |
VCC |
5V power input |
GND |
Ground |
R1 |
R higher bit data |
R2 |
R lower bit data |
G1 |
G higher bit data |
G2 |
G lower bit data |
B1 |
B higher bit data |
B2 |
B lower bit data |
A |
A line selection |
B |
B line selection |
C |
C line selection |
D |
D line selection |
E |
E line selection |
CLK |
clock input |
LAT/STB |
latch pin |
OE |
output enable |
█ Chainable Design
Multi LED Matrix Panel Can Be Chained Together To Build A Larger Panel
Via HUB75 Input/Output Header
Each RGB LED matrix panel requires a standalone 5V/4A or above power supply, when they're chained to display.
█ Application Example
█ Usage Scenarios
Flexible PCB Material, Lighter And Thinner, Can Be Gently Bent And Suitable For Some Cylindrical, Circular And Curved Surfaces, Or Other Creative LED Display Shapes

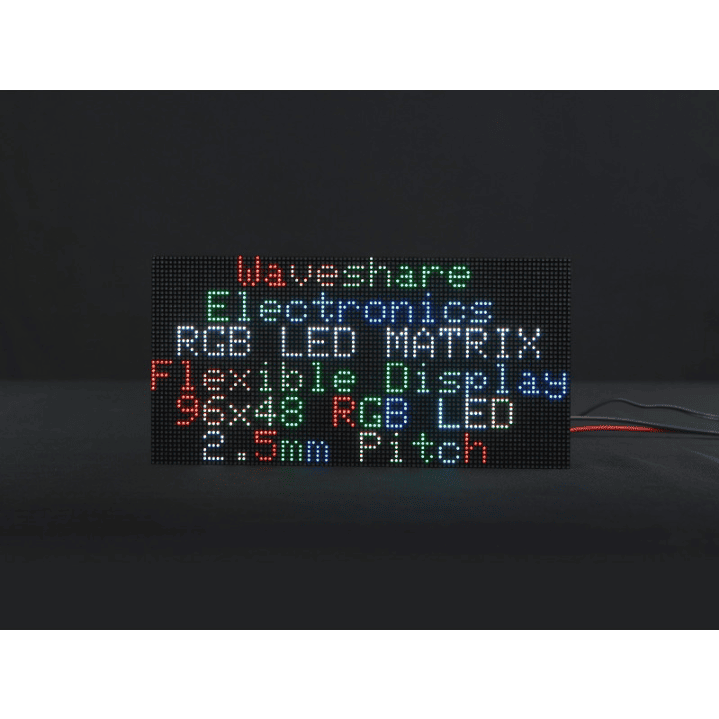

█ Product Show
█ Dimensions
-
█ Package Content
- RGB-Matrix-P2.5-96x48-F LED matrix and accessories x1
- Power supply terminal adapter x1
- 16P wire ~30cm x1
It is recommended to used with a 5V 4A power supply Weight: 0.272 kg
