Pico-RTC-DS3231
Pico-RTC-DS3231
Pico-RTC-DS3231
Pico-RTC-DS3231

Pico-RTC-DS3231

Šifra: w19426
Waveshare
Naši proizvodi ne prate standardne veličine - pre poručivanja obavezno proverite tabelu veličina.
1.990,00 RSD
Cena sa PDV

Trenutno nedostupno za online naručivanje

Obavesti me kada proizvod bude dostupan!
br>
Specifications




















OPERATING VOLTAGE 3.3V
BACKUP BATTERY VOLTAGE 2.3V ~ 5.5V
OPERATING TEMPERATURE -40°C ~ +85°C
POWER CONSUMPTION 100nA (sustains data and clock information)

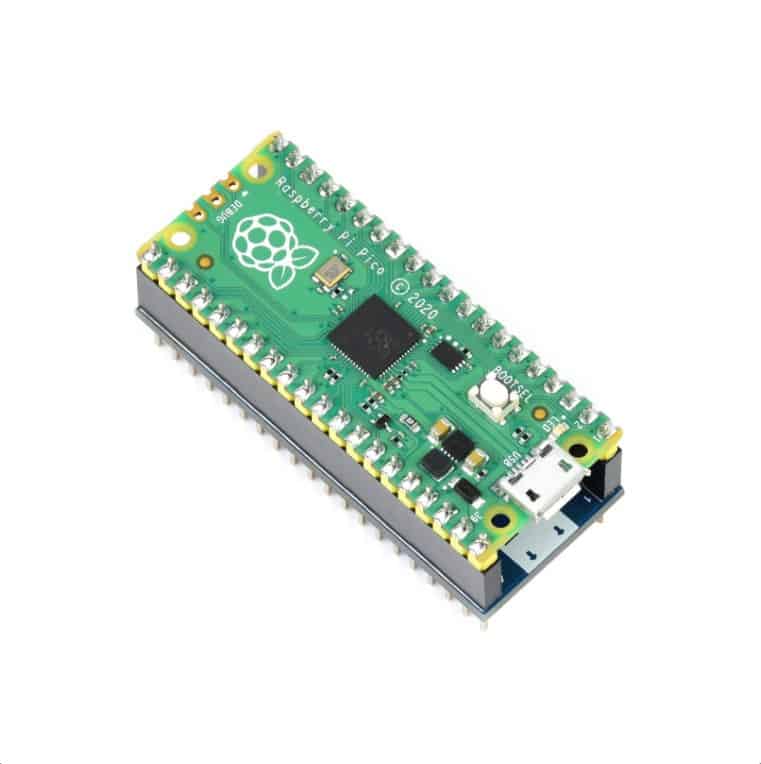

Raspberry Pi Pico Header Compatibility

Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico

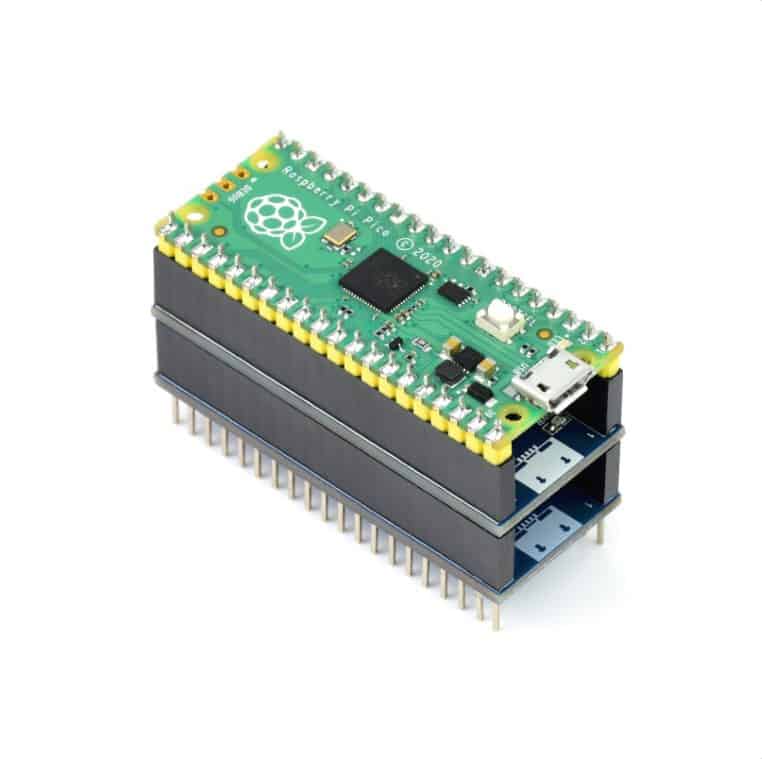

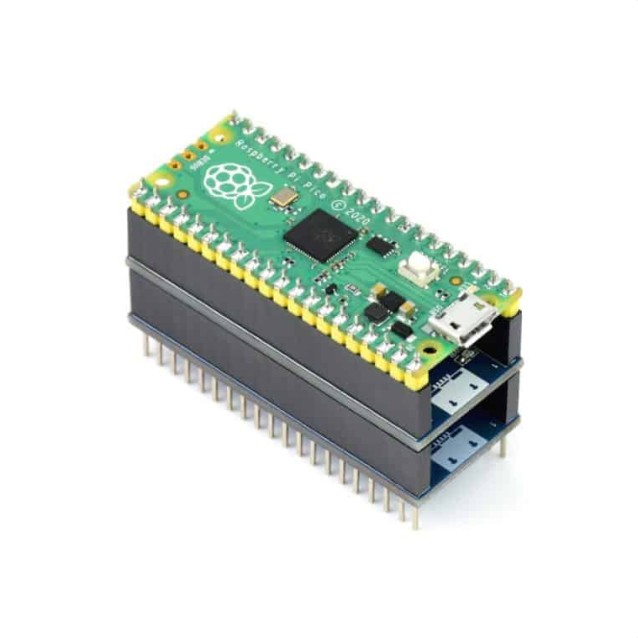

Stackable Design



Raspberry Pi Pico is NOT included.

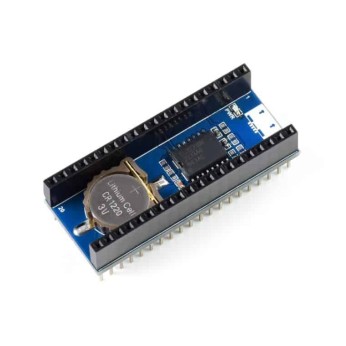

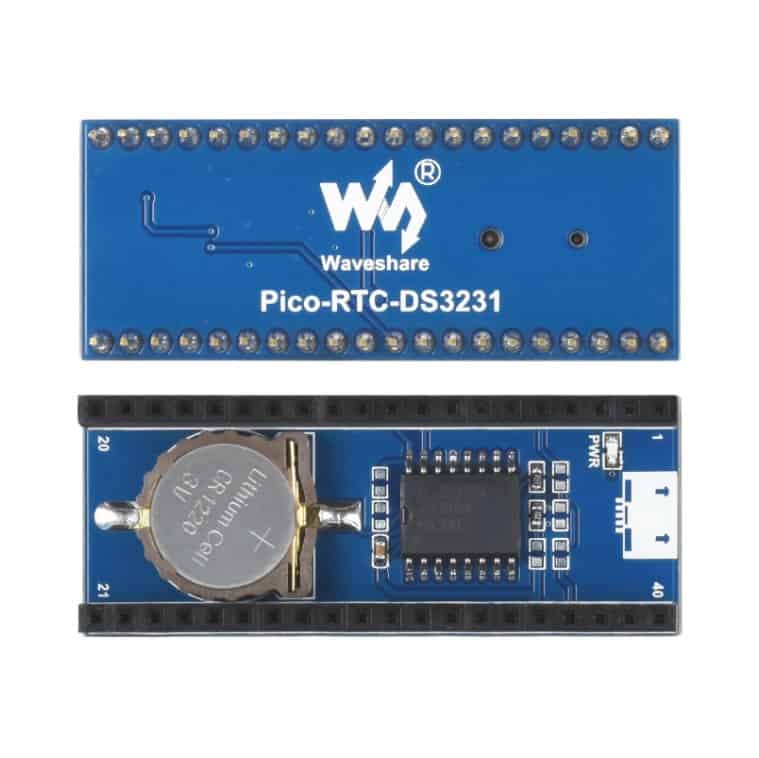

What's On Board



  1. DS3231
    high precision RTC chip, I2C bus

  2. RTC backup battery
    supports CR1220 button cell

  3. Power indicator
    enabled by soldering a 0Ω resistor on the jumper, disabled by default




  1. Raspberry Pi Pico header
    for attaching to Raspberry Pi Pico, stackable design



Pinout Definition


Outline Dimensions



PACKAGE CONTENT



Weight: 0.023 kg


  1. Pico-RTC-DS3231 x1



1

Masa po jedinici mere:0.017 Kg / Kom
Kategorija:mikro kontroler
Brend:Waveshare
Naziv:Pico-RTC-DS3231
Šifra:w19426
Uvoznik:MALINA 314 doo, Beograd
Telefon:061-640-2013
