SKU: 26356
Part Number: RTC-Battery-A
Brand: Waveshare

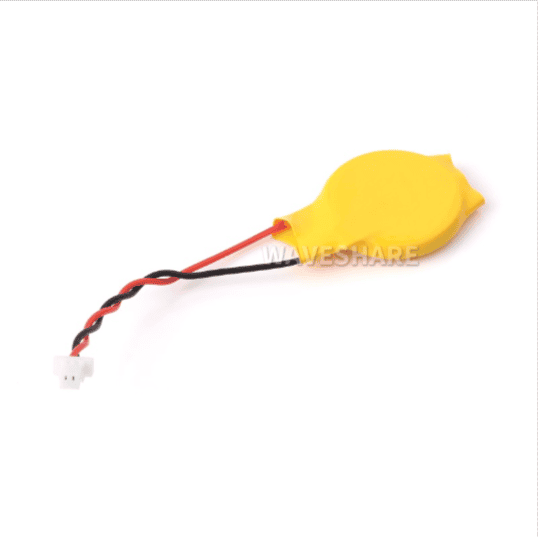

RTC Battery for Raspberry Pi 5, 25mAh Battery Capacity, 2PIN JST connector
RTC Battery for Raspberry Pi 5
2PIN JST connector, 25mAh Capacity
SAFETY CAUTIONS
- Li-ion and Li-po batteries are quite unstable. They may cause fire, personal injury, or property damage, if they're not properly recharged or used.
- Do not reversely connect the polarities when recharging or discharging the battery. Do not use inferior charger/charging panel to recharge the battery.
- Do not mix use old batteries with new ones, avoid using batteries of different brands.
- When buying Lithium battery, should always make sure the battery specification is compatible with the expansion board. Choose batteries from formal manufacturer, and ensure the batteries will work stably and safely by aging test.
- Lithium batteries have limited cycle life, they will also deteriorate as time goes by. Should be replaced with new ones when the batteries reaching their max cycle life, or working over two years, whichever comes first.
- Should be placed carefully and properly, keep it away from inflammables and explosives articles, away from children, avoid any safety accident caused by careless storage.
Specifications
VERSION |
RTC-BATTERY-A |
|
BATTERY MODEL |
LIR2025 |
|
BATTERY CAPACITY |
25mAh |
|
BATTERY DIMENSIONS |
20.2mm diameter, 2.6mm thickness |
|
RATED VOLTAGE |
3.6V |
|
MAX VOLTAGE |
4.2V |
|
BATTERY LIFESPAN |
After 300 recharge and discharge cycles, the capacity remains above 80% of the initial level |
CONNECTOR |
2PIN JST connector |
CABLE LENGTH |
50mm |
OTHERS |

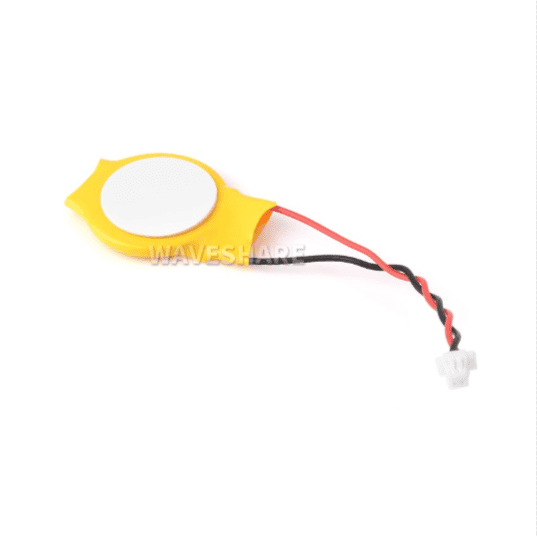

with double-sided tape on the back |

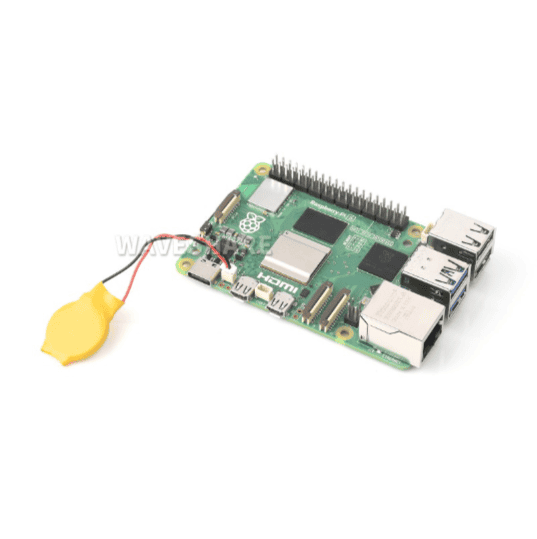

Application Example
Supports Recharging Via The Raspberry Pi 5, Ensuring Longer Battery Life
* for reference only, the Raspberry Pi 5 is NOT included.
PACKAGE CONTENT Weight: 0.003 kg
RTC-Battery x1
