SKU: 20978
Part Number: RS485 TO ETH (B)
Brand: Waveshare
Korisne informacije:
RS485_TO_ETH_(B) Industrial Serial Server, RS485 To RJ45 Ethernet, TCP/IP To Serial, Rail-Mount Support

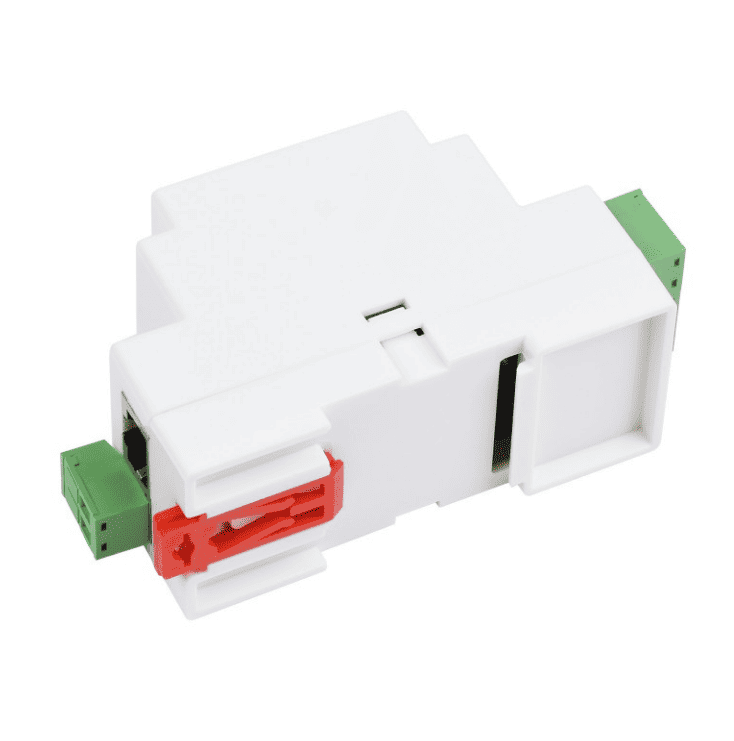

RS485 To RJ45 Ethernet Module Rail-mount RS485 serial server
Features At A Glance This is a RS485 device data acquisitor / IoT gateway designed for industrial environment. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS485 to JSON, etc. The module features RS485 and Ethernet ports, uses screw terminals for power input, supports 9~24V wide range power supply. Rail-mount flame-retardant case design, small in size, easy to install. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring...
Specifications
Product |
RS485 TO ETH (B) |
|
Product Type |
Serial server, Modbus Gateway, MQTT Gateway |
Basic Function |
Bi-directional transparent data transmission between RS485 and Ethernet |
Communication interface |
RS485 port x 1, Ethernet port x 1 |
Power supply |
9 ~ 24V DC screw terminal |
|
Isolation Protection |
N/C |
|
Communication |
Ethernet |
common network port |
|
10 / 100M auto-negotiation RJ45 connector, 2 KV surge protection |
Serial port |
RS485 |
|
Serial specification |
Baudrate |
300 ~ 115200 bps |
Parity bit |
none, odd, even, mark, space |
Data bit |
5 ~ 9 bits |
Flow control |
N/A |
Software |
Protocol |
ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS |
Configuration |
host, web browser, device management functions library |
Communication method |
TCP/IP direct communication, VCOM |
Operating mode |
TCP server, TCP client (coexisting with TCP server), UDP, UDP multicast |
Environment requirement |
Operating temperature |
-40℃ ~ 85℃ |
Storage temperature |
-40℃ ~ 100℃ |
Humidity range |
5% ~ 95% relative humidity |
Dimensions |
L × W × H: 87 × 36 × 59 mm |
Primary Function Bi-Directional Transparent Data Transmission Between RS485 And Ethernet

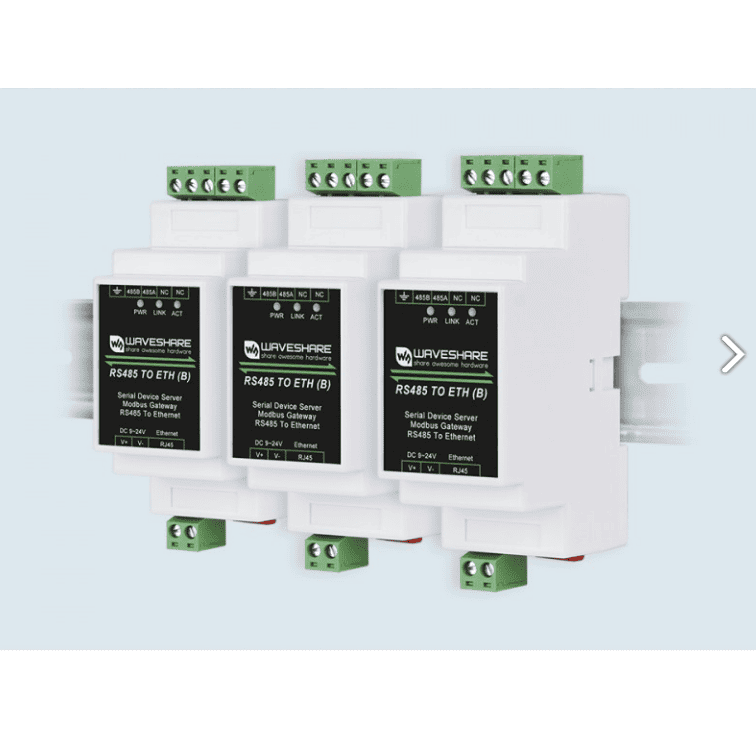

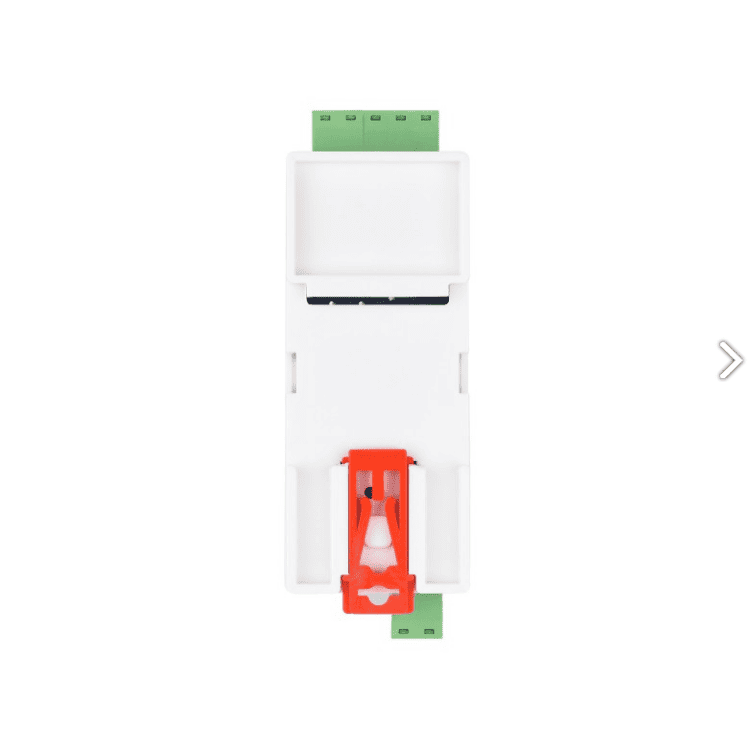

Rail-Mount Support Easy To Combine Multi Rail-Mounted Serial Server Together, More Freely
Modbus Gateway Support Suitable For Modbus Gridding Upgrade, Can Be Used With 3D Configuration Software
Multi Communication Modes Supports TCP Server / TCP Client / UDP Mode / UDP Multicast
MQTT/JSON To Modbus More Flexible Conversion Between Different Protocols
When used as MQTT gateway, the devices can upload serial data to MQTT server by MQTT protocol through transparent transmission, supported servers including Baidu Cloud MQTT, Alibaba Cloud MQTT, China Mobile OneNet, etc. The acquired Modbus RTU or non-standard serial data can be parsed into JSON format and packaged into MQTTdata packet for uploading.
When used as JSON data acquisition gateway, the devices can be connected to data acquisition instruments through RS485 connection, then acquire data automatically, convert the data into JSON format, and finally post it to server. The acquired data supports Modbus RTU 645 instrument 97 version, 645 instrument 07 version, as well as sorts of non-standard RS485 protocols. The uploaded data format can be configured via host, and the JSON upload protocol can be MQTT protocol, HTTP POST protocol, HTTP GET protocol, and so on.
Multi Hosts Roll-Polling Support Different Network Devices Will Be Identified And Responsed Respectively,
No More Crosstalk Issue While Communicating With Multi Network Devices
User-Defined Heartbeat/Registration Packet Easy For Cloud Communication And Device Identification
NTP Protocol Support Getting Network Time Info For Serial Output Or Data Upload
Multi Configuration Methods Supports Web Browser Configuration, Obtaining Dynamic IP Via DHCP,
DNS Protocol Connected Domain Server Address

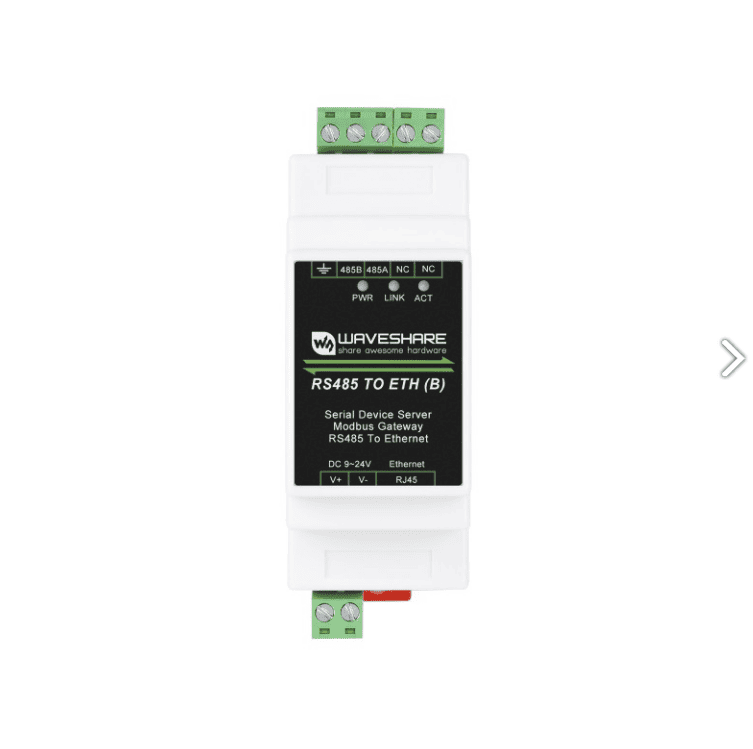

Interface Introduction
* for the power supply range, please refer to the label of the corresponding version. Outline Dimensions
- PACKAGE CONTENT
Weight: 0.077 kg
- RS485 TO ETH (B) x1
