| PRODUCT TYPE | Electromagnetic isolated RS232 TO RS485 asynchronous bi-directional converter | |
|---|---|---|
| DATA RATE | 300~115200bps | |
| DEVICE PORT | RS232/RS485 standard complaint | |

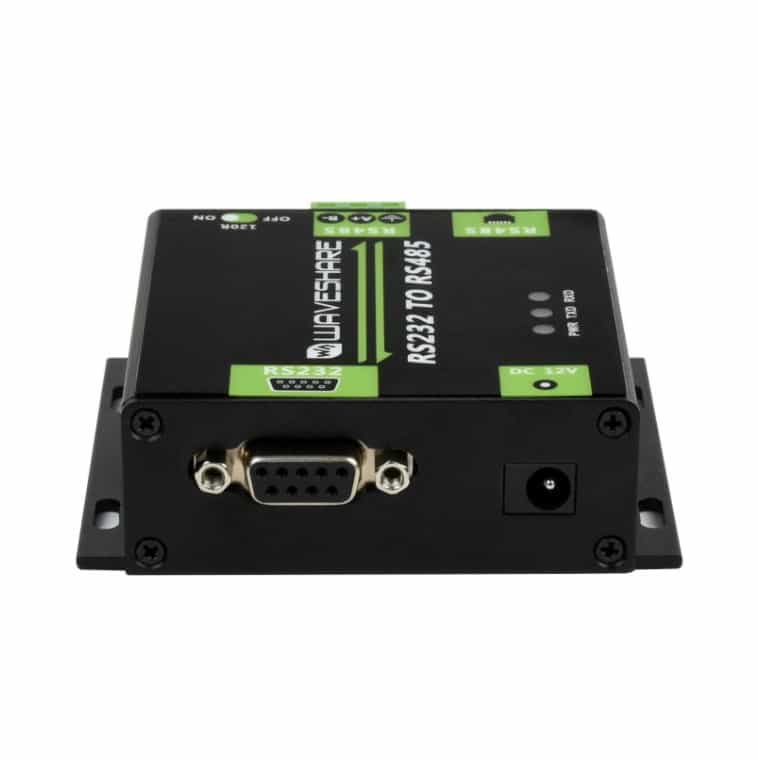

| RS232 PORT | Connector | DB9 female |
| Transmission distance | ~15m | |
| Transmission mode | point-to-point | |

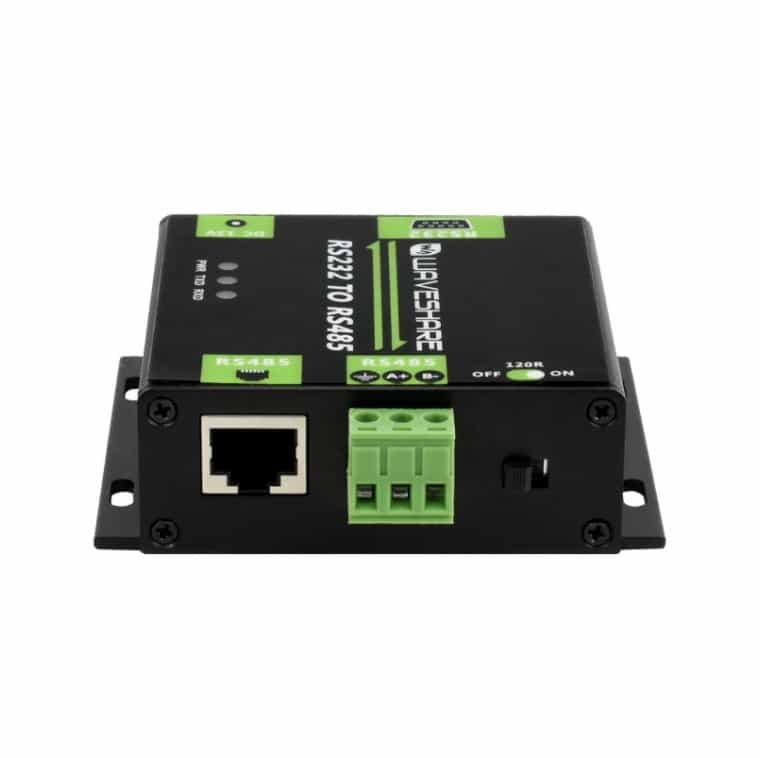

| RS485 PORT | Connector | screw terminal + RJ45 connector |
| Direction control | hardware automatic control | |
| Protection | 600W lightning-proof and surge-suppress, 15KV ESD | |
| Terminal resistor | 120R, enabled/disabled via switch | |
| Transmission distance | ~1200m | |
| Transmission mode | point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more) | |
| LED INDICATORS | PWR | power indicator, light up red when power supply is connected |
| TXD | TX indicator, blinking green while the RS232 port is transmitting data | |
| RXD | RX indicator, blinking blue while the RS232 port is receiving data | |
| OPERATING ENVIRONMENT | Temperature | -15℃~70℃ |
| Humidity | 5%RH~95%RH | |
Converting The RS232 Signal Into Balanced Differential RS485 Signal
Stable transmission on rate of 300~115200bps, about 1200m transmission distance of RS485, about 15m transmission distance of RS232
Provides Both Screw Terminal And RJ45 Connector For RS485, Meets Different Industrial Application Requirements

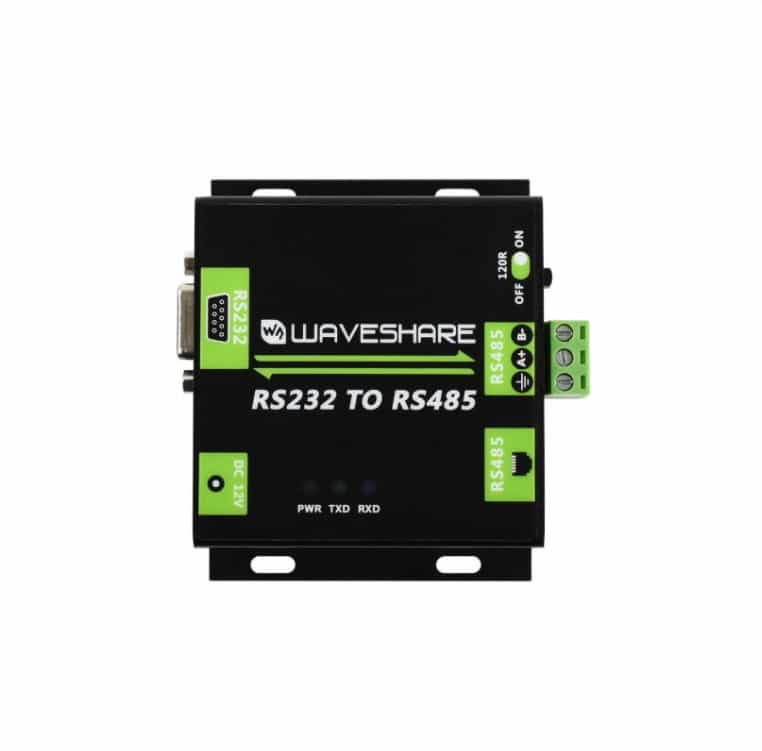

Onboard 3x LED Indicators For Checking Power Connection And Signal TX/RX Status
Aluminium Alloy Enclosure With Sand Blasting And Anodic Oxidation Processing
Solid And Durable, Nice Looking
The RS232 TO RS485 Converter Can Be Widely Used For Point-To-Point, Point-To-Multipoint, Long Distance Cascaded Communication Network Between Two Hosts, Or Between Host And MCU/Peripheral
