RS232 muški konektor
SKU: 26121
Part Number: RS232 TO RS485/422
Brand: Waveshare
Korisne informacije:
www.waveshare.com/wiki/RS232_TO_RS485/422 RS232 To RS485/422 Active Digital Isolated Converter, Onboard Original SP3232EEN And SP485EEN Chips
RS232 To RS485/422 Active Digital Isolated Serial Converter
Adopts SP3232EEN and SP485EEN chips solution, provides stable communication with built-in galvanic isolation, lightningproof and anti-electrostatic protection and so on, it is an ideal choice for industrial control equipments and/or applications with high communication requirement.
Features At A Glance
- Onboard SP3232EEN and SP485EEN chips. Fast communication, stable and reliable, better compatibility
- Stable transmission at the rate of 300~921600bps
- Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
- Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
- Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
- Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance
- Onboard 15KV ESD isolation protection and 600W lightningproof & anti-surge protection
- Onboard 120R terminal resistor on the RS485/RS422 interface, disable by default, configurable by jumper
- Onboard power supply screw terminal, allows 5V~36V DC wide range input
- 3 LEDs for indicating the power and transceiver status
- Industrial rail-mount ABS case design, small in size, easy to install, and cost-effective
Version Options
RS232 TO RS485/422

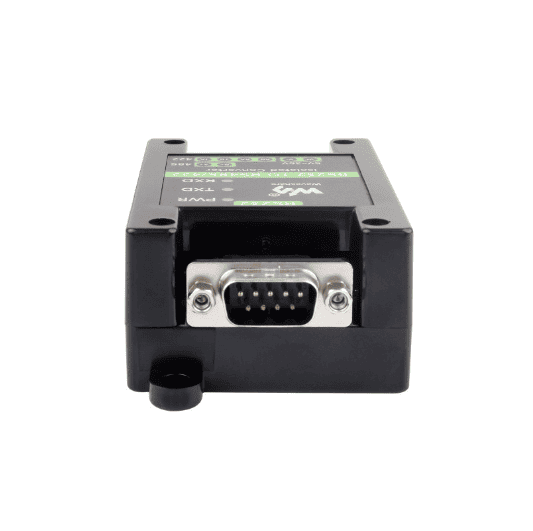

RS232 DB9 male port
RS232 TO RS485/422 (F)Specifications
PRODUCT TYPE |
Active digital isolated RS232 to RS485/422 serial converter |
POWER SUPPLY INTERFACE |
Power supply |
5~36V DC |
Protection |
Anti-reverse |
BAUD RATE |
300 ~ 921600bps (300~115200bps is recommended for long-distance reliable communication) |
DEVICE PORT |
RS232, RS485/422 |
RS232 |
Connector |
DB9 male/female |
Transmission distance |
about 15m |
Transmission mode |
point-to-point |
RS485/422 |
Connector |
Screw terminal |
Direction control |
Hardware automatic control |
Protection |
600W lightningproof and surge-suppress, 15KV ESD protection |
Terminal resistor |
120R, enabled/disabled via switch |
Transmission distance |
About 1.2km |
Transmission mode |
Point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more) |
APPEARANCE |
Enclosure |
Rail-mount ABS case, suitable for 35mm DIN rail |
Dimensions |
81.9 × 54.0 × 32.0mm |
Primary Function
Converting The RS232 Signal Into Balanced Differential RS485/422 Signal For Interface Converting, Expanding Nodes And Long-Distance Communication.
Galvanic Isolated Design
- Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
- Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
Multiple Protection, Safe And Stable
Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection. Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance.
Transmission Distance Up To 1.2km
The RS232 Signal Can Be Converted Into A Balanced Differential RS485/422 Signal With Stable Transmission Rate, The Transmission Distance Is About 1.2km For RS485/422

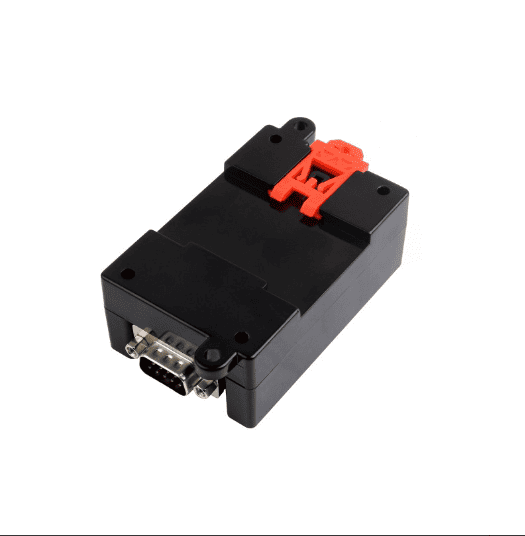

Wall-Mount And Rail-Mount Support

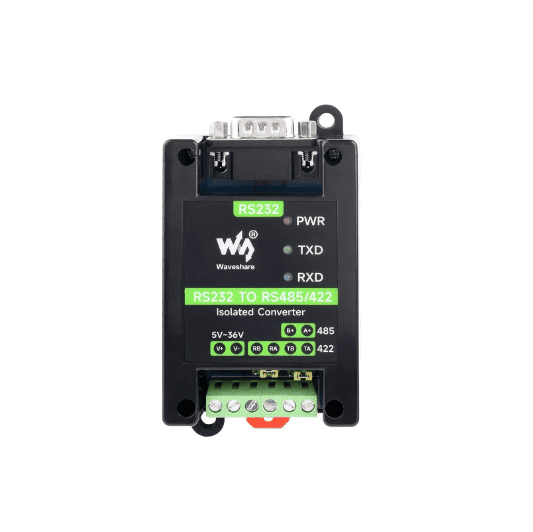

Interface Introduction

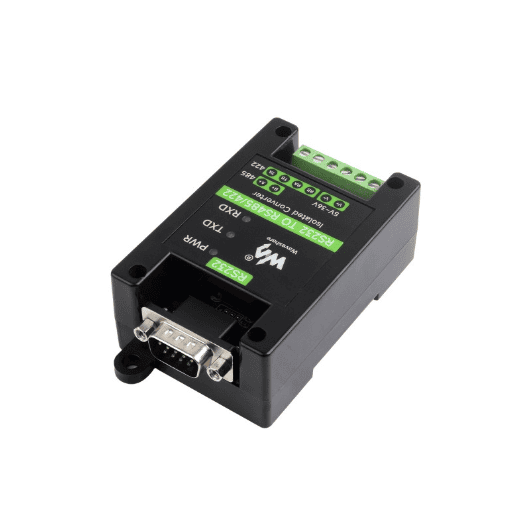

Product Show
Outline Dimensions
- PACKAGE CONTENT
Weight: 0.078 kg
RS232 TO RS485/422
- RS232 TO RS485/422 x1
- Screwdriver x1
