RS232 na RJ45 Ethernet, TCP/IP to serial, za DIN šinu,
bez POE RS232 na RJ45 Ethernet, TCP/IP to serial, za DIN šinu,
sa POE opcijom SKU: 23950
Part Number: RS232 TO ETH (B)
Brand: Waveshare
Korisne informacije:
www.waveshare.com/wiki/RS232_TO_ETH_(B) Industrial Serial Server, RS232 To RJ45 Ethernet, TCP/IP To Serial, Rail-Mount Support, With POE Function(Optional)
RS232 To RJ45 Ethernet Module
Rail-mount RS232 serial server
Features At A Glance
This is a RS232 device data acquisitor / IoT gateway designed for industrial environment. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS232 to JSON, etc. The module features RS232 and Ethernet port(POE function is optional), uses screw terminals for power input. Rail-mount case design, small in size, easy to install. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring...
Specifications
PRODUCT |
RS232 TO ETH (B) |
|
Product Type |
Serial server, Modbus Gateway, MQTT Gateway |
Basic Function |
Bi-directional transparent data transmission between RS232 and Ethernet |
Communication interface |
RS232 port x 1, Ethernet port x 1 |
Power supply |
6 ~ 36V DC screw terminal |
6 ~ 36V DC screw terminal, or PoE port |
Isolation Protection |
Power isolation, Signal isolation |
COMMUNICATION |
Ethernet |
common network port |
|
10 / 100M auto-negotiation RJ45 connector, 2 KV surge protection |
Serial port |
Isolated RS232 |
SERIAL SPECIFICATION |
Baudrate |
300 ~ 115200 bps |
Parity bit |
none, odd, even, mark, space |
Data bit |
5 ~ 9 bits |
Flow control |
N/A |
SOFTWARE |
Protocol |
ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS |
Configuration |
host, web browser, device management functions library |
Communication method |
TCP/IP direct communication, VCOM |
Operating mode |
TCP server, TCP client (coexisting with TCP server), UDP, UDP multicast |
OTHERS |
Operating temperature |
-40℃ ~ 85℃ |
Humidity range |
5% ~ 95% relative humidity |
Dimensions |
L × W × H: 87 × 36 × 59 mm |
Primary Function
Bi-Directional Transparent Data Transmission Between RS232 And Ethernet
Rail-Mount Support
Easy To Combine Multi Rail-Mounted Serial Server Together, More Freely
Modbus Gateway Support
Suitable For Modbus Gridding Upgrade, Can Be Used With Specific Configuration Software
Multi Communication Modes
Supports TCP Server / TCP Client / UDP Mode / UDP Multicast
MQTT/JSON To Modbus
More Flexible Conversion Between Different Protocols
When used as MQTT gateway, the devices can upload serial data to MQTT server by MQTT protocol through transparent transmission, supported servers including Baidu Cloud MQTT, Alibaba Cloud MQTT, China Mobile OneNet, etc. The acquired Modbus RTU or non-standard serial data can be parsed into JSON format and packaged into MQTTdata packet for uploading.
When used as JSON data acquisition gateway, the devices can be connected to data acquisition instruments through RS232 connection, then acquire data automatically, convert the data into JSON format, and finally post it to server. The acquired data supports Modbus RTU 645 instrument 97 version, 645 instrument 07 version, as well as sorts of non-standard RS232 protocols. The uploaded data format can be configured via host, and the JSON upload protocol can be MQTT protocol, HTTP POST protocol, HTTP GET protocol, and so on.
Multi Hosts Roll-Polling Support
Different Network Devices Will Be Identified And Responsed Respectively,
No More Crosstalk Issue While Communicating With Multi Network Devices
User-Defined Heartbeat/Registration Packet
Easy For Cloud Communication And Device Identification
NTP Protocol Support
Getting Network Time Info For Serial Output Or Data Upload
Multi Configuration Methods
Supports Web Browser Configuration, Obtaining Dynamic IP Via DHCP,
DNS Protocol Connected Domain Server Address

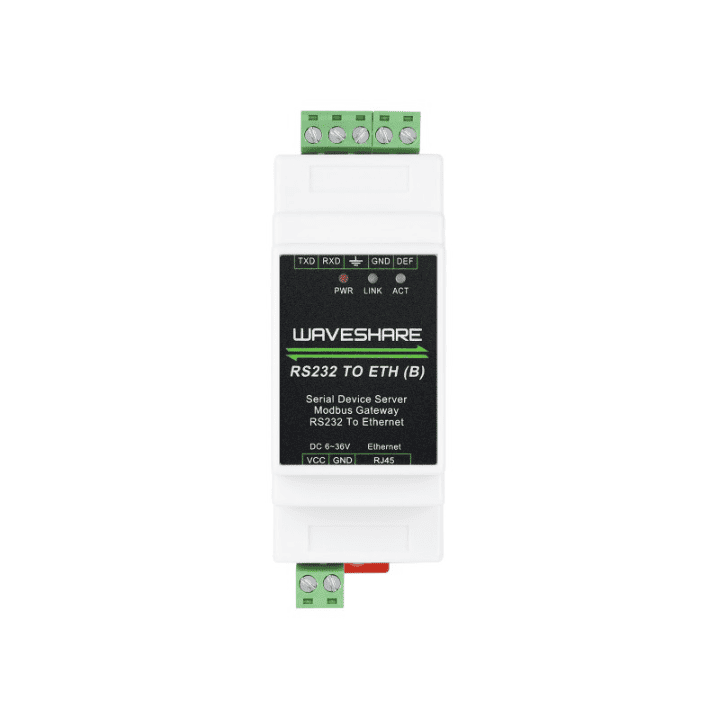

Interface Introduction

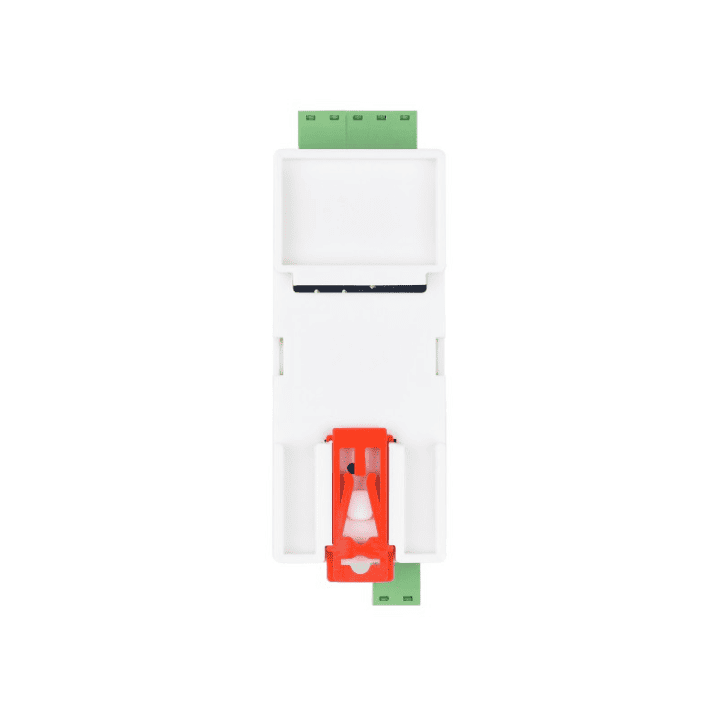

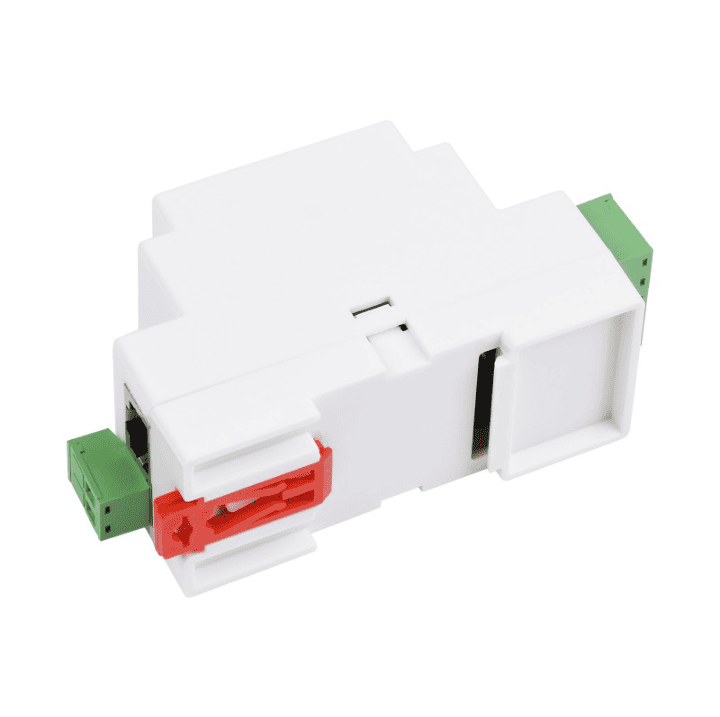

Product Show
Outline Dimensions
- PACKAGE CONTENT
Weight: 0.055 kg The power supply of this product is not included, it is recommended to used with a 12V Industrial DIN-Rail Power Supply
- OPTIONS RS232 TO ETH Module x1
