| Power supply | 5~36V DC |
Protection |
Anti-reverse |
DEVICE PORT |
RS232/485/422, CAN |
ISOLATED CAN |
Connector |
Screw terminal |
Direction control |
Hardware automatic control |
Resistor |
Onboard 120R matching resistor |
Baud rate |
10kbps~1000kbps |
ISOLATED RS232 |
Connector |
DB9 female |
Transmission distance |
about 15m |
Transmission mode |
point-to-point |
Baud rate |
1200bps~460800bps |
ISOLATED RS485/422 |
Connector |
Screw terminal |
Direction control |
Hardware automatic control |
Protection |
TVS diode, surge protection & ESD protection, power isolation and signal isolation |
Resistor |
Onboard reserved 120R matching resistor, NC by default, enabled via jumper |
Transmission mode |
Point-to-multipoints (485 mode: up to 32 nodes, it is recommended to use repeaters for 16 nodes or more； 422 mode: up to 256 nodes, it is recommended to use repeaters for 16 nodes or more) |
Baud rate |
1200bps~460800bps |
INDICATORS |
PWR |
Red power indicator, lights up when voltage is detected |
RUN |
System operating indicator, turns off if CAN bus is abnormal |
COM |
RS232/485/422 RX indicator, lights up when RS232 or 485 or 422 port receives data |
CAN |
CAN RX indicator, lights up when CAN port receives data |
OPERATING ENVIRONMENT |
Temperature range |
-15 ~ 70℃ |
Primary Function
Achieves Data Transmission And Conversion Between RS232/RS485/RS422 And CAN Interfaces
Supports Wide Range Baud Rate
RS232/485/422 Communication Baud Rate: 1200 ~ 460800bps
CAN Communication Baud Rate: 10kbps ~ 1Mbps
Supports Four Operating Modes
Transparent Conversion, Transparent With Identifiers Conversion, Format Conversion, And Modbus RTU Protocol Conversion
Supports Host Computer Configuration
Galvanic Isolated Design
- Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
- Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
Multiple Protection, Safe And Stable
Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection. Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance.

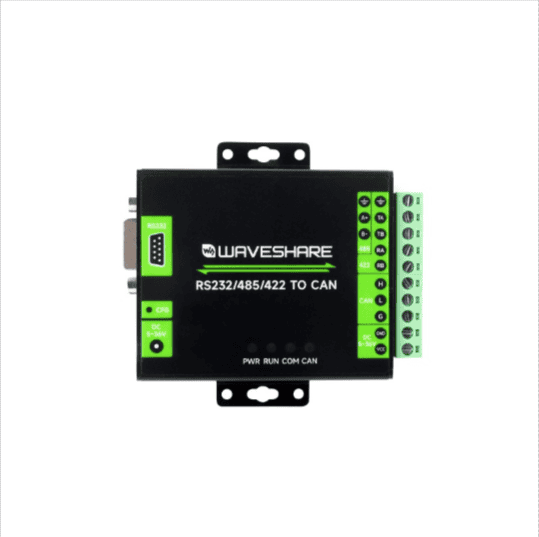

Interface Introduction
Pin Definition
Wall-Mount And Rail-Mount Support
Application Examples

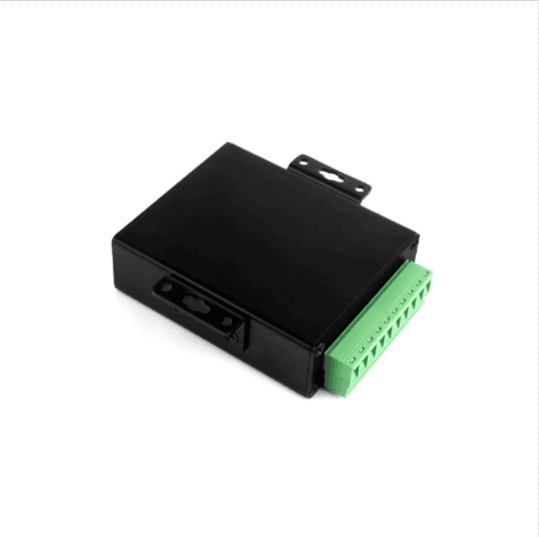

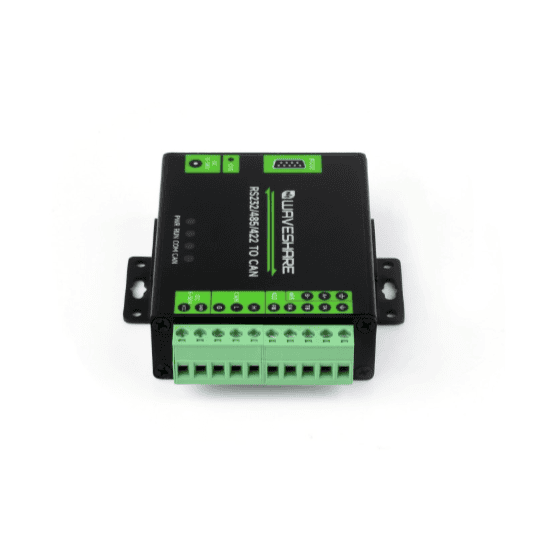

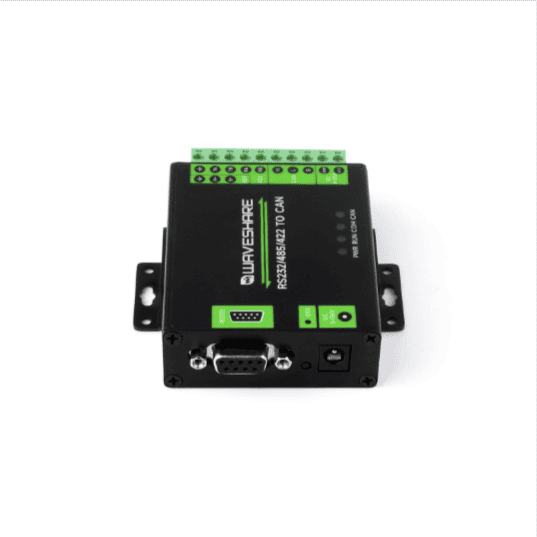

Product Show
Outline Dimensions
- PACKAGE CONTENT
Weight: 0.148 kg
The power supply of this product is not included, it is recommended to purchase 12V power supply if you need it.
- RS232/485/422 TO CAN x1
- Rail-mount buckle x1
- Screwdriver x1
