SKU: 20869
Part Number: RPi FPC Camera (B)
Brand: Waveshare
Korisne informacije:

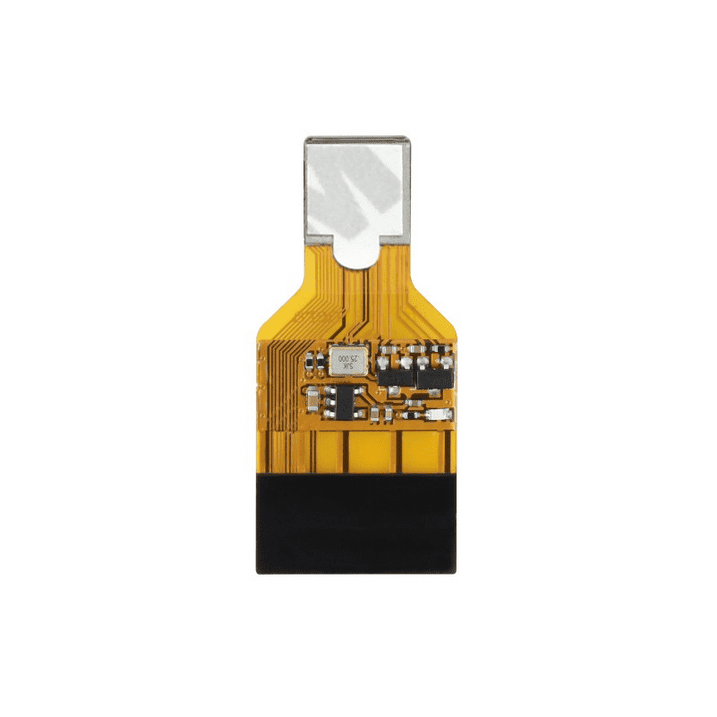

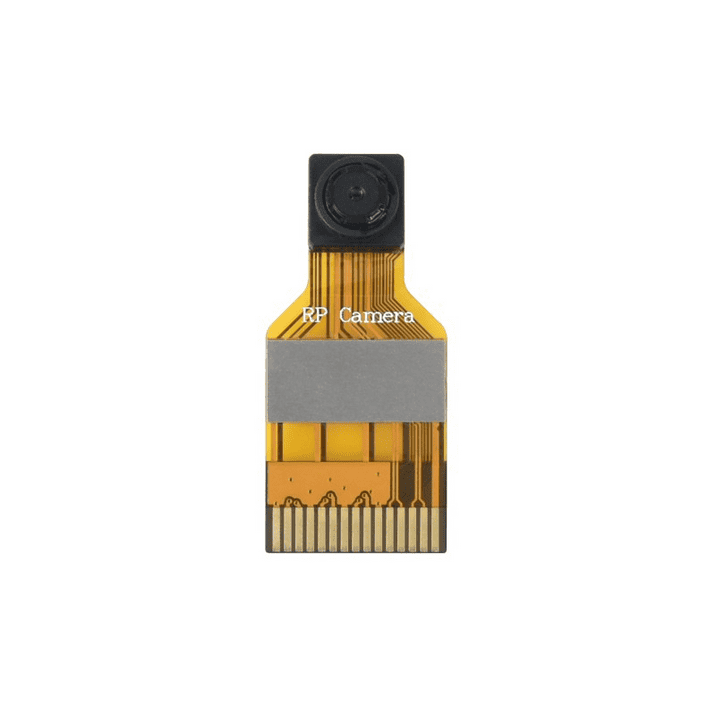

RPi_FPC_Camera_(B) RPi FPC Camera (B) for Raspberry Pi, OV5647, 5MP, Mini Size FPC Camera for Raspberry Pi 5MP mini size camera module
Compatible with Raspberry Pi series boards
Device Support
Raspberry Pi series
Supports Pi 4B / 3A+ / 3B+ / 3B / B+ / A+,
and CM3/3+/4 (extra adapter board required)
Specifications
Sensor |
OV5647 |
CMOS size |
1/4 inch |
Pixels |
5MP |
Aperture |
F2.4 |
Focal length |
3.89mm |
Field of view |
72.9° |
Distortion |
< 1.5% |
Depth of Field |
20cm ~ ∞ |
Image |
2592 × 1944 still picture resolution |
Video |
1920 × 1080p @30, 1280 × 720p @60, 640 × 480p @60, 640 × 480p @90 |
More clear 1080P HD video recording

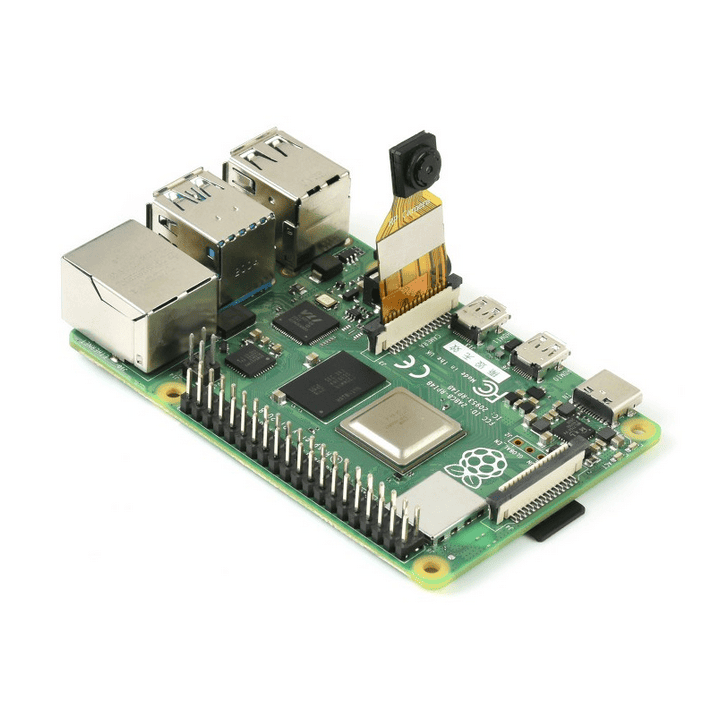

Application examples mini size, direct integration into displays or Raspberry Pi-powered projects,
suitable for sorts of compact applications
Raspberry Pi and display are NOT included. Outline dimensions
Package Content Weight: 0.011 kg
- RPi FPC Camera (B) x1
- Foam gasket x1
