Konektori, žice, protobord SKU: 29394
Part No.: RP2350-Tiny-Kit
Brand: Waveshare
Korisne informacije:
www.waveshare.com/wiki/RP2350-Tiny Waveshare RP2350-Tiny Development Board, Raspberry Pi Microcontroller Development Board, Based On RP2350A Dual-core & Dual-architecture Microcontroller, Optional for USB Port Adapter Board
RP2350-Tiny Development Board Based On RP2350A, Optional for USB Port Adapter Board
Castellated Module, Suitable For SMD Applications
Board specifications
- RP2350A microcontroller chip designed by Raspberry Pi in the United Kingdom
- Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard 3 RISC-V processor, flexible clock running up to 150 MHz
- 520KB of SRAM, and 4MB of on-board Flash memory
- Onboard FPC 8PIN connector, adapting USB Type-C port via adapter board
- Castellated module allows soldering direct to carrier boards
- USB 1.1 with device and host support
- Low-power sleep and dormant modes
- Drag-and-drop programming using mass storage over USB

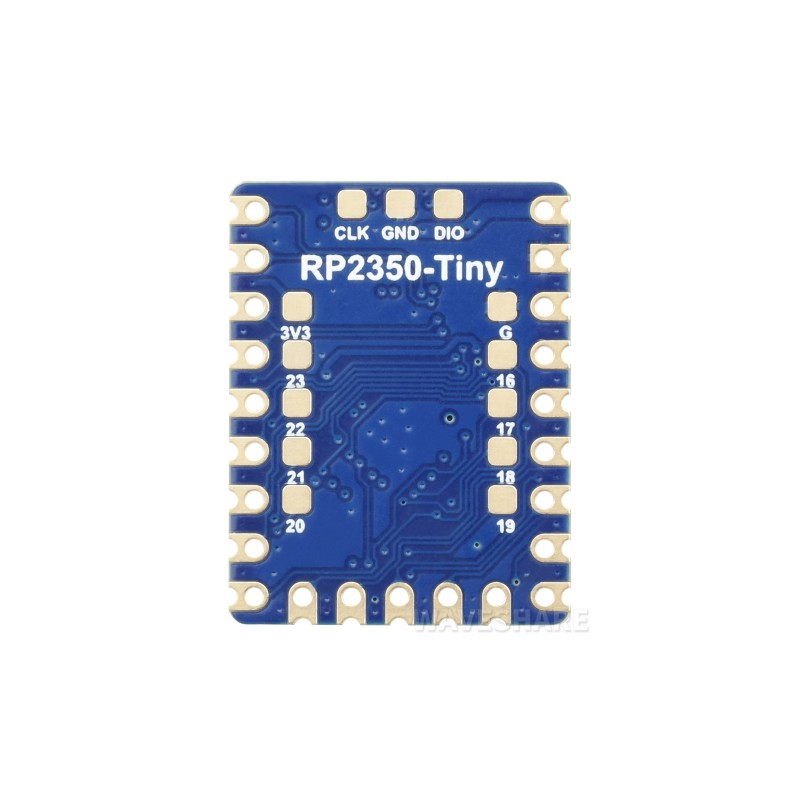

- 28 × multi-function GPIO pins (20× via edge pinout, others via solder points)
- 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
- Accurate clock and timer on-chip
- Temperature sensor
- Accelerated floating-point libraries on-chip
- 12 × Programmable I/O (PIO) state machines for custom peripheral support

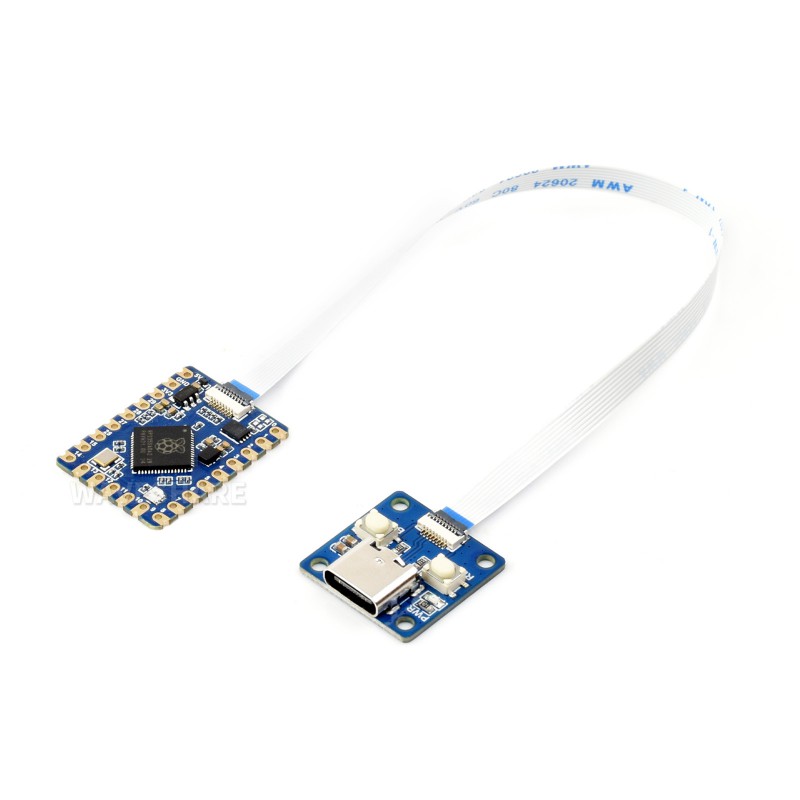

RP2350-Tiny-Kit Development board + USB port adapter + FPC cable
Support C/C++, MicroPython Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started
Dual-core, dual-architecture Adopts dual-core Arm Cortex-M33 processor and dual-core Hazard 3 RISC-V processor, flexible clock running up to 150 MHz
28 × multi-function GPIO pins configurable pin function, allows flexible development and integration
* Reserved two 0402 resistor pads for user mode selection, you need solder the corresponding resistors or short the pads and complete the corresponding programming.

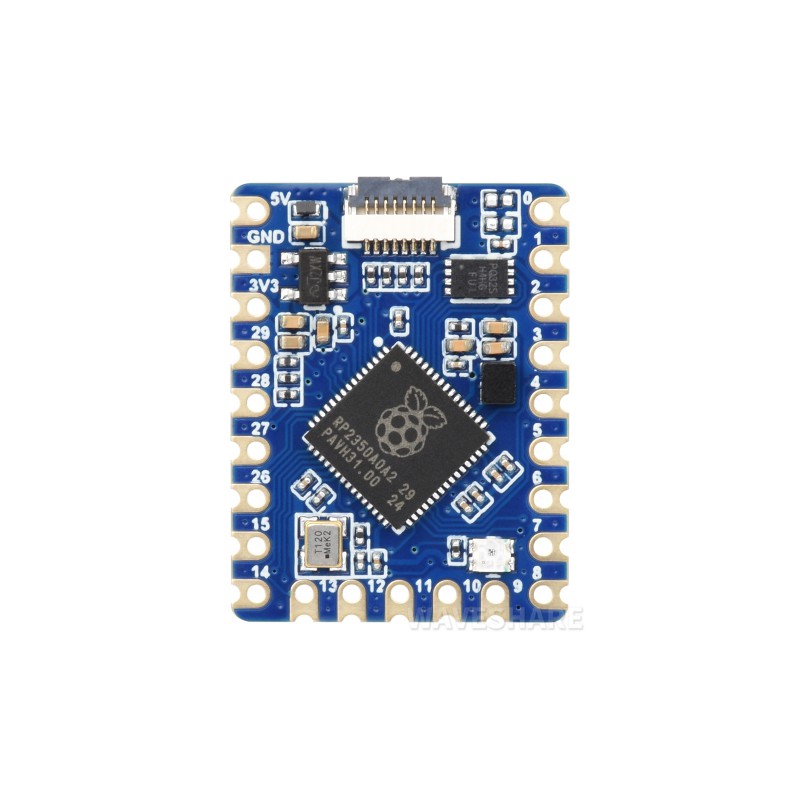

What's On Board
- FPC connector
0.5mm pitch 8PIN
- ME6217C33M5G
Low dropout regulator, 800mA output (Max.)
- P25Q32SH-UXH-IR
4MB NOR-Flash
- RP2350A
Dual-core and dual-architecture design, up to 150 MHz operating frequency
- WS2812
RGB LED Indicator
Product Show
Outline dimensions RP2350-Tiny

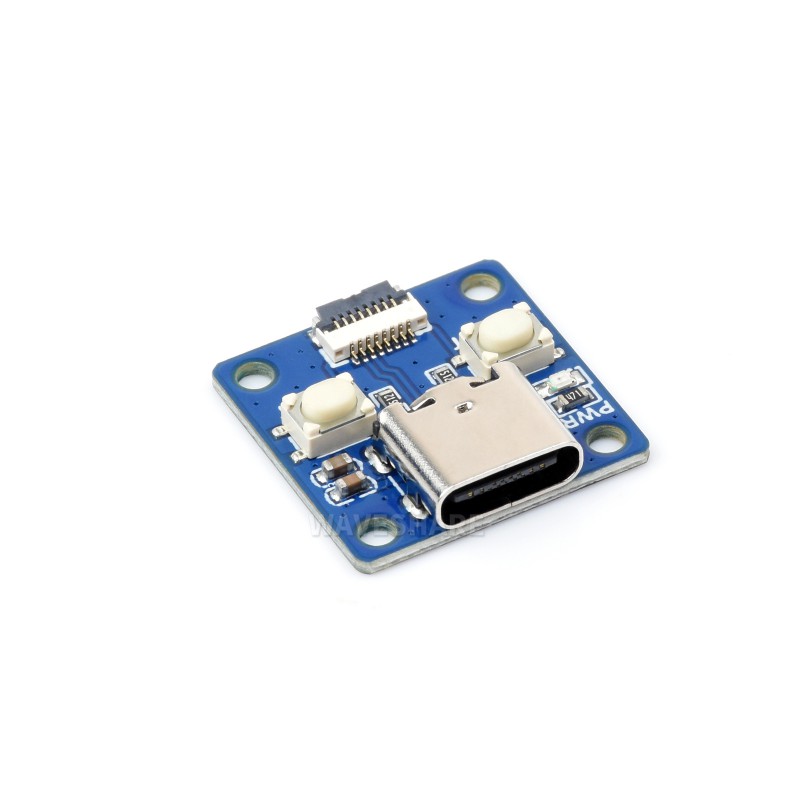

USB Port Adapter
Package content: RP2350-Tiny-Kit
- RP2350-Tiny x1
- USB port adapter x1
- 8PIN FPC cable ~15cm x1
