SKU:29025
Part No.:RP2350-Touch-LCD-1.28
Brand:Waveshare
Korisne informacije:
www.waveshare.com/wiki/RP2350-Touch-LCD-1.28 RP2350 MCU Board, With 1.28inch Round Touch LCD, Dual-core & Dual-architecture Design, 240×240 Pixels, 65K Color, IPS Panel, Optional For CNC Metal Case
RP2350 MCU Board with 1.28inch Touch LCD Based on Raspberry Pi RP2350
Version options
RP2350-Touch-LCD-1.28 without case
Features RP2350-Touch-LCD-1.28 is a low-cost, high-performance MCU board designed by Waveshare. Tiny size with onboard 1.28inch capacitive touch display, Li-ion battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope) and so on, which makes it easy for you to integrate it into products quickly.
Key features include:
- RP2350 microcontroller chip designed by Raspberry Pi in the United Kingdom
- Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard3 RISC-V processor, flexible clock running up to 150 MHz
- 520KB of SRAM, and 16MB of onboard Flash memory
- Type-C connector, keeps it up to date, easier to use

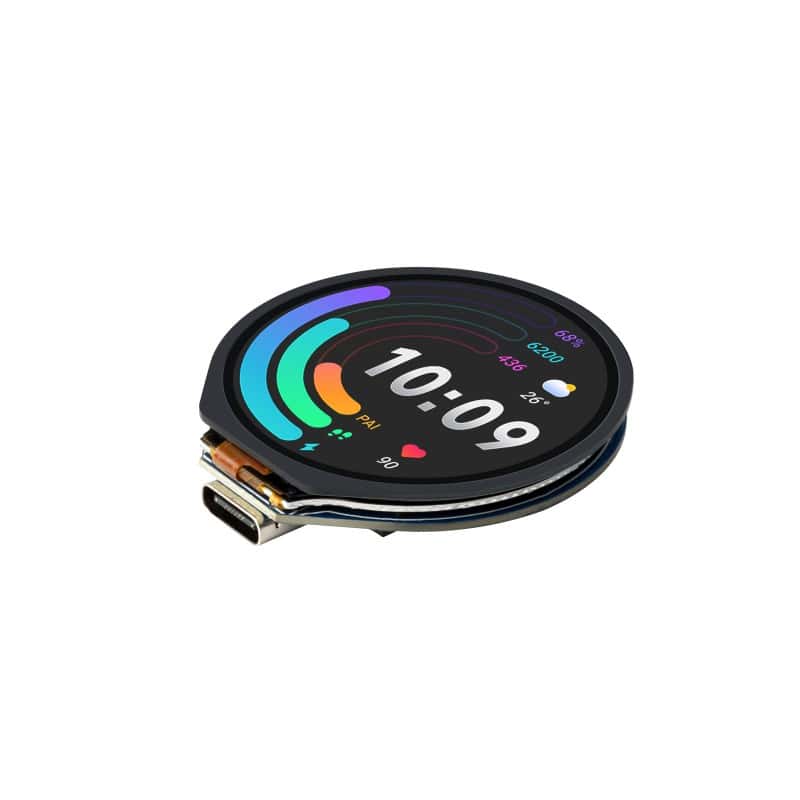

- Onboard 1.28inch capacitive touch LCD, 240×240 pixels, supports 65K color for clear color picture display
- Lithium battery recharge/discharge header, suitable for mobile devices
- USB 1.1 with device and host support
- Low-power sleep and dormant modes
- Drag-and-drop programming using mass storage over USB
- Accurate clock and timer on-chip
- Temperature sensor
- 6 × GPIO pin via SH1.0 connector
Optional for CNC metal case Adopts CNC metal case for fast heat dissipation, with Acrylic dull-polish bottom plate
Small size, touch more possibilities Suitable for various smart devices development, can realize human-computer interaction function
Dual-core, dual-architecture The unique dual-core, dual-architecture capability of RP2350 allows users to choose between a pair of industry-standard Arm Cortex-M33 cores, and a pair of open-hardware Hazard3 cores, giving developers a chance to experiment with the RISC-V architecture in a stable, well-supported environment
C/C++, MicroPython, Arduino support Comprehensive SDK, dev resources, tutorials to help you easily get started

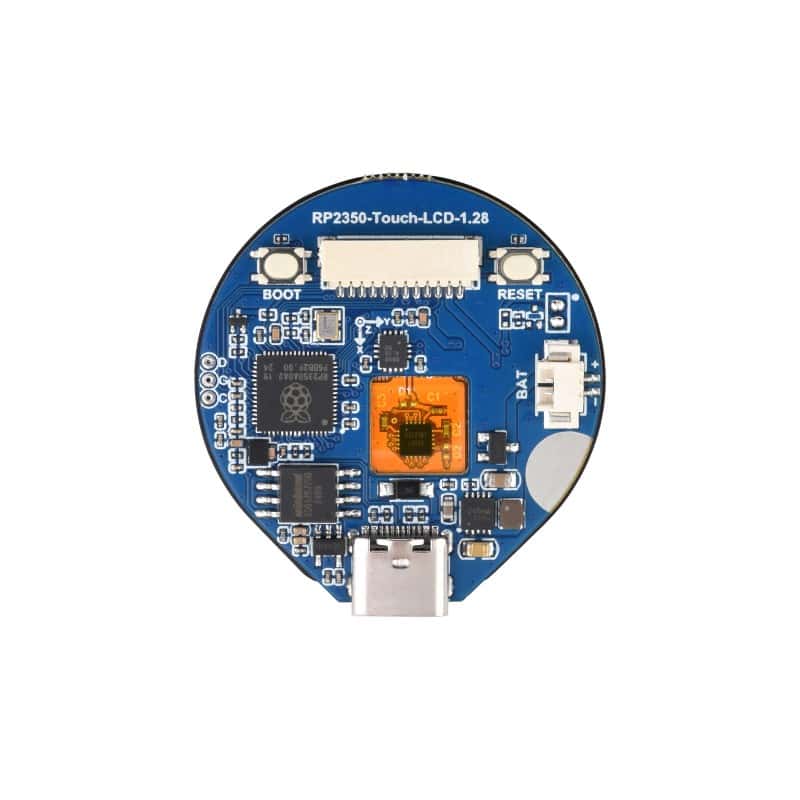

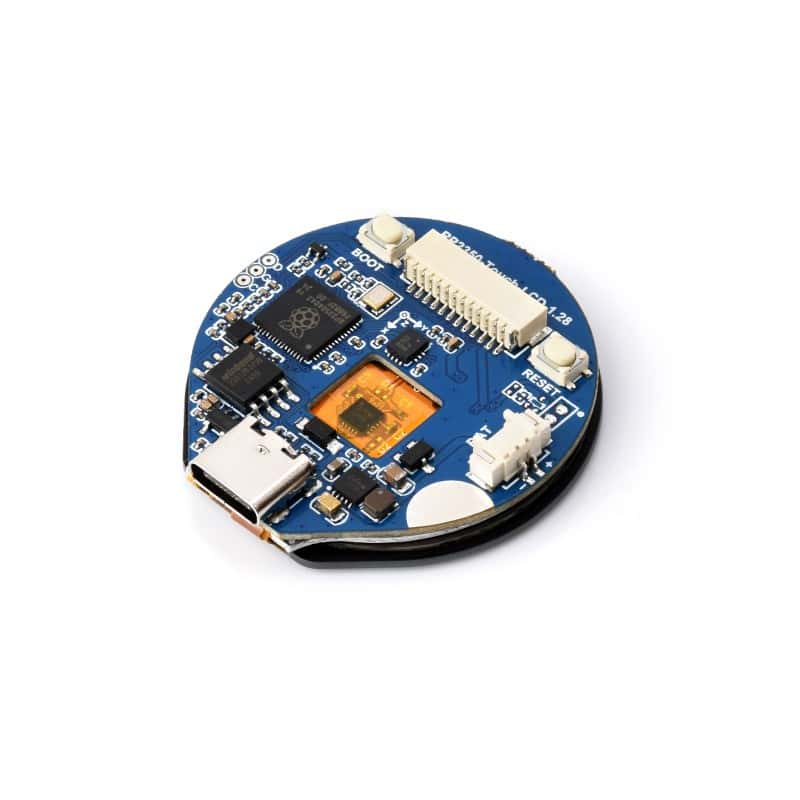

What's On Board
- USB Type-C connector
for program burning, USB 1.1 with device and host support
- ETA6098
high efficiency Lithium battery recharge manager
- RT9193-33PB
300mA low dropout, low noise, ultra-fast LDO
- W25Q128JVSIQ
16MB NOR-Flash
- RP2350
Dual-core and dual-architecture design, up to 150 MHz operating frequency
- QMI8658
6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer.
- BOOT button
Press it when resetting to enter download mode
- RESET button
- MX1.25 battery header
MX1.25 2P connector, for 3.7V Lithium battery, supports charging and discharging
Pin definition
Outline dimensions without case
Package content: Weight: 0.012 kg
RP2350-Touch-LCD-1.28
- RP2350-Touch-LCD-1.28 x1
- SH1.0 12PIN cable x1
