SKU:28987
Part No.:RP2350-LCD-1.28-B
Brand:Waveshare
Korisne informacije:
www.waveshare.com/wiki/RP2350-LCD-1.28 RP2350 MCU Board, With 1.28inch Round LCD, Dual-core & Dual-architecture Design, 240×240 Pixels, 65K Color, IPS Panel, Optional For CNC Metal Case
RP2350 MCU Board with 1.28inch LCD Based on Raspberry Pi RP2350
Version options

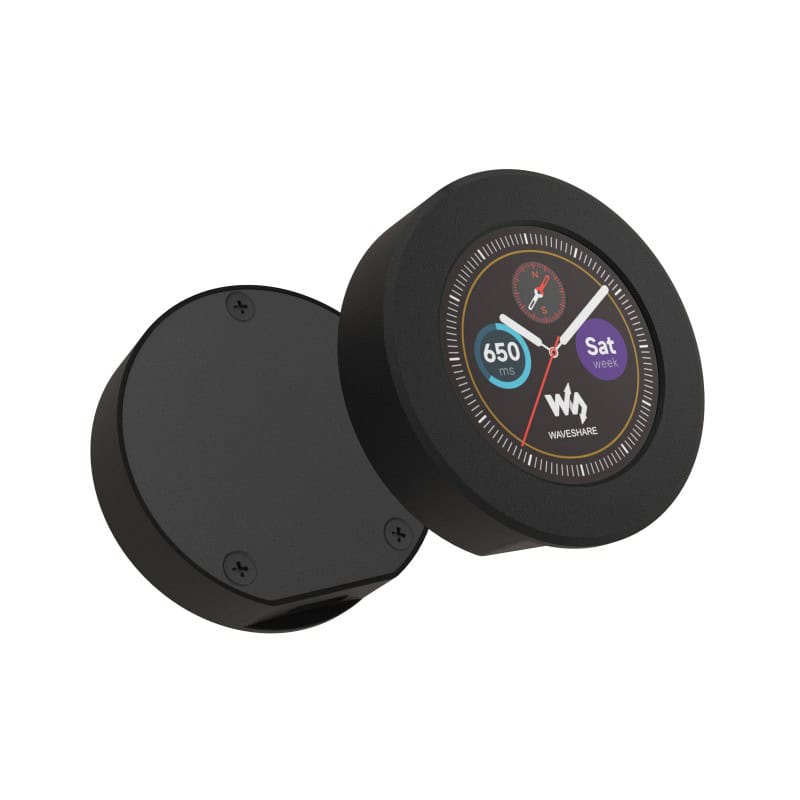

RP2350-LCD-1.28-B with CNC metal case
Features RP2350-LCD-1.28 is a low-cost, high-performance MCU board designed by Waveshare. Tiny size with onboard 1.28inch LCD round display, Li-ion battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope) and so on, adapting all GPIO and Debug pins, which makes it easy for you to develop and integrate it into products quickly.
Key features include:
- RP2350 microcontroller chip designed by Raspberry Pi in the United Kingdom
- Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard3 RISC-V processor, flexible clock running up to 150 MHz
- 520KB of SRAM, and 4MB of onboard Flash memory
- Type-C connector, keeps it up to date, easier to use
- Onboard 1.28inch 240×240 pixels 65K colorful IPS LCD display for clear color pictures
- Lithium battery recharge/discharge header, suitable for mobile devices
- All GPIO pins are adapted through 1.27 pitch female headers (There are 30 pins in total, but some pins have been connected to the internal circuit, please refer to the wiki for details when multiplexing)
- USB 1.1 with device and host support
- Low-power sleep and dormant modes
- Drag-and-drop programming using mass storage over USB
- 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 24 × controllable PWM channels
- Temperature sensor
- 12 × Programmable I/O (PIO) state machines for custom peripheral support

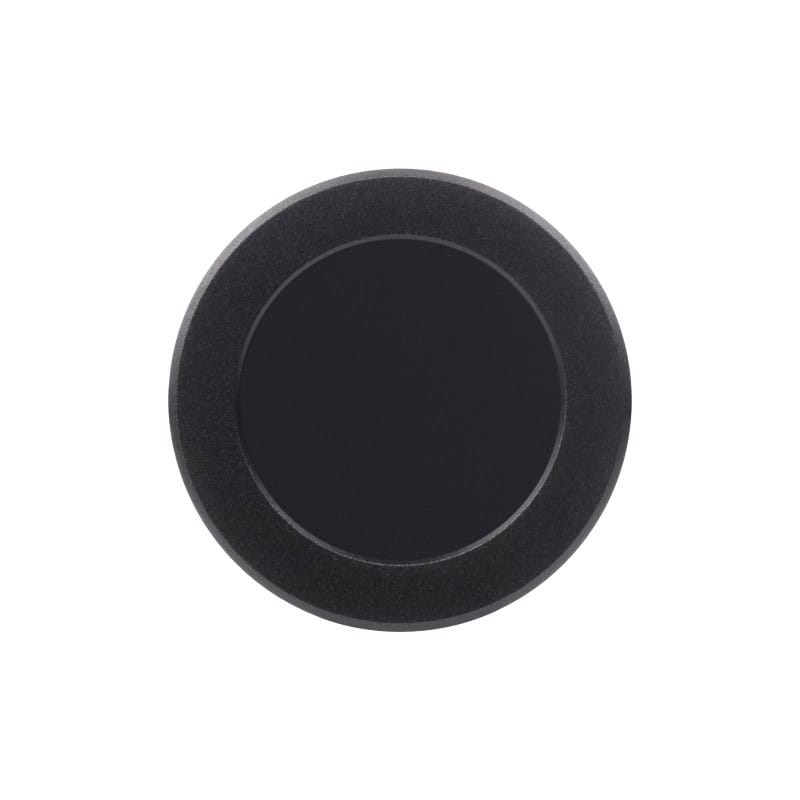

Optional for CNC metal case Adopts CNC metal case for fast heat dissipation, with Acrylic dull-polish bottom plate
C/C++, MicroPython support Comprehensive SDK, dev resources, tutorials to help you easily get started
Dual-core, dual-architecture The unique dual-core, dual-architecture capability of RP2350 allows users to choose between a pair of industry-standard Arm Cortex-M33 cores, and a pair of open-hardware Hazard3 cores, giving developers a chance to experiment with the RISC-V architecture in a stable, well-supported environment
30 × multi-function GPIO pins configurable pin function, allows flexible development and integration
What's On Board
- USB Type-C connector
for program burning, USB 1.1 with device and host support
- ETA6096
high efficiency Lithium battery recharge manager
- Battery Header
MX1.25 header, for 3.7V Lithium battery, allows recharging the battery and powering the board at the same time
- QMI8658
IMU, includes a 3-axis gyroscope and a 3-axis accelerometer
- 1.27mm pitch headers
Adapting all GPIO and Debug pins
- P25Q32SH-UXH-IR
4MB NOR-Flash
- RP2350
Dual-core Arm Cortex-M33 processor and dual-core Hazard3 RISC-V processor, up to 150 MHz operating frequency
- RESET Button
- BOOT Button
Press it when resetting to enter download mode
Outline dimensions
Package content: Weight: 0.028 kg
RP2350-LCD-1.28-B
RP2350-LCD-1.28-B x1
