www.waveshare.com/wiki/RP2350-Plus Waveshare RP2350-Plus Development Board, A Low-cost, High-performance Pico-like MCU Board Based On Raspberry Pi RP2350A Dual-core & Dual-architecture Microcontroller
RP2350 MCU Board Plus a Pico-like MCU board based on Raspberry Pi RP2350A
Compatible with most of the Raspberry Pi Pico add-on modules
Board specifications
- RP2350A microcontroller chip designed by Raspberry Pi in the United Kingdom
- Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard 3 RISC-V processor, flexible clock running up to 150 MHz
- 520KB of SRAM, options for 4MB/16MB on-board Flash memory
- Type-C connector, keeps it up to date, easier to use
- Lithium battery recharge/discharge header, suitable for mobile devices
- Onboard DC-DC chip MP28164, high efficiency DC-DC buck-boost chip, maximum 2A load current
- Castellated module allows soldering directly to carrier boards
- USB 1.1 with device and host support
- Low-power sleep and dormant modes
- Drag-and-drop programming using mass storage over USB
- 26 × multi-function GPIO pins
- 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
- Accurate clock and timer on-chip
- Temperature sensor
- Accelerated floating-point libraries on-chip
- 12 × Programmable I/O (PIO) state machines for custom peripheral support
C/C++, MicroPython support Comprehensive SDK, dev resources, tutorials to help you easily get started
Dual-core, dual-architecture Adopts dual-core Arm Cortex-M33 processor and dual-core Hazard 3 RISC-V processor, flexible clock running up to 150 MHz
26 × multi-function GPIO pins configurable pin function, allows flexible development and integration

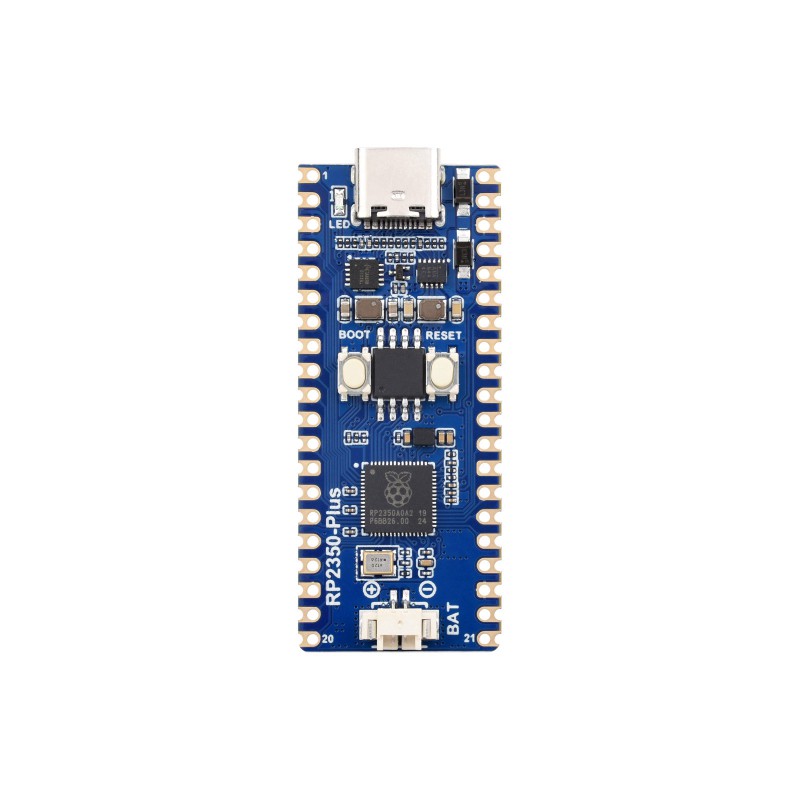

What's On Board
- LED
user LED (not power indicator)
- USB Type-C connector
- ETA6096
high efficiency Lithium battery recharge manager
- MP28164
high efficiency DC-DC buck-boost chip
- BOOT button
press it when resetting to enter download mode
- On-board flash memory
4MB: W25Q32JVSSIQ
16MB: W25Q128JVSIQ
- RESET button
- RP2350A
Dual-core and dual-architecture design, up to 150 MHz operating frequency
- Battery header
MX1.25 header, for 3.7V Lithium battery, allows recharging the battery and powering the board at the same time

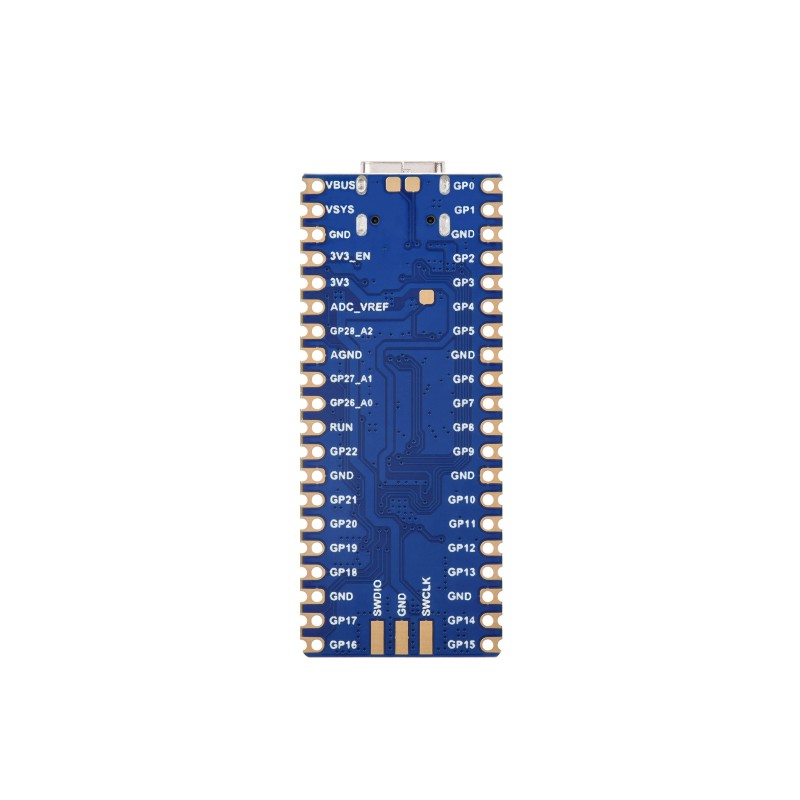

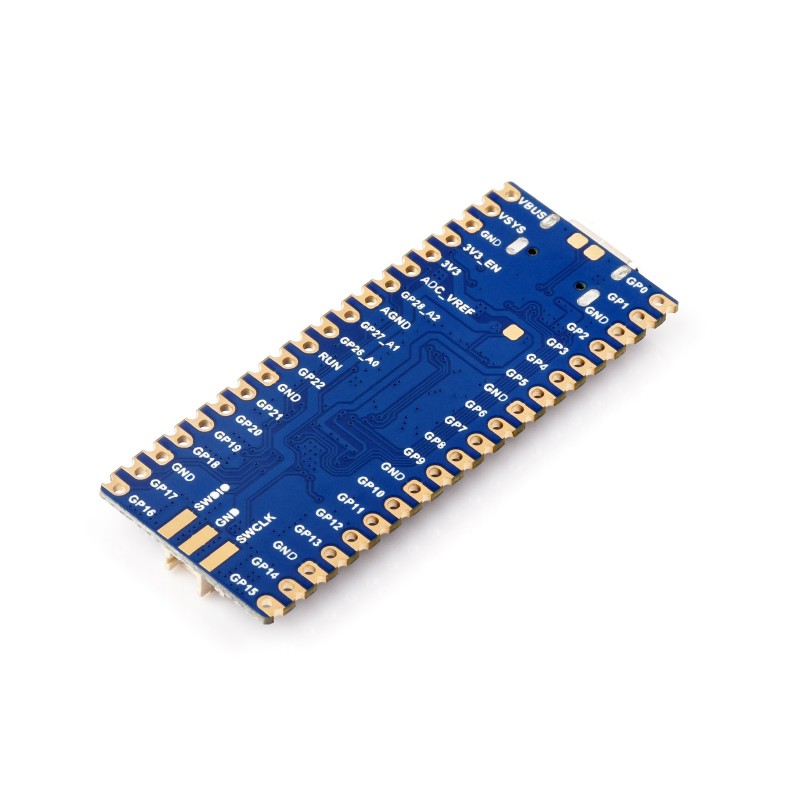

- Pinout
compatible with Raspberry Pi Pico 2
- USB test points
connecting to USB interface
- BOOT test point
connecting to BOOT button
- DEBUG points
Outline dimensions
Package content: Weight: 0.004 kg
RP2350-Plus
OPTIONS RP2350-Plus x1
