SKU: 29453
Part No.: RP2350-One
Brand: Waveshare
Korisne informacije:
www.waveshare.com/wiki/RP2350-One Waveshare RP2350-One, Onboard PCB Type-A Plug, 4MB Flash MCU Board Based On Raspberry Pi RP2350A Dual-core & Dual-architecture Microcontroller

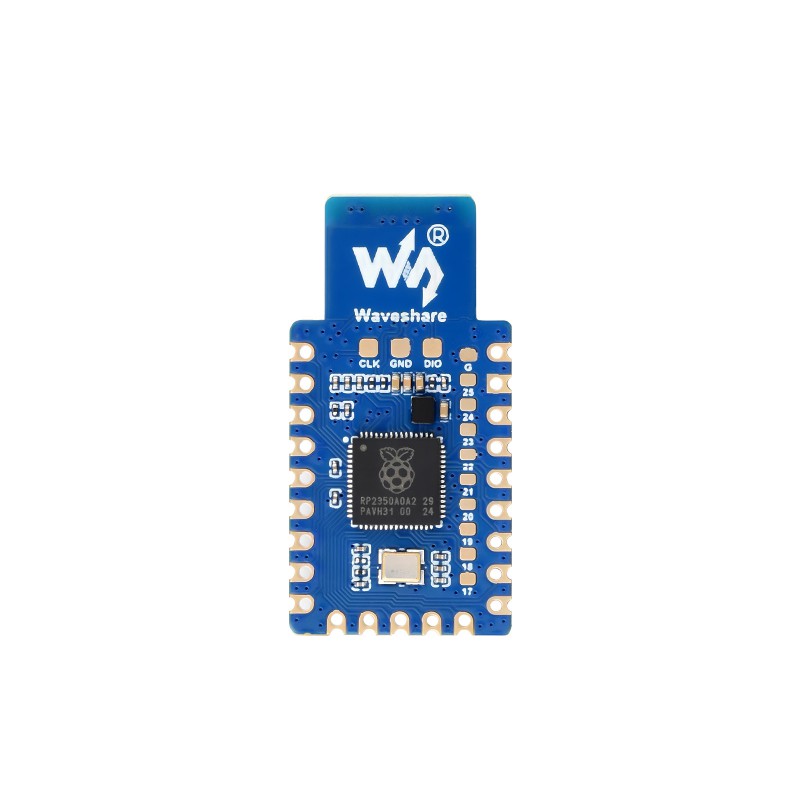

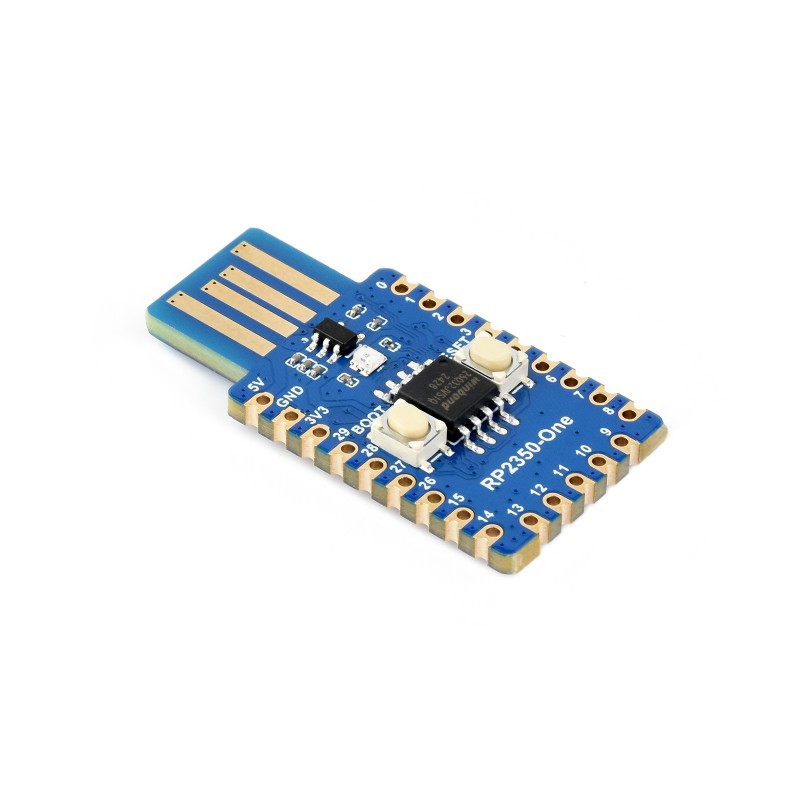

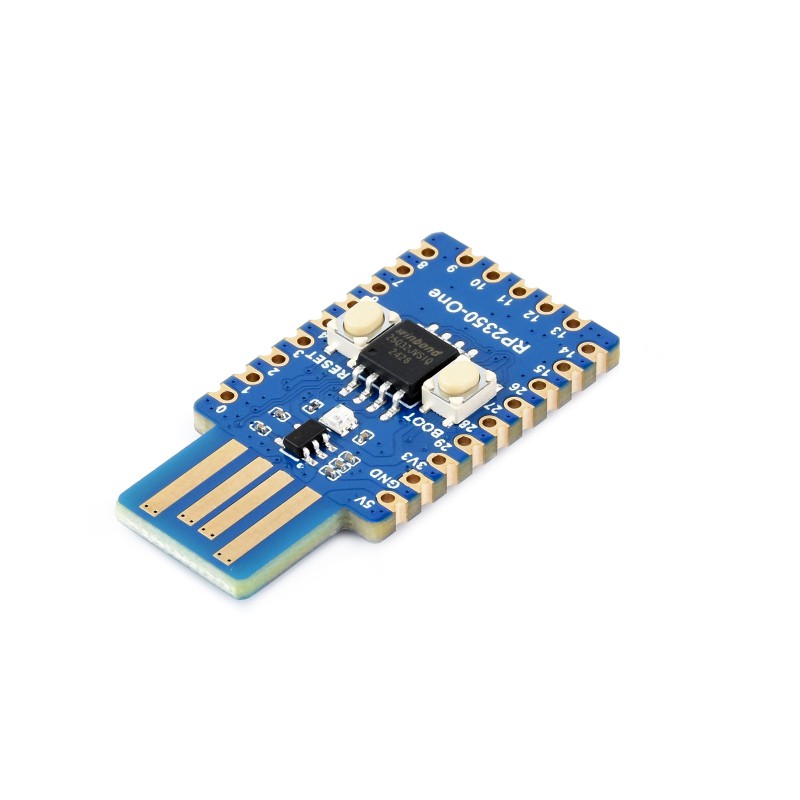

RP2350-One a Pico-like MCU board based on Raspberry Pi RP2350A
Castellated Module, Suitable For SMD Applications
Board specifications
- RP2350A microcontroller chip designed by Raspberry Pi in the United Kingdom
- Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard 3 RISC-V processor, flexible clock running up to 150 MHz
- 520KB of SRAM, and 4MB of on-board Flash memory
- Onboard PCB Type-A male port, plug and play, easy to use
- Castellated module allows soldering direct to carrier boards
- USB 1.1 with device and host support
- Low-power sleep and dormant modes
- Drag-and-drop programming using mass storage over USB
- 29 × multi-function GPIO pins (20× via edge pinout, others via solder points)
- 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
- Accurate clock and timer on-chip
- Temperature sensor
- Accelerated floating-point libraries on-chip
- 12 × Programmable I/O (PIO) state machines for custom peripheral support
Onboard Type-A Plug Plug And Play, No Additional Cables Required
C/C++, MicroPython support Comprehensive SDK, dev resources, tutorials to help you easily get started
Dual-core, dual-architecture Adopts dual-core Arm Cortex-M33 processor and dual-core Hazard 3 RISC-V processor, flexible clock running up to 150 MHz
29 × multi-function GPIO pins configurable pin function, allows flexible development and integration

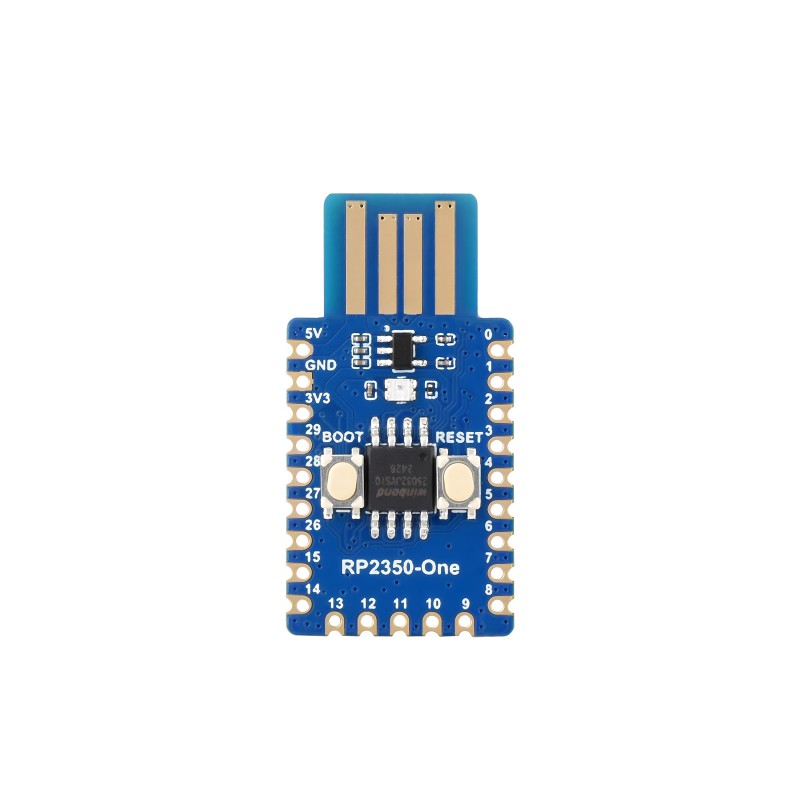

What's On Board
- PCB Type-A plug
- RT9013-33GB
500mA low dropout, low noise, ultra-fast LDO
- WS2812
RGB LED
- BOOT button
- W25Q32JVSSIQ
4MB NOR-Flash
- RESET button
- RP2350A
Dual-core and dual-architecture design, up to 150 MHz operating frequency
- RP2350A pins
10x solder points, including 9x GPIO pins
- Debug pins
Outline dimensions
Package content: Weight: 0.006 kg
RP2350-One x1
