Konektori, žice, protobord SKU: 28822
Part No.: RP2350-LCD-0.96
Brand: Waveshare
Korisne informacije:

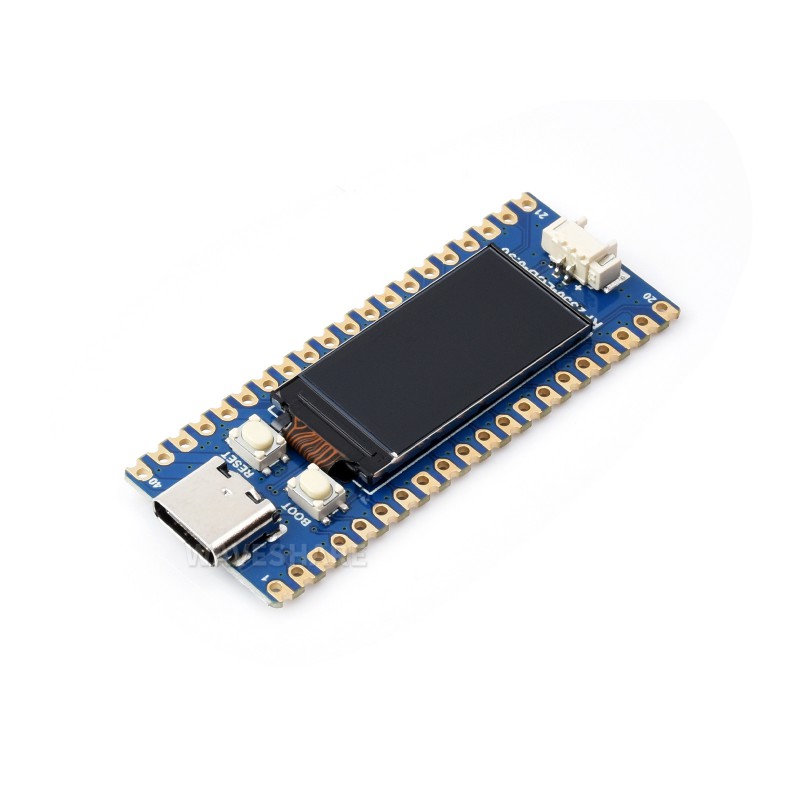

www.waveshare.com/wiki/RP2350-LCD-0.96 Waveshare RP2350-LCD-0.96 Development Board, With 0.96inch LCD Display, 160×80 Resolution, Based On RP2350A Dual-core & Dual-architecture Microcontroller
RP2350 MCU Board with 0.96inch LCD a Pico-like MCU board based on Raspberry Pi RP2350A
Compatible with most of the Raspberry Pi Pico add-on modules
Board specifications RP2350-LCD-0.96 is a low-cost, high-performance Pico-like MCU board with flexible digital interfaces. It incorporates Raspberry Pi's
RP2350A microcontroller chip, the same as the one on Raspberry Pi Pico 2. For software development, either Raspberry Pi's C/C++ SDK, or the MicroPython is available, which makes it easy for you to get started, and integrate it into end products quickly.
In addition, there's also an onboard 0.96inch IPS display, Lithium battery recharge/discharge header, and high efficiency DC-DC buck-boost chip.
Key features include:
- RP2350A microcontroller chip designed by Raspberry Pi in the United Kingdom
- Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard 3 RISC-V processor, flexible clock running up to 150 MHz
- 520KB of SRAM, and 4MB of on-board Flash memory
- USB-C connector, keeps it up to date, easier to use
- 0.96inch 160×80 pixels 65K colorful IPS LCD display
- Lithium battery recharge/discharge header, suitable for mobile devices
- Onboard DC-DC chip MP28164, high efficiency DC-DC buck-boost chip, maximum 2A load current
- Castellated module allows soldering directly to carrier boards
- USB 1.1 with device and host support
- Low-power sleep and dormant modes
- Drag-and-drop programming using mass storage over USB
- 26 × multi-function GPIO pins
- 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
- Accurate clock and timer on-chip
- Temperature sensor
- Accelerated floating-point libraries on-chip
- 12 × Programmable I/O (PIO) state machines for custom peripheral support
Support C/C++, MicroPython Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started
Dual-core, dual-architecture Adopts dual-core Arm Cortex-M33 processor and dual-core Hazard 3 RISC-V processor, flexible clock running up to 150 MHz
26 × multi-function GPIO pins configurable pin function, allows flexible development and integration

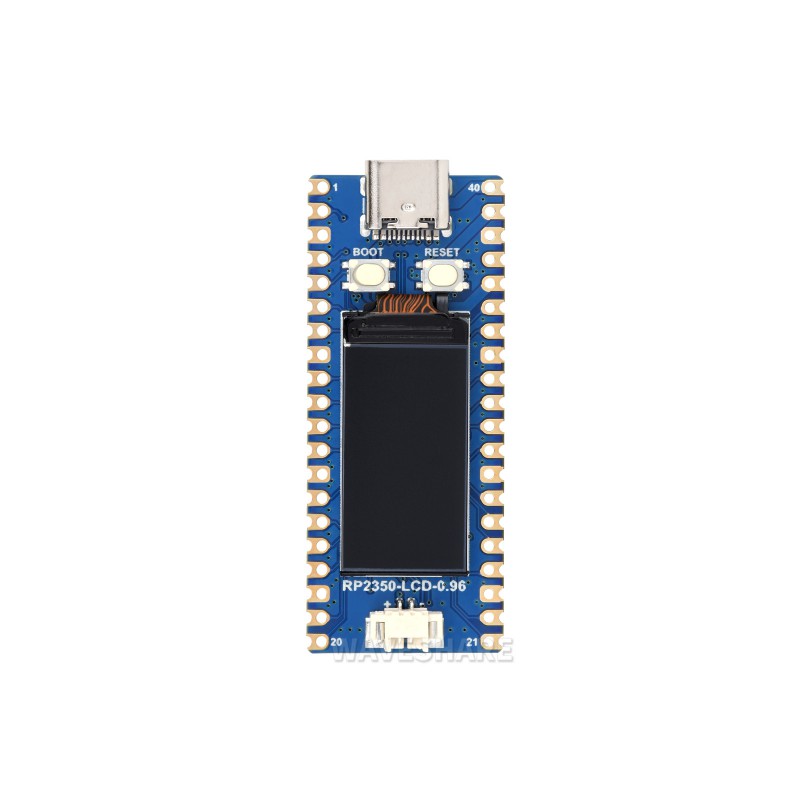

What's On Board
- USB Type-C connector
for program downloading, supports USB1.1 hosts and slave devices
- BOOT button
- RESET button
- 0.96inch IPS LCD display
160 × 80 pixels, 65K colorful
- Battery header
MX1.25 header, for 3.7V Lithium battery, allows recharging the battery and powering the board at the same time
- MP28164
high efficiency DC-DC buck-boost chip
- ETA6096
high efficiency Lithium battery recharge manager

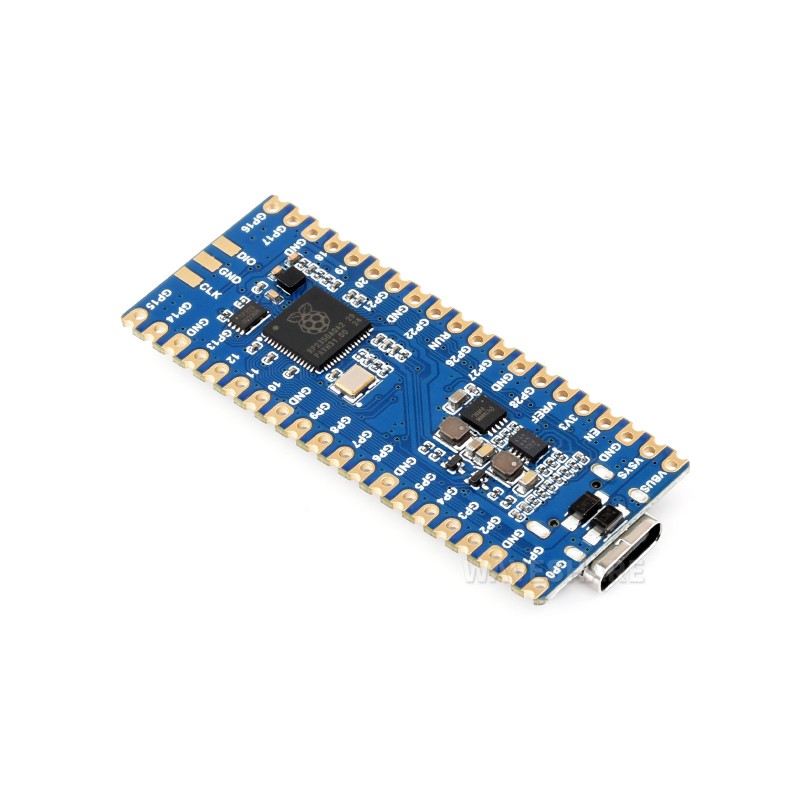

- RP2350A
Dual-core and dual-architecture design, up to 150 MHz operating frequency
- P25Q32SH-UXH-IR
4MB NOR-Flash
- DEBUG points

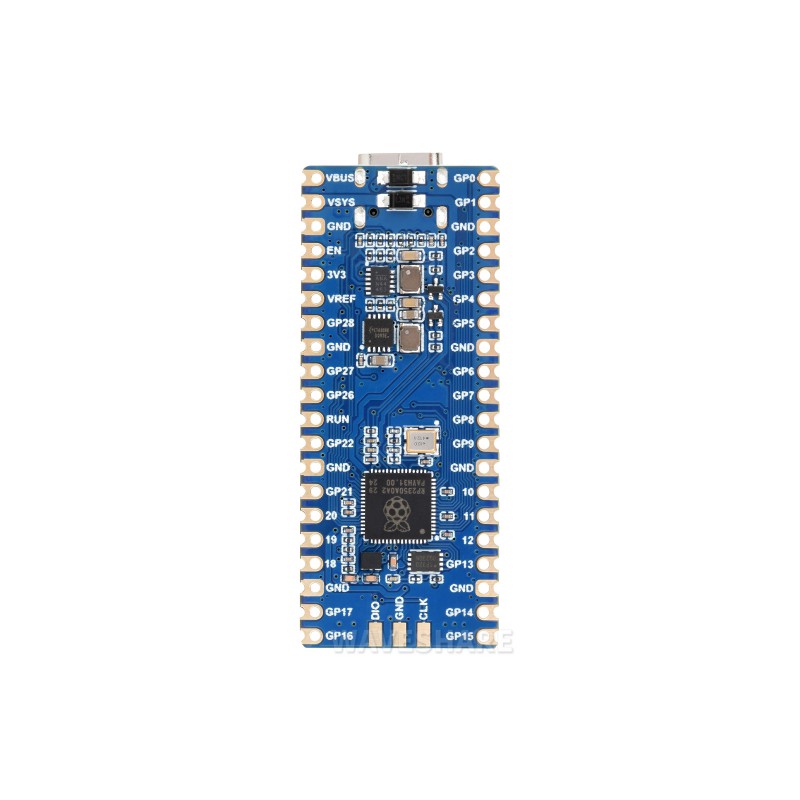

- Pinout
compatible with Raspberry Pi Pico 2
Outline dimensions
Package content: Weight: 0.005 kg
RP2350-LCD-0.96
- RP2350-LCD-0.96 x1
1
