SKU: 24665
Part Number: RP2040-Tiny-Kit
Brand: Waveshare
Korisne informacije:
www.waveshare.com/wiki/RP2040-Tiny Konektori, žice, protobord Features
- RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom.
- Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz.
- 264KB of SRAM, and 2MB of onboard Flash memory.
- Onboard FPC 8PIN connector, adapting USB Type-C port via an adapter board.
- Castellated module allows soldering directly to carrier boards.
- USB 1.1 with device and host support.
- Low-power sleep and dormant modes.
- Drag-and-drop programming using mass storage over USB.
- 20 × multi-function GPIO pins.
- 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels.
- Accurate clock and timer on-chip.
- Temperature sensor.
- Accelerated floating-point libraries on-chip.
- 8 × Programmable I/O (PIO) state machines for custom peripheral support.
Waveshare RP2040-Tiny Development Board, Raspberry Pi Microcontroller Development Board, Based On Official RP2040 Dual Core Processor, USB Port Adapter Board Optional

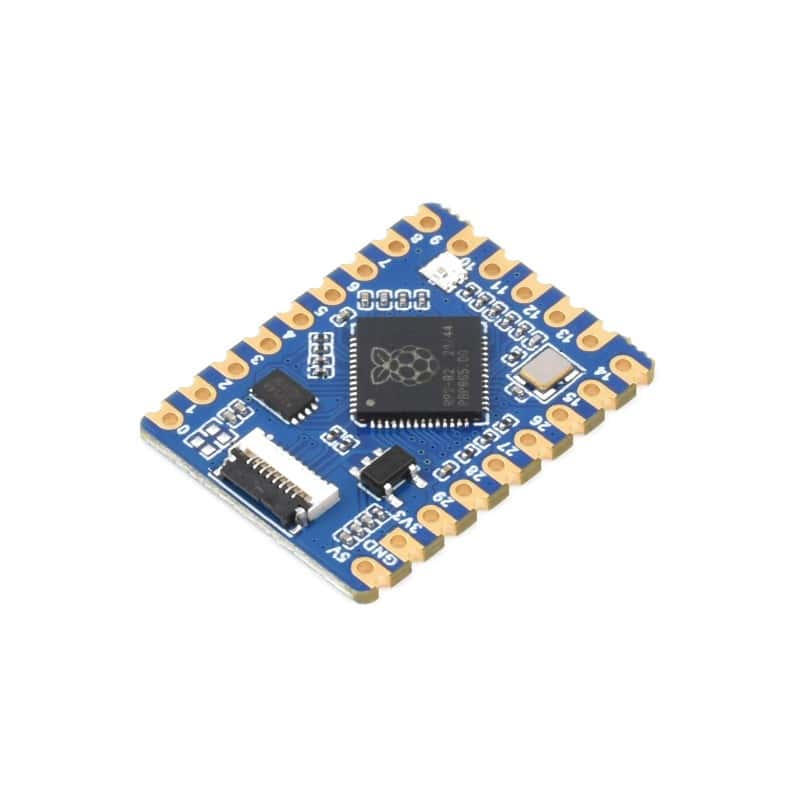

RP2040-Tiny Development Board
Based On RP2040, USB Port Adapter Board Optional
Board Specifications
- RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
- Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
- 264KB of SRAM, and 2MB of onboard Flash memory
- Onboard FPC 8PIN connector, adapting USB Type-C port via adapter board
- Castellated module allows soldering direct to carrier boards
- USB 1.1 with device and host support
- Low-power sleep and dormant modes
- Drag-and-drop programming using mass storage over USB
- 20 × multi-function GPIO pins
- 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
- Accurate clock and timer on-chip
- Temperature sensor
- Accelerated floating-point libraries on-chip
- 8 × Programmable I/O (PIO) state machines for custom peripheral support
Version Options

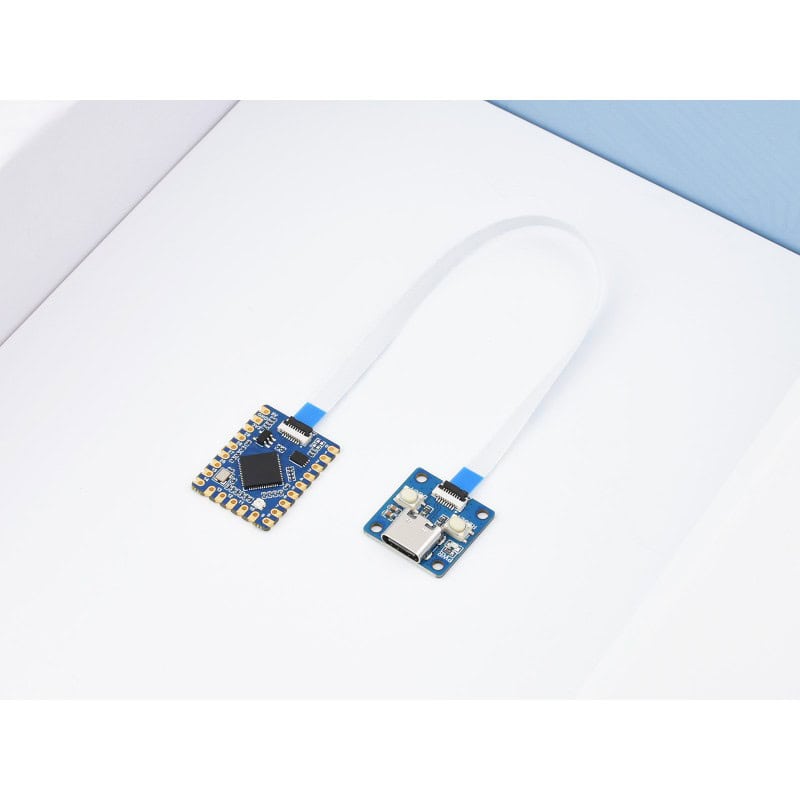

RP2040-Tiny-Kit Development board + RP2040-Tiny-Adapter + FPC cable
RP2040-Tiny Support C/C++, MicroPython, Arduino
Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started
Compact Size, Separate Adapter Board Design
Castellated Holes With Immersion Gold Design, Highly Integrated Packaging, Easy To Embed Into Various Product Applications

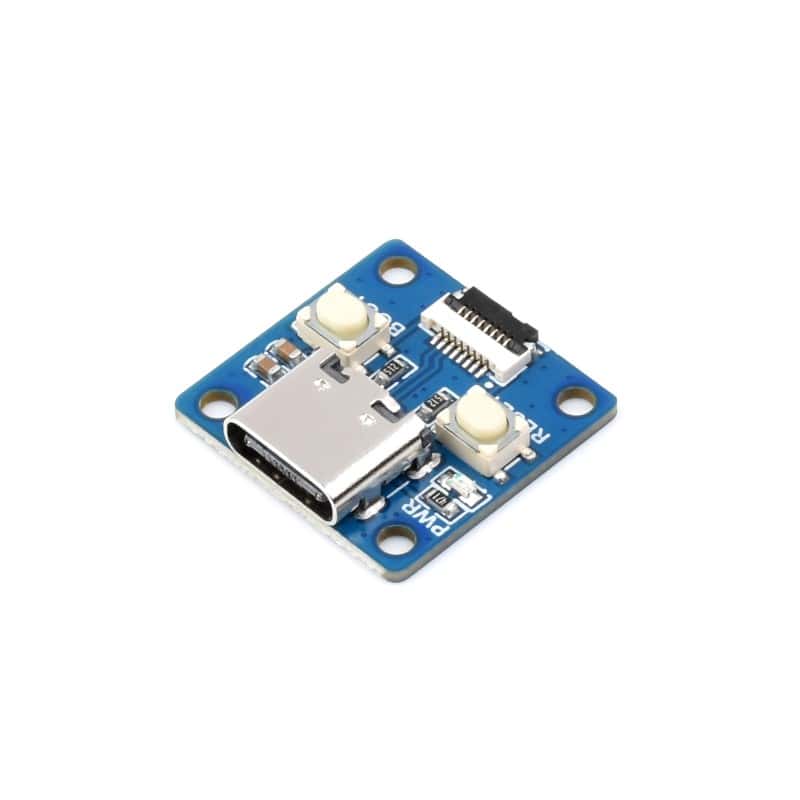

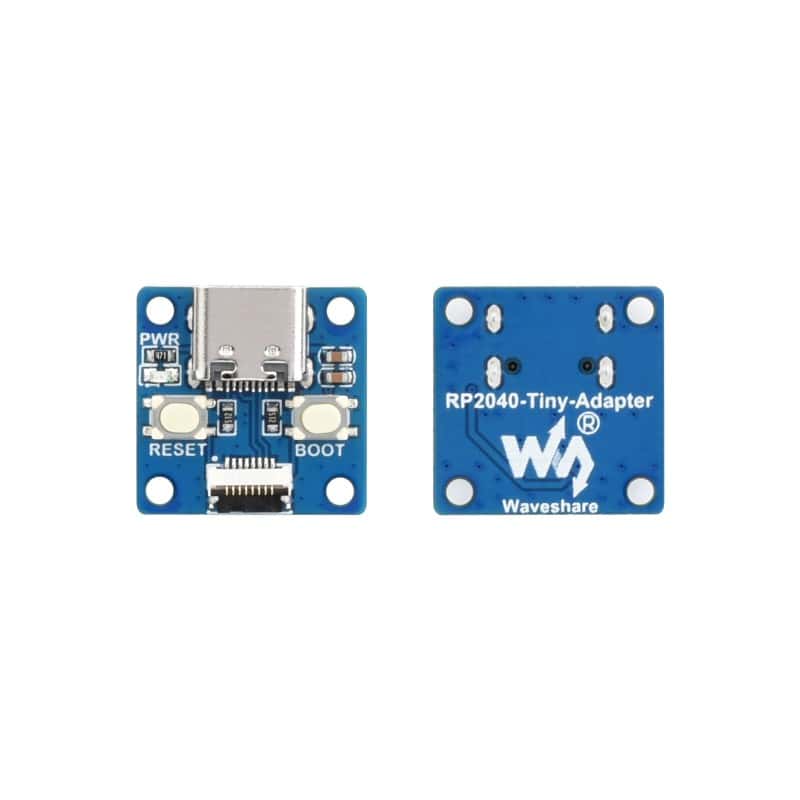

Adapting USB Type-C Port Via Adapter Board
Dual-Core Arm Processor
Dual-Core Arm Cortex M0+ Processor, Flexible Clock Running Up To 133 MHz
20 × Multi-Function GPIO Pins
Configurable Pin Function, Allows Flexible Development And Integration

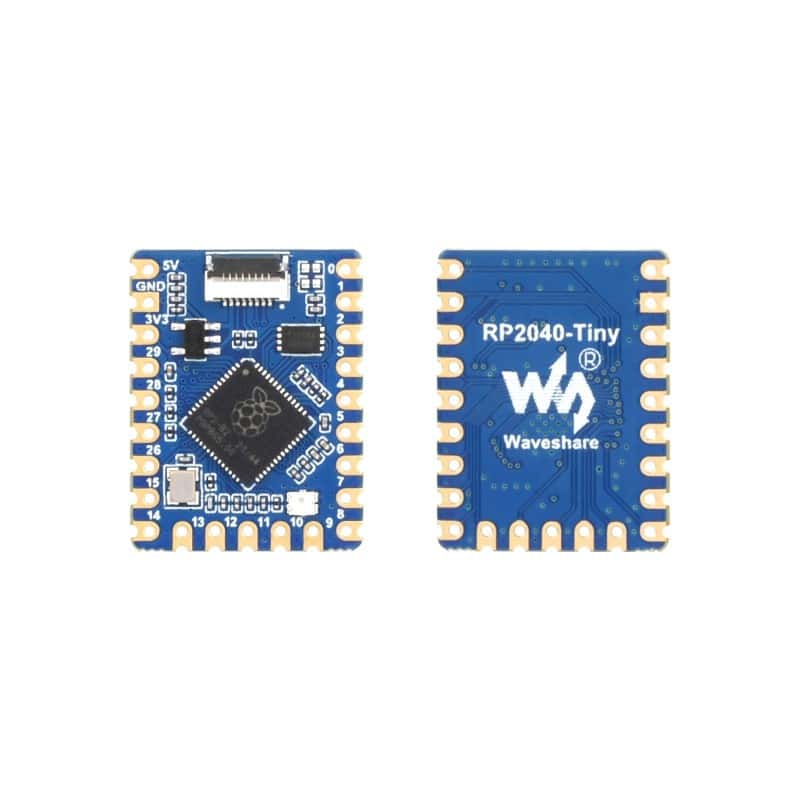

* Reserved two 0402 resistor pads for user mode selection, you need solder the corresponding resistors or short the pads and complete the corresponding programming. What's On Board
- FPC connector
0.5mm pitch 8PIN
- RT9193-33
500mA low dropout, low noise, ultra-fast LDO
- W25Q16JVUXIQ
2MB NOR-Flash
- RP2040
dual-core processor, up to 133MHz operating frequency
- WS2812
RGB LED Indicator
Product Show
Outline Dimensions
PACKAGE CONTENT
Weight: 0.008 kg
- RP2040-Tiny x1
- OPTIONS RP2040-Tiny-Adapter x1 (INCLUDED)
- OPTIONS 8PIN FPC cable ~15cm x1 (INCLUDED)
