SKU: 26379
Part Number: PICO-Cam-A
Brand: Waveshare
Korisne informacije: www.waveshare.com/wiki/PICO-Cam-A

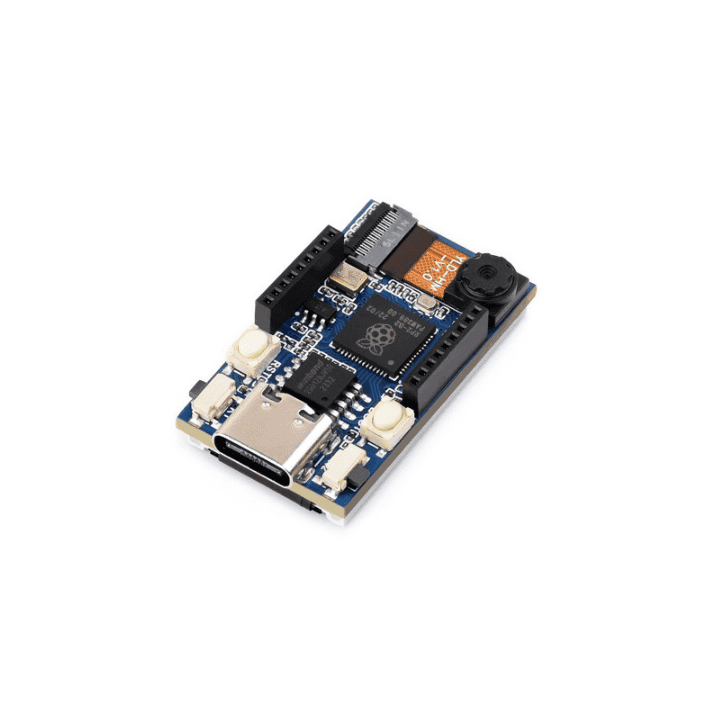

RP2040 Microcontroller Camera Development Board, Onboard HM01B0 Grayscale Camera And 1.14inch IPS LCD Display, Suitable For Applications Such As Image Information Capture
RP2040 Camera Development Board
Based on Raspberry Pi RP2040
Features
PICO-CAM-A is a cost-effective, high-performance MCU camera board based on Raspberry Pi RP2040, onboard HM01B0 grayscale camera and 1.14inch IPS LCD display, suitable for application scenarios such as image information capture.
Key features include:
- RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
- Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
- 264KB of SRAM, and 16MB of onboard Flash memory
- Type-C connector, keeps it up to date, easier to use
- Onboard HM01B0 grayscale camera
- Onboard 1.14inch IPS LCD display, 240×135 resolution, 65K color
- USB 1.1 with device and host support
- Low-power sleep and dormant modes
- Drag-and-drop programming using mass storage over USB
- 13 × multi-function GPIO pins
- Accurate clock and timer on-chip
- Temperature sensor
- Accelerated floating-point libraries on-chip
- 8 × Programmable I/O (PIO) state machines for custom peripheral support
Supports C/C++
Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started
Onboard Camera
Adopts HM01B0 Grayscale Camera, Suitable For Applications Such As Image Information Capture
Application Example
Captures Greyscale Image Information Via Onboard Greyscale Camera
Dual-Core Arm Processor
Dual-Core Arm Cortex M0+ Processor, Flexible Clock Running Up To 133 MHz
18 × GPIO Pins
Includes 13 × Multi-Function GPIO Pins, Configurable For Pin Function, Allowing Flexible Development And Integration

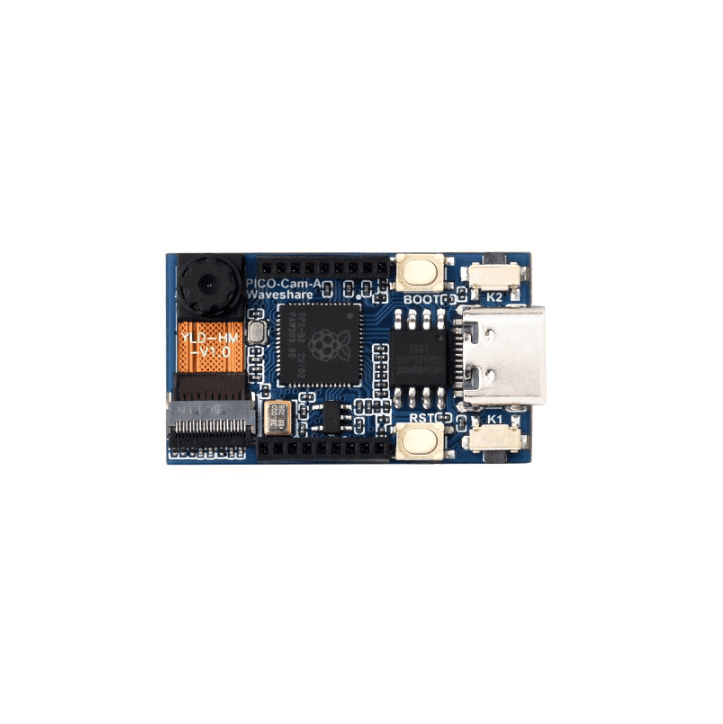

What's On Board
- USB Type-C connector
- User button
- BOOT button
Press it when resetting to enter download mode
- RESET button
- GPIO pins
- RP2040
dual-core processor, up to 133MHz operating frequency
- HM01B0 greyscale camera
- W25Q128
16MB NOR-Flash

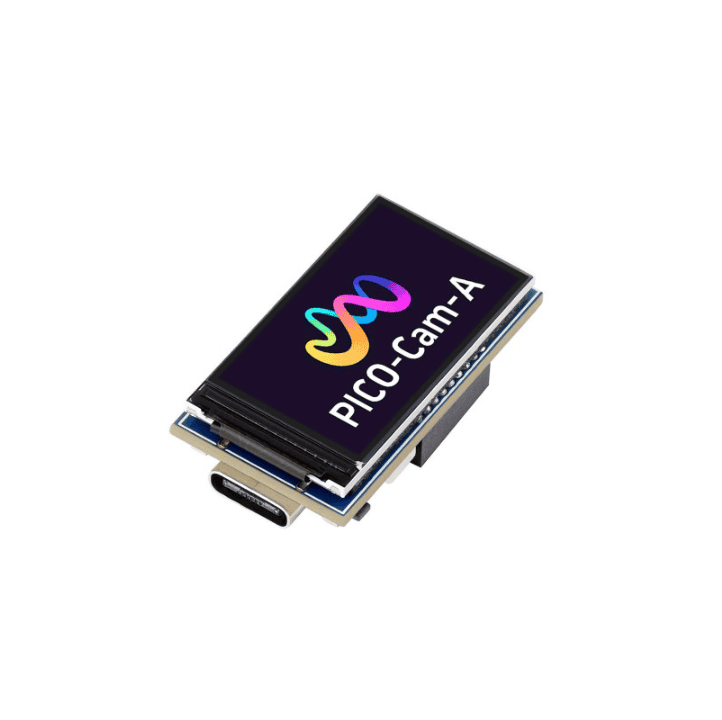

- 1.14inch LCD
240×135 pixels, 65K Color
Outline Dimensions
- PACKAGE CONTENT
Weight: 0.006 kg
PICO-Cam-A x1
