SKU: 26371
Part Number: RP2040-Touch-LCD-1.28-B
Brand: Waveshare
Korisne informacije:
www.waveshare.com/wiki/RP2040-Touch-LCD-1.28
RP2040 Microcontroller Development Board, with 1.28inch Round Touch LCD, Compact size, Accelerometer And Gyroscope Sensor, With CNC Metal Case
RP2040-Touch-LCD-1.28-B
Based on Raspberry Pi RP2040, adopts CNC metal case
Features
RP2040-Touch-LCD-1.28-B is a low-cost, high-performance MCU board designed by Waveshare, tiny size, with onboard 1.28inch capacitive touch display, Li-ion battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), and so on, which makes it easy for you to develop and integrate it into products quickly.
Key features include:
- RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
- Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
- 264KB of SRAM, and 16MB of on-board Flash memory
- Type-C connector, keeps it up to date, easier to use

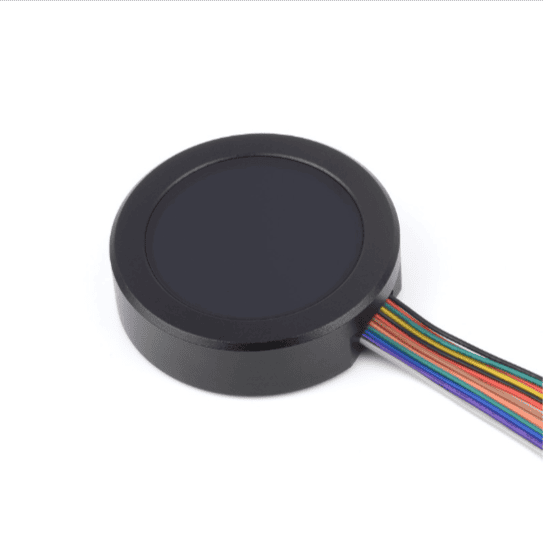

- Onboard 1.28inch capacitive touch display, 240×240 resolution, 65K color
- Lithium battery recharge/discharge header, suitable for mobile devices
- Adopts CNC metal case with Acrylic dull-polish bottom plate
- USB 1.1 with device and host support
- Low-power sleep and dormant modes
- Drag-and-drop programming using mass storage over USB
- Accurate clock and timer on-chip
- Temperature sensor
- 6 × GPIO pin via SH1.0 connector
Small Size, Touch More Possibilities
Suitable For Various Smart Devices Development, Can Realize Human-Computer Interaction Function

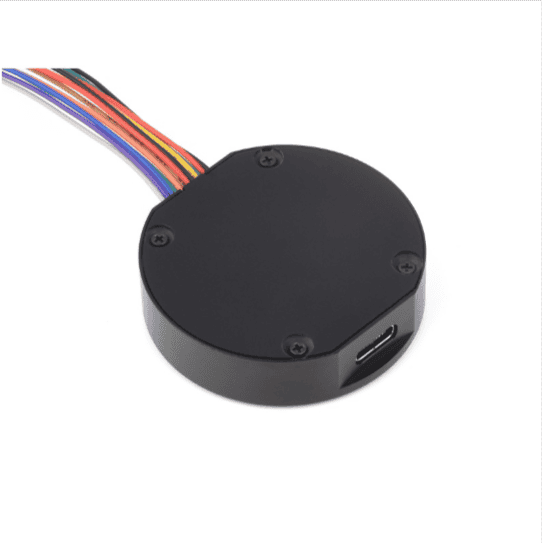

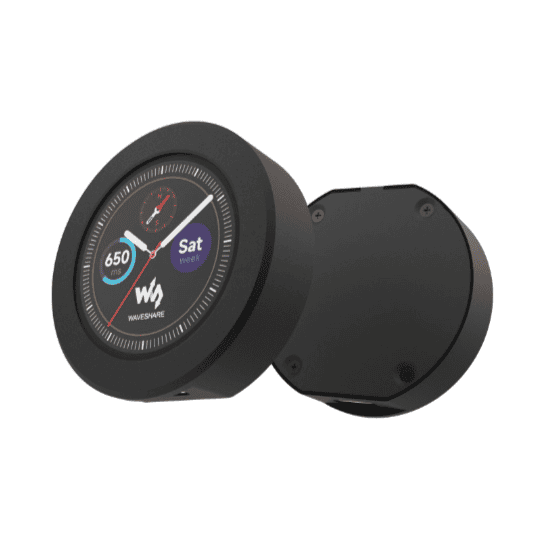

CNC Metal Case
Adopts CNC Metal Case With Acrylic Dull-Polish Bottom Plate
Dual-Core Arm Processor
Dual-Core Arm Cortex M0+ Processor, Flexible Clock Running Up To 133 MHz
Support C/C++, MicroPython, Arduino
Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started
What's On Board
- USB Type-C connector
supports USB1.1 hosts and slave devices
- ETA6096
high-efficiency Lithium battery recharge manager
- RT9013-33GB
500mA low dropout, low noise, ultra-fast LDO
- W25Q128JVSIQ
16MB NOR-Flash
- RP2040
dual-core processor, up to 133MHz operating frequency
- QMI8658
6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer.
- BOOT button
Press it when resetting to enter download mode
- RESET button
- MX1.25 battery header
MX1.25 2P connector, for 3.7V Lithium battery, supports charging and discharging
Pin Definition
Outline Dimensions
- PACKAGE CONTENT
Weight: 0.032 kg
- RP2040-Touch-LCD-1.28-B x1
- SH1.0 12PIN cable x1
